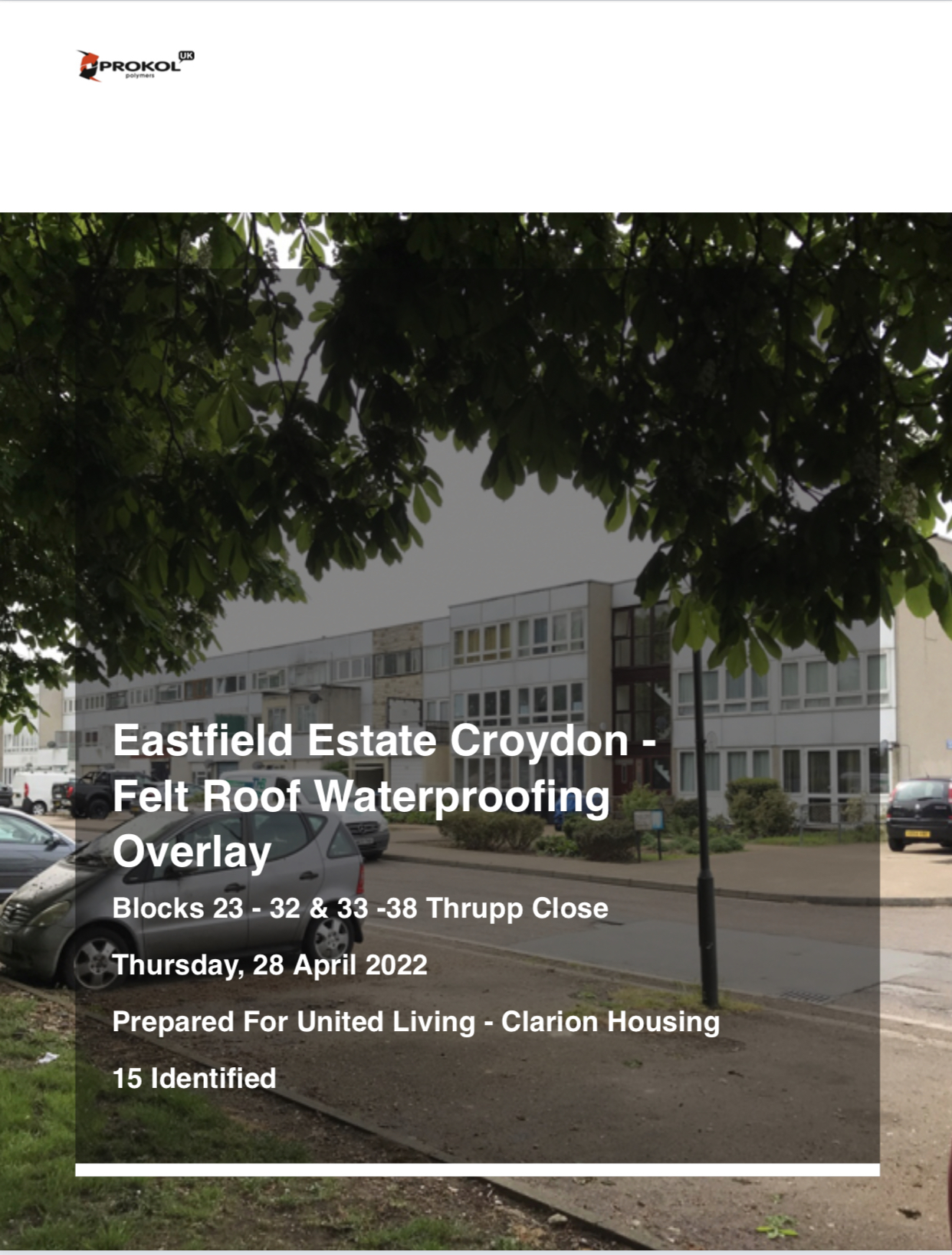

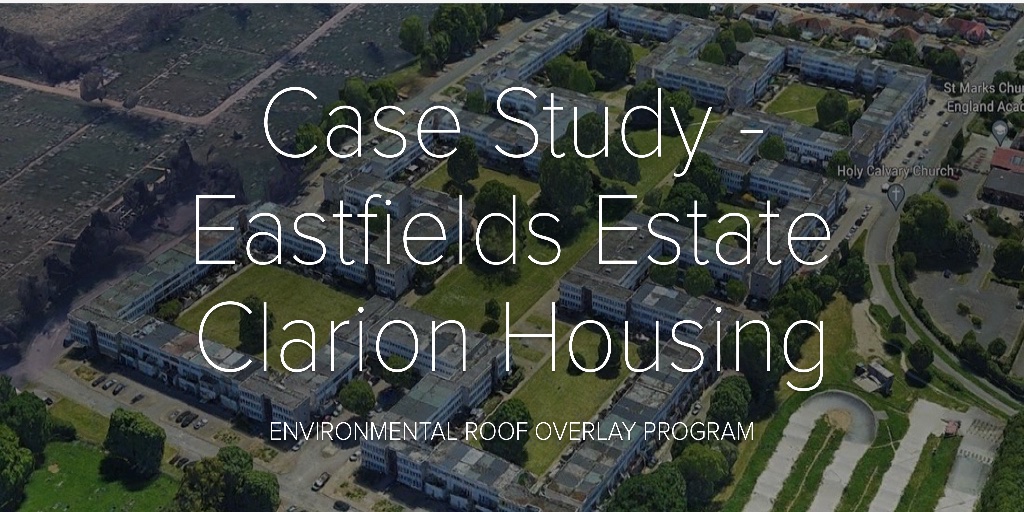

Case Study - Eastfields Estate Clarion Housing Environmental Roof overlay program

Prokol 260FR Seamless Liquid Waterproofing & Its Extremeley Unique Benifits

Prokol Rocathaan 260 FR is fast cure (20 seconds) fully moisture tolerant, Hydrophobic Pure Polymer seamless spray hotspray liquid membrane.

( No Hotworks)

On overlay applications it’s a single one coat membrane system 3mm dry film thickness or DFT, the 260FR has 1950% elongation for constant bi lateral elongation in extreme temperature conditions, from - 50 degrees to over 250 *C. It has warrington fire certification to EN13501 -5 & T4 system certification when used in thermal upgrade applications, however the 260FR has been air tested to show the seamless membrane will slow down the energy release massivley as part of the membranes air tightness physical properties.

Also the membrane is fully breathable so any trapped moisture is released as part per million vapour through the membrane, 260 FR also has independent KIWA certification for accelerated UV degredation through standing ponding water over 25 with zero effect. The 260FR pure polymer actually out performed KIWA test equipment, it’s a test most liquids will never pass.

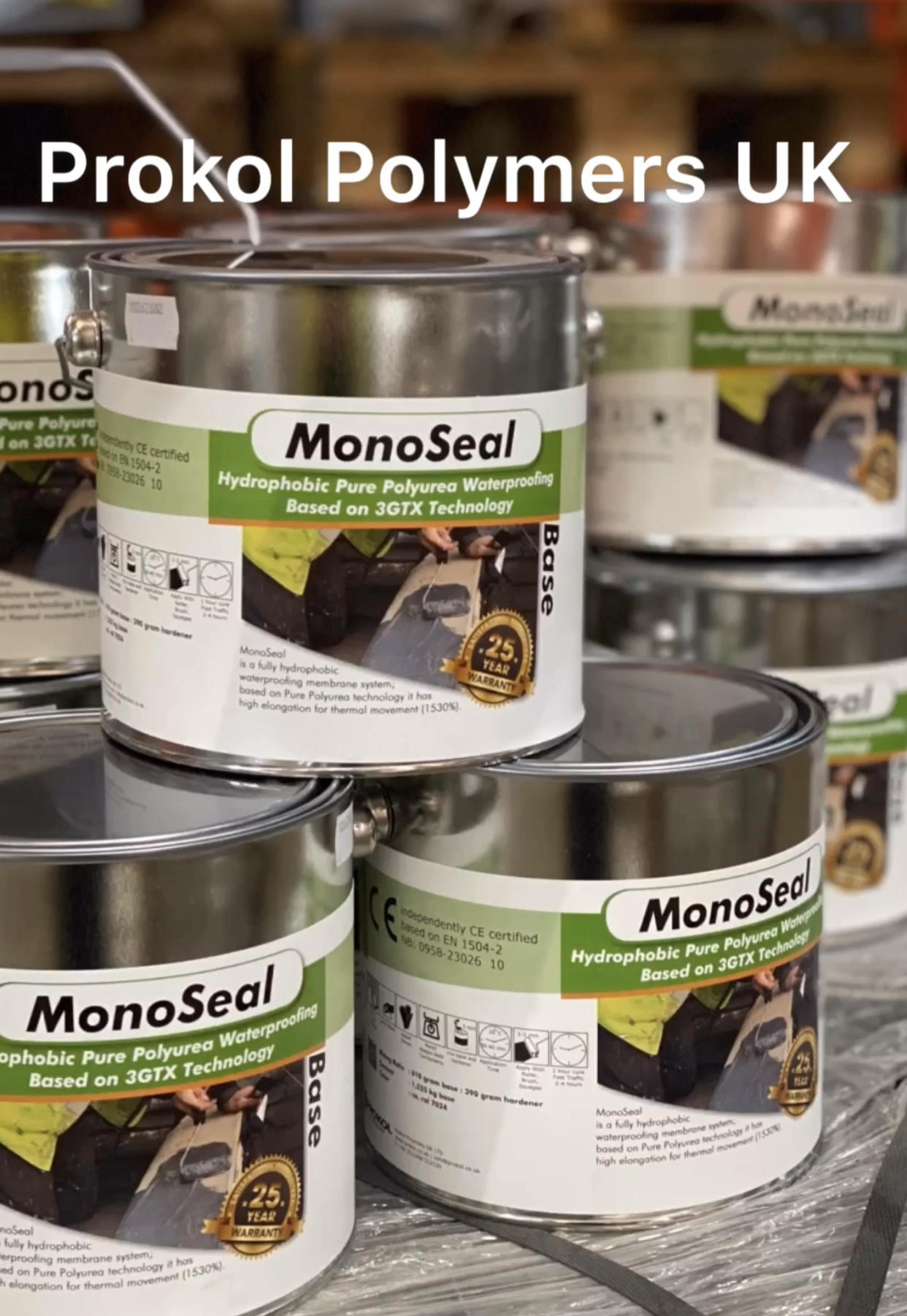

MonoSeal Is A Cold Applied Hydrophobic Pure Polymer

About Prokol MonoSeal

MonoSeal from Prokol is a cold applied fully hydrophobic roofing system with the same DNA as 260FR, MonoSeal is also fully certified by Warrington Fire to EN13501-5 & T4 as part of a composite thermal upgrade application. The only difference is MonoSeal is applied by Roller and squeegee, still creating a seamless tanking application with zero VOC's

All Prokol Products Are Manufactured Using Green Chemistry

All Prokol products are manufactured using green chemistry, the seamless roof membranes have also been air tightness tested. This means that although the waterproofing membranes are fully breathable, they will retain energy in the building longer than any other product.

Key Sustainability Facts To Remember About Prokol 260 FR Pure Polymer

The Prokol 260 FR membrane is totally un - biodegradable but fully recyclable what’s this means is when comparing this system to others you would replace other systems up to seven times compared to that of a single whole of of life Prokol prokol pure polymer membrane. No regular waste to landfill, zero carbon emissions returning to applications.

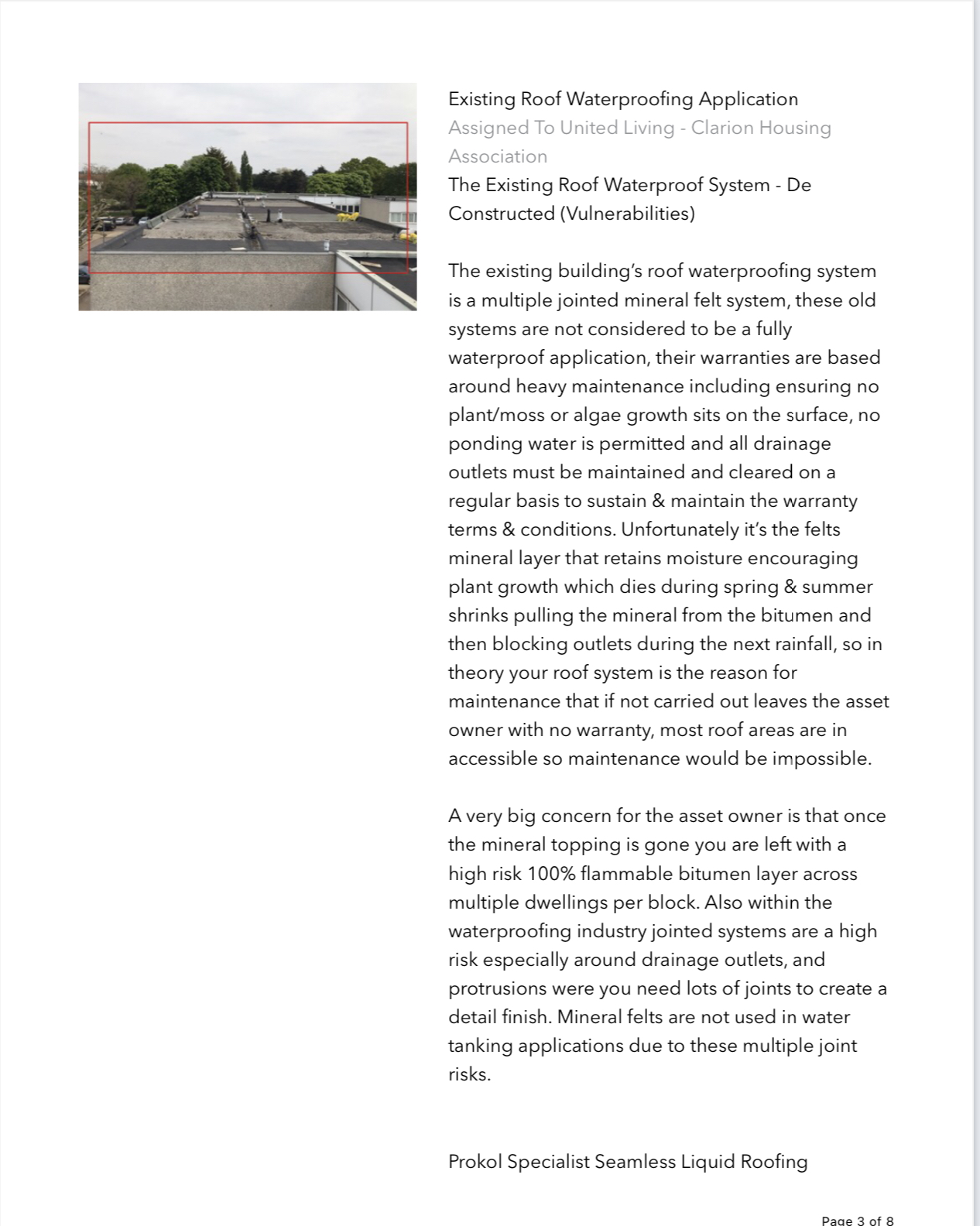

Existing Roof History

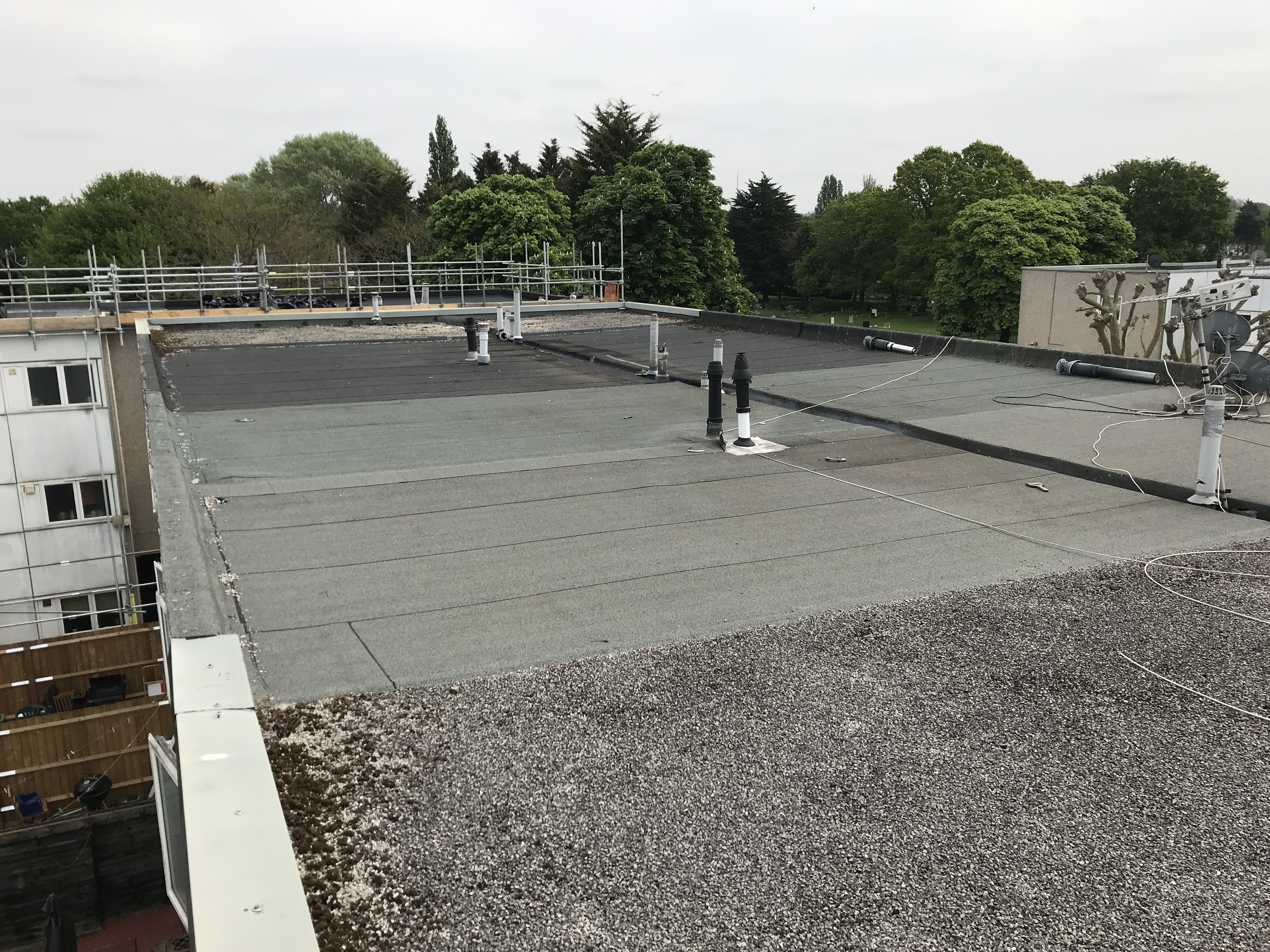

The existing roofing waterproofing system on the buildings at Eastfields Estate comprised of a multiple jointed mineral felt system over asphalt, it had numerous repair attempts and patching which we believe was to chase around water ingress problems. Prokol are unaware if the asset owner was aware that to retain any felt waterproofing system warranty you must service & maintain the felt, this required maintenance would have been impossible as the roof membrane had a bed layer of stone aggregate applied over the entire roof system so maintenance would be impossible making the warranty null and void.

Mineral Felt Requires Ongoing Maintenance & Strict Maintenance Records Which Are Mandatory Requirement - Failure To Comply Means The System Warranty Is Void

All other roof membrane systems require regular routine maintenance to support the waterproofing membranes life span, this includes but is not limited to- clearing the roof water outlets - remove any moss/algae or plant growth etc. This is to avoid dying plant growth in warmer months pulling when dying and shrinking the fire protective aggregate from the 98% flammable oil bitumen base that felt comprises of. As you can see maintenance is paramount to the longevity and warranty of any felt system. Felt or bitumen as a product is classed as a frozen liquid which in turn reverts back to liquid state at high temperatures. The aggregate also acts as a protective layer (when no foot traffic is applied) against the heat, unfortunately as a porous profile, felt holds moisture longer encouraging the type of plant growth negative to the warranty. With heavy rainfall the aggregate can be lost through outlets causing blockages and will create more standing water. Mineral Felt is not a fit for purpose system for frontline primary waterproofing due to its vulnerabilities, need for ongoing maintenance and additional costs for the life of the warranty. The main problem Prokol surveyors have seen when looking to carry out precondition reports when leaks occur is the problem of roof access, if you cannot get access you cannot maintain and that’s where maintenance free products are far beneficial.

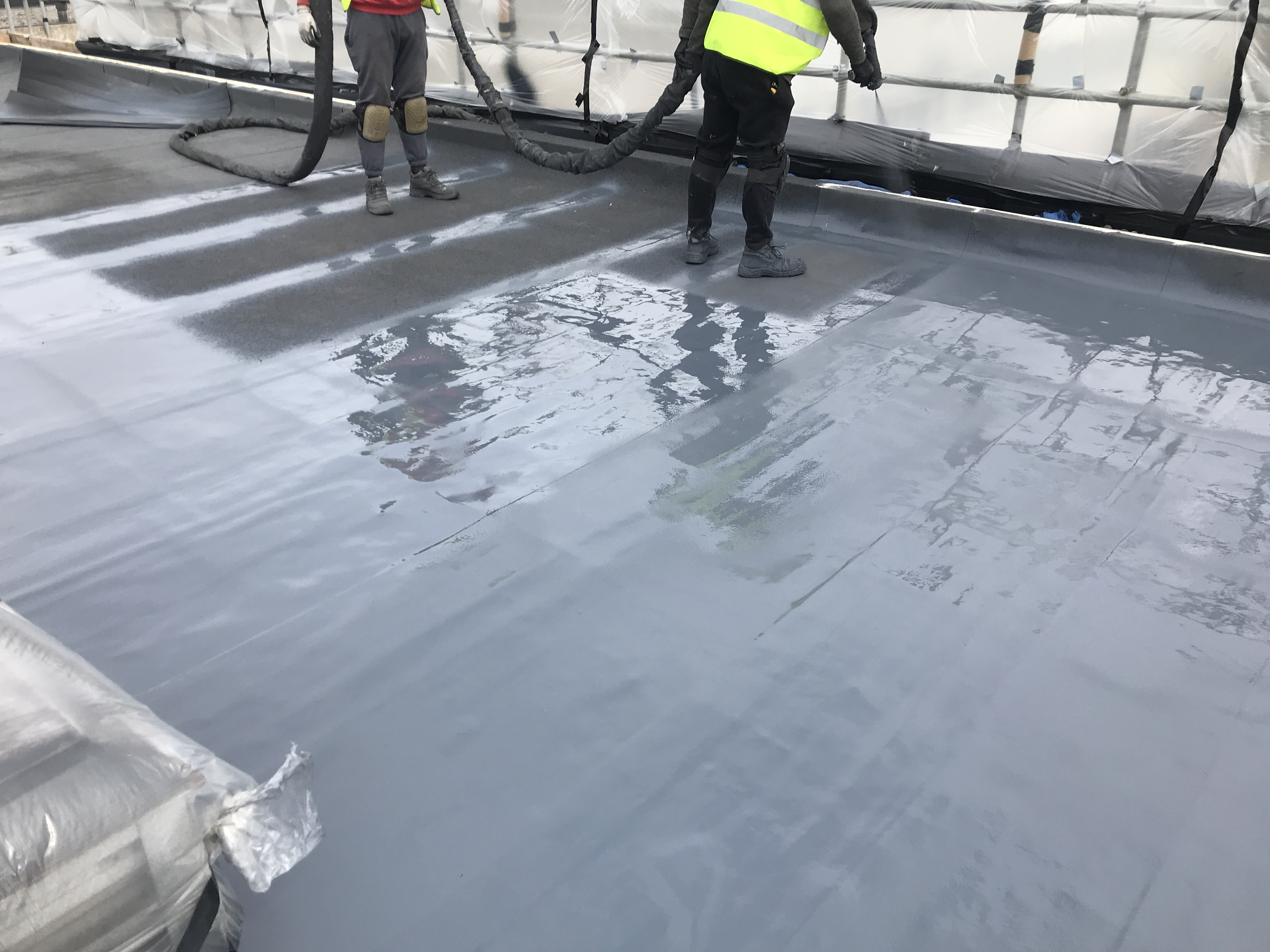

The New Regeneration Works Commence

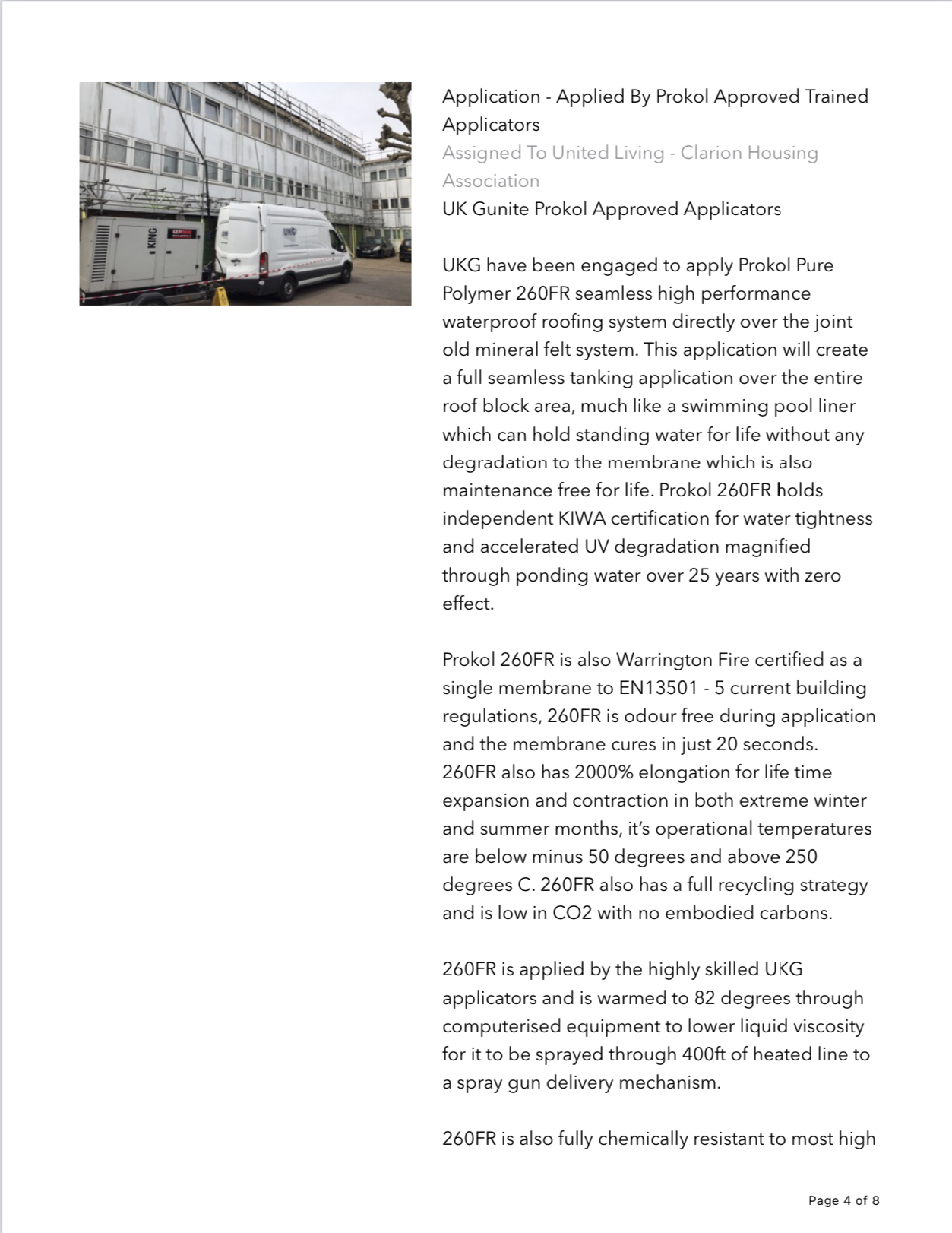

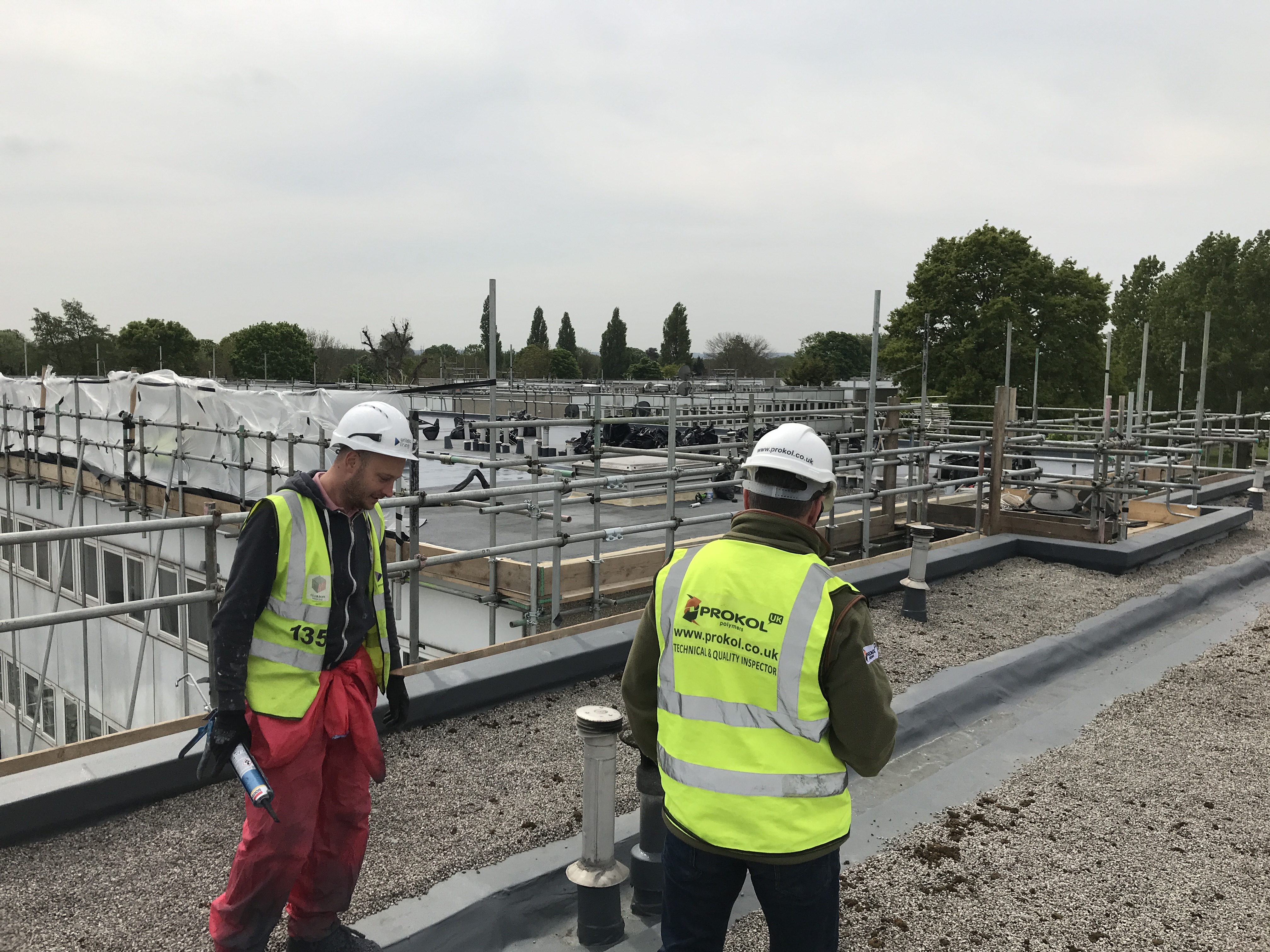

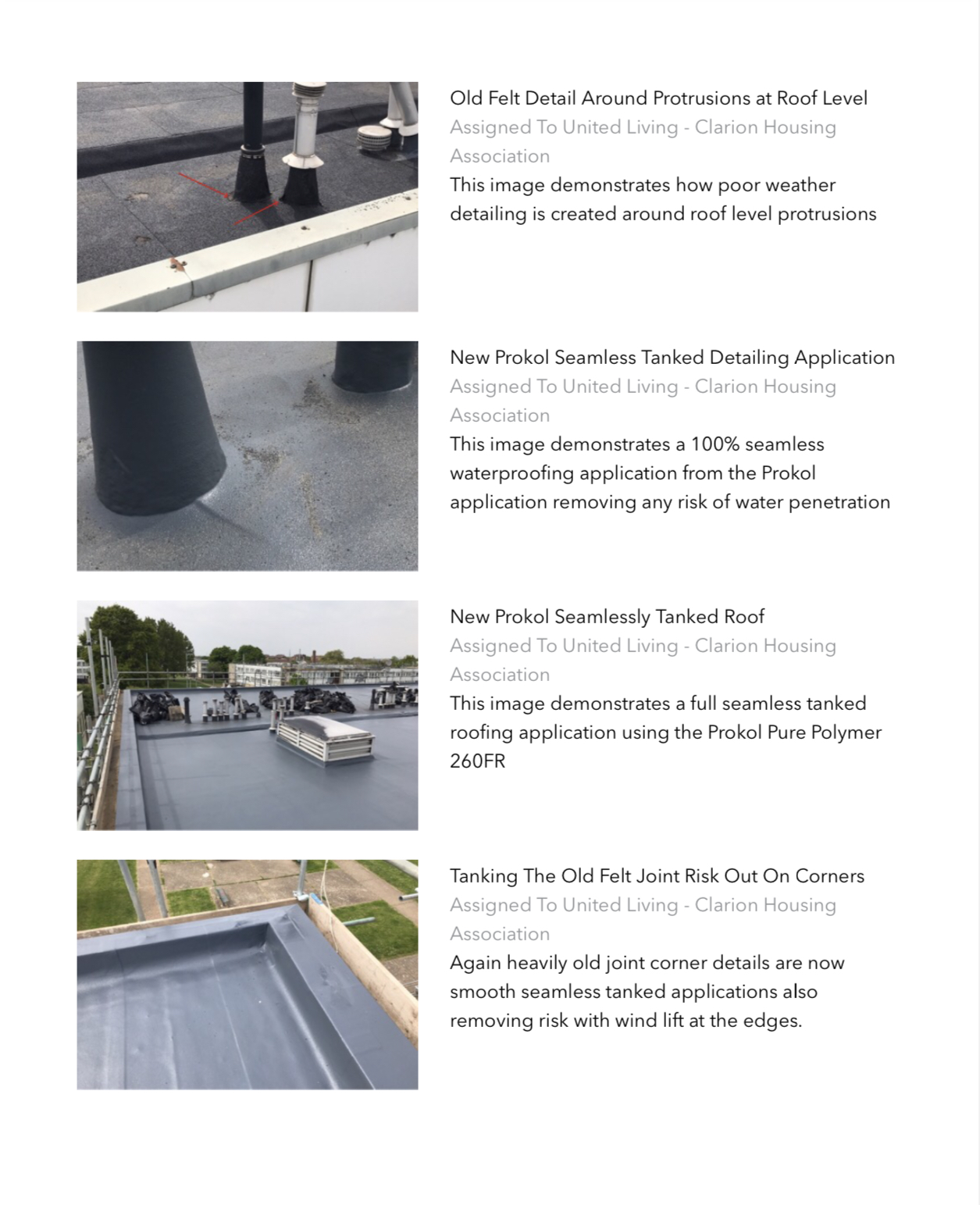

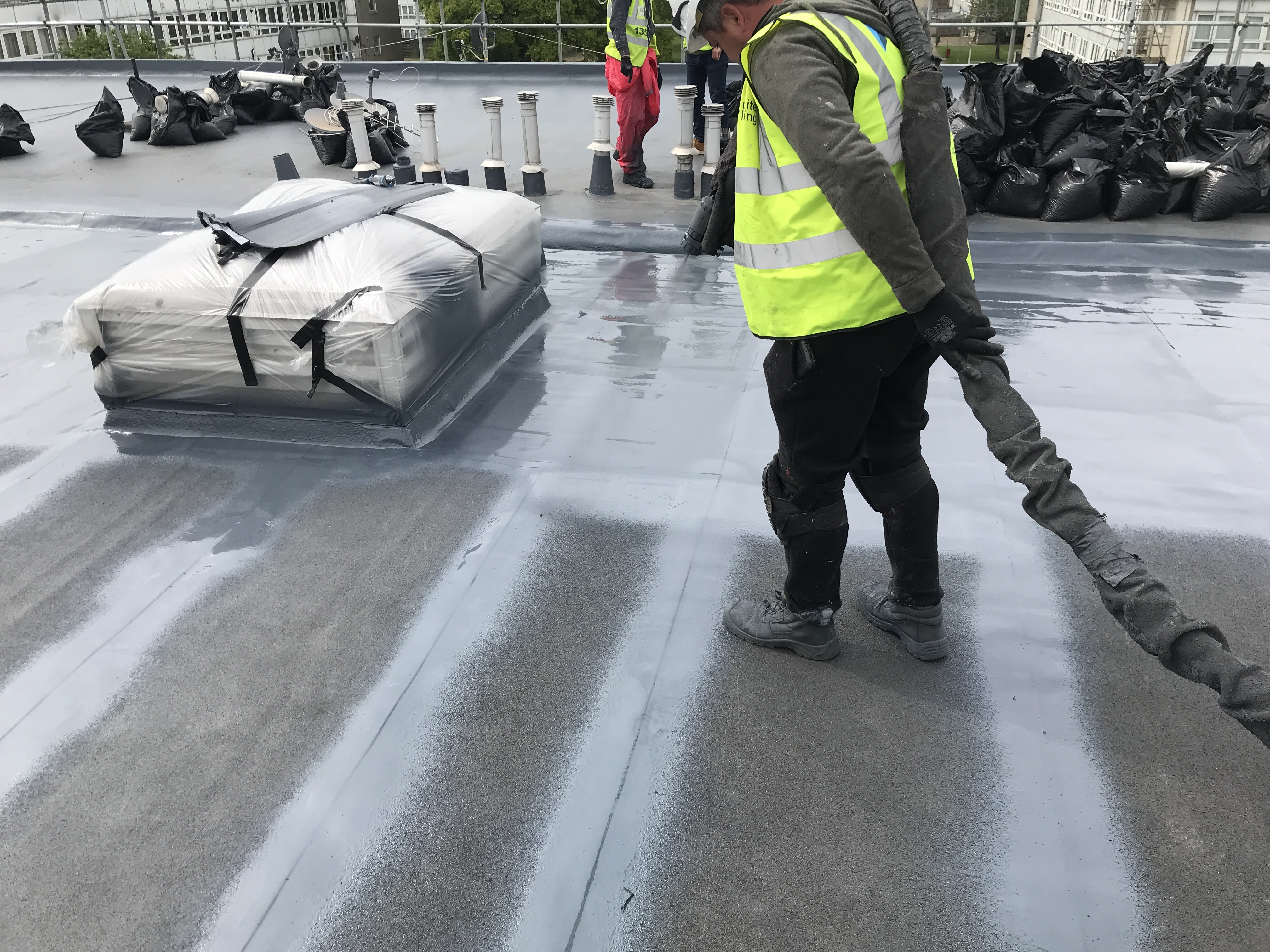

Prokol Polymers approved applicators UKG began preparation to regenerate the existing the old roof felt with a new seamless direct overcoat application of Prokol Rocathaan 260FR liquid waterproofing. By creating a fully tanked swimming pool liner type membrane with key benefits such as no joints, zero maintenance for life and chemically resistant against plant growth acids and acids found in bird waste.

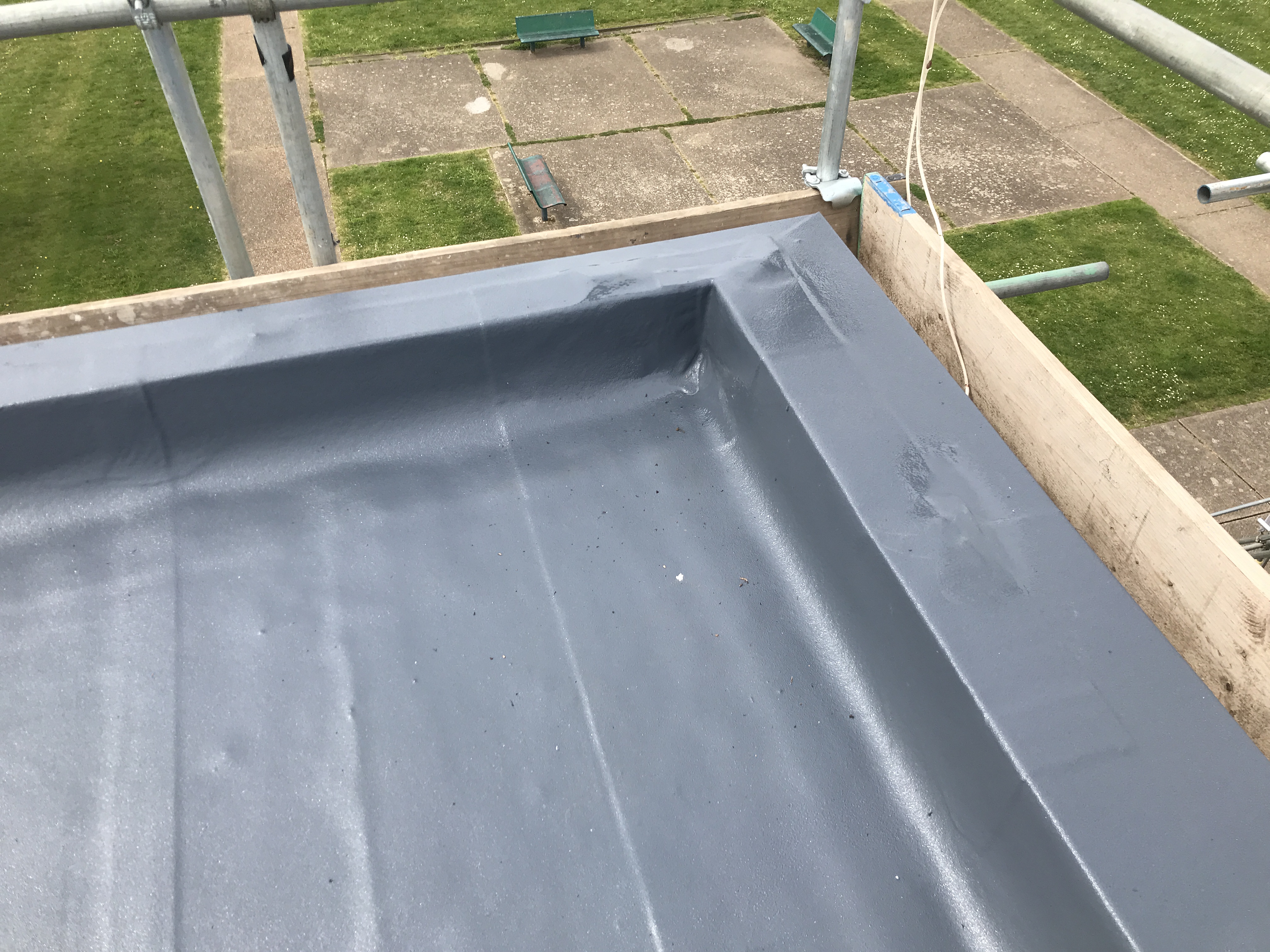

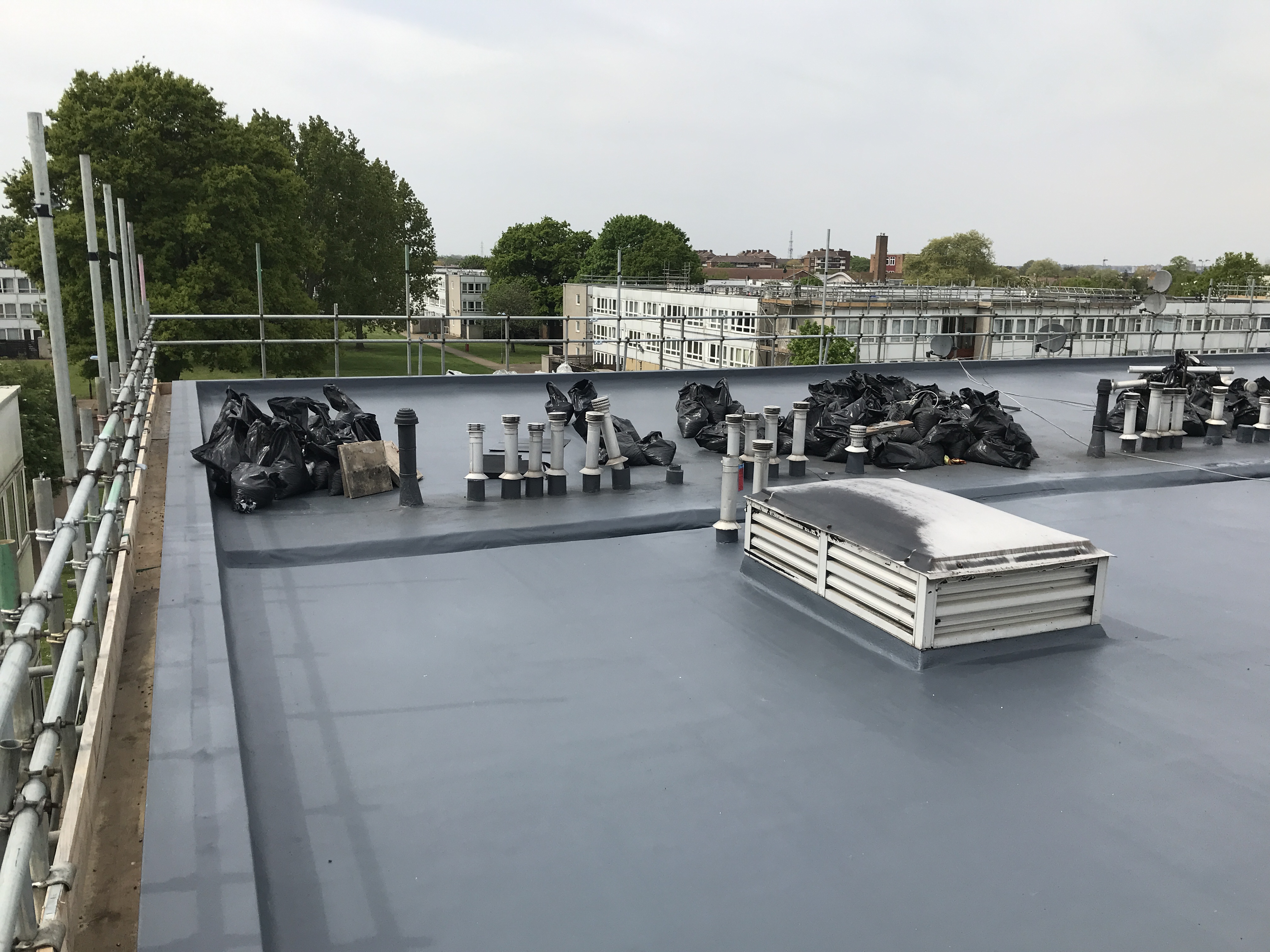

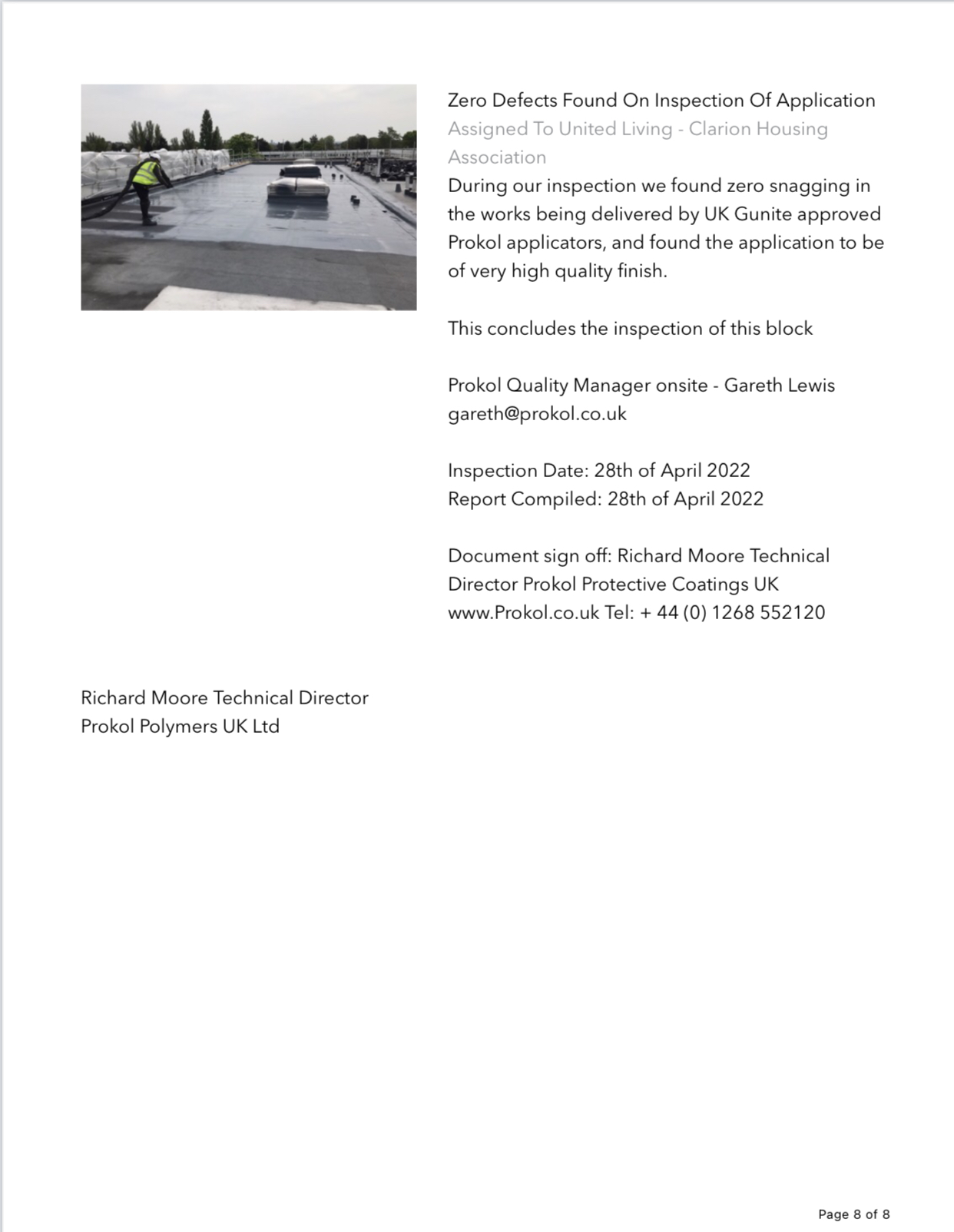

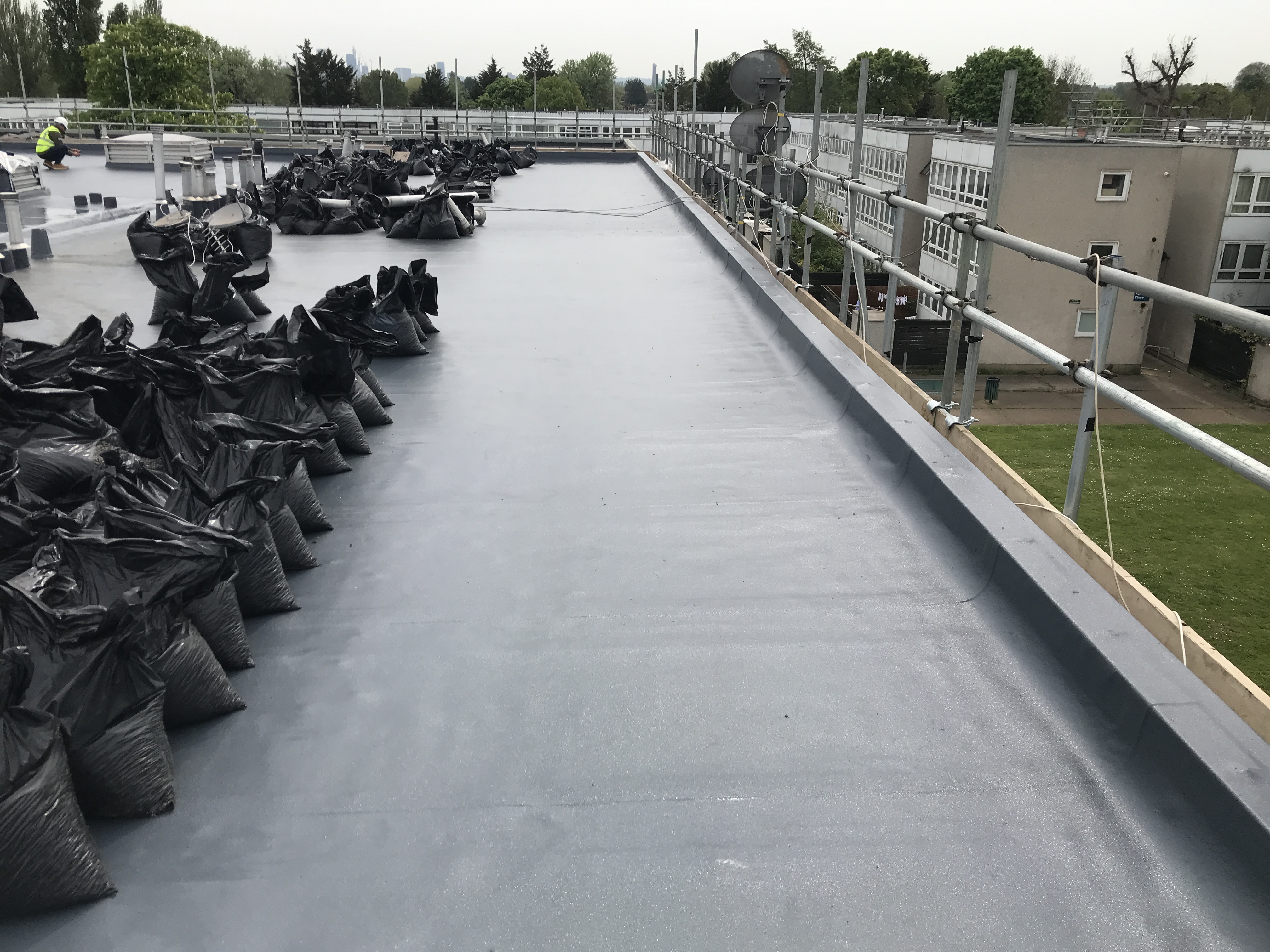

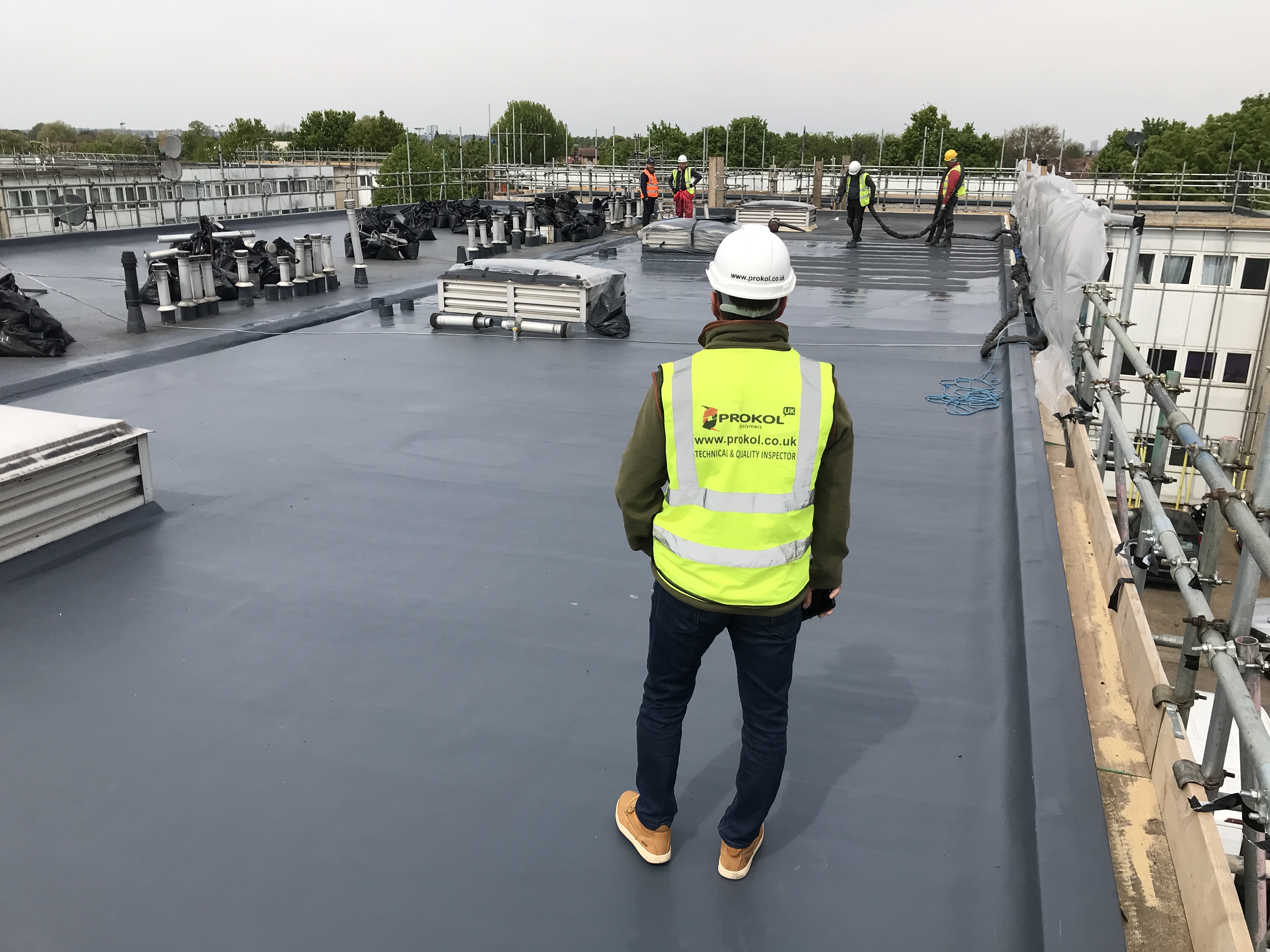

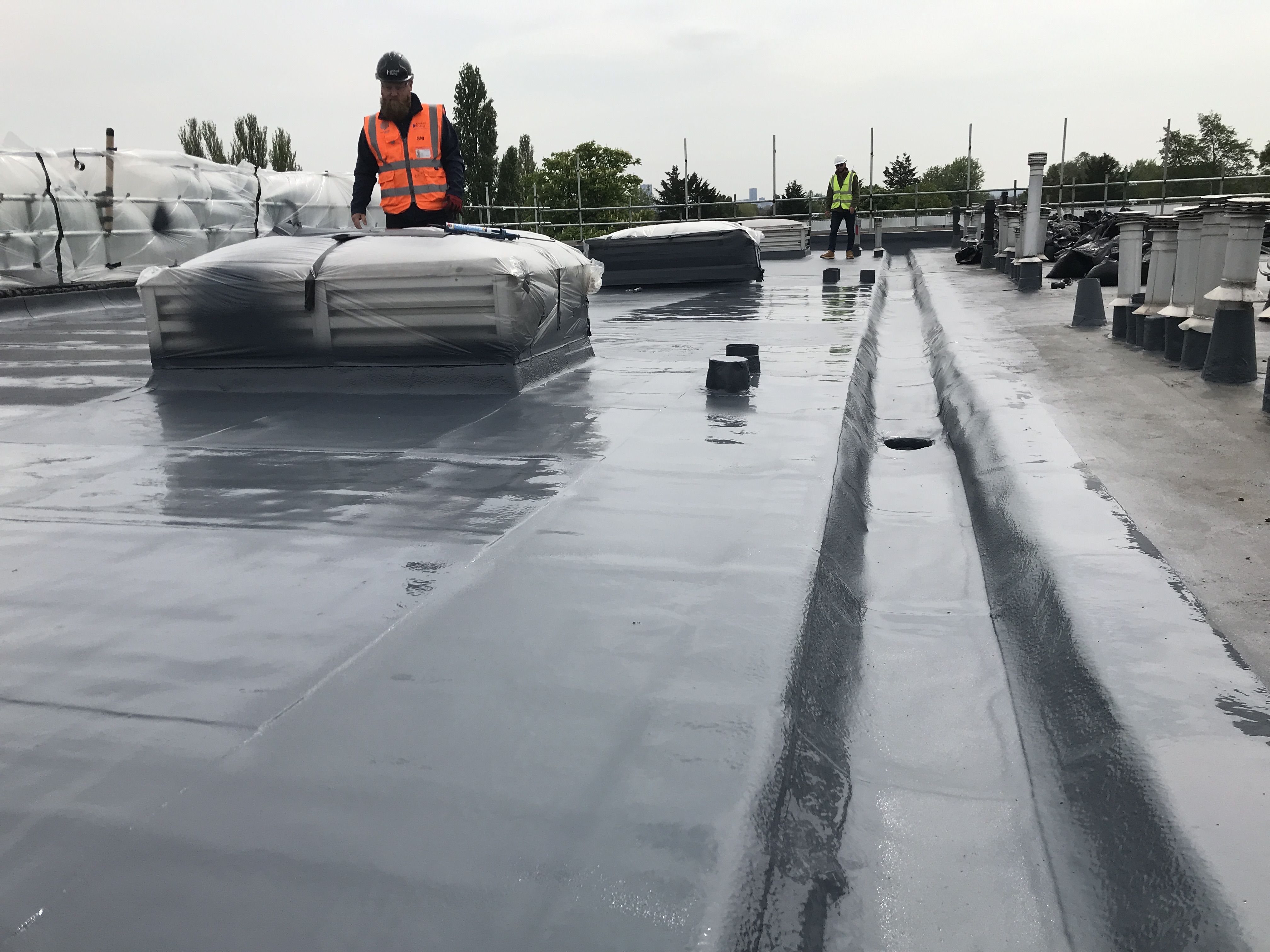

The Completed Roof Project

Although the Eastfields Estate roof layout is primarily on continuous roof around the blocks each building below per section is signed off individually ensuring continuity of finish over the entire application for competence and assurance.
