Chronic Obstructive Pulmonary Disease Alison Ahlert, hannah popelka, Jill mullinix, megan franz, virginia despard

COPD PATHOPHYSIOLOGY

The map that leads to COPD is as follows:

  1. Inflammation of airway epithelium. Causes of airway inflammation will be discussed in detail below, however in general airway irritants, such as smoke and particulate matter, lead to an inflammatory response in the tissues of the lungs, which will be discussed in detail below (Huether & McCance, p692).
  2. Inflammatory response. The body’s inflammatory response includes the release of neutrophils, CD8 T lymphocytes, B cells, and macrophages (Takeda Pharmaceuticals, 2012). These cells trigger an inflammatory cascade which causes the release of inflammatory mediators such as tumor necrosis factor-alpha, interferon gamma, matrix metalloproteinases -6 and -9, C-reactive protein, interleukin -1, -6, and -8, fibrinogen (Takeda Pharmaceuticals) and leukotriene B4 (MacNee, 2006). Chronic Immune stimulation found in COPD patients may be a cause of COPD itself, or a result of chronic colonization of lower respiratory tract by pathogens due to underlying disease states such as chronic bronchitis or emphysema (MacNee, 2005). The aforementioned inflammatory response causes changes in the tissue and tissue damage specifically that result in the symptoms associated with COPD (Takeda Pharmaceuticals, 2012). In addition to the above pathway, an alternate inflammatory pathway involves an imbalance of proteases and anti-proteases. Neutrophils at the sites of inflammation cause the release of serum proteases such as neutrophil elastase, cathepsin G and protease 3 (MacNee, 2005), which may contribute to destruction of alveoli discussed below. Oxidative stress may also cause inactivation of anti-protease (MacNee, 2006), disrupting the protease/anti-protease balance. Individuals with COPD may also have an inherited alpha1-antitrypsin deficiency which results in the inhibition of normal endogenous antiproteases, ultimately increasing the breakdown of elastin in lung tissues and causing tissue damage discussed below (Huether & McCance, 2012, p692).

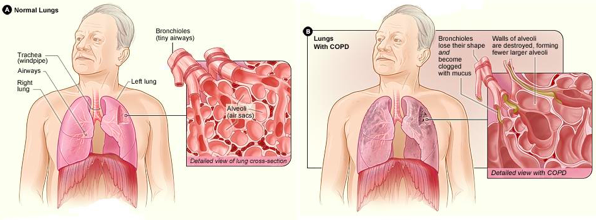

  3. Continued inflammation, irritation, and tissue damage. Alveoli, the air sacs in the lungs, are supposed to be elastic or stretchy. These sacs act like small balloons when they are inflated and deflated (National Institutes of Health, 2013), however inflammatory changes noted above cause the alveoli and airways to lose their elasticity. The walls between the small alveoli may also be destroyed, making larger “balloons” that are less elastic and have less surface area for gas exchange (National Institutes of Health). The walls of the airways also become thick and inflamed due to the inflammatory processes at work (National Institutes of Health, 2013). Inflammation causes enlargement of the mucous glands that line the walls of the airways within the lung, resulting in normal healthy cells being replaced by more mucous secreting goblet cells (Takeda Pharmaceuticals, 2012) and increased size of bronchial submucosal glands (MacNee, 2006), though mucous hypersecretion is not always present. There is also concurrent damage to the cilia of the mucociliary transport system, causing a deficit in the ability of the body to clear mucous from airways (Takeda Pharmaceuticals, 2012).
  4. Airway obstruction, air trapping, and decreased gas exchange. As the cells of the airways make more mucous they have more difficulty clearing it, due to volume and failed ciliary function, ultimately clogging the airways (National Institutes of Health, 2013). Combined with physically inflamed and thickened airway walls, mucous hyper secretion and decreased clearance results in airflow obstruction and increased resistance in the small airways (MacNee, 2006). Decreased surface area of alveolar walls results in decreased gas exchange of CO2 and O2 (National Institutes of Health, 2013). Resulting in abnormal acid-base balance and abnormal ventilation:perfusion ratios. Due to the development of mucous plugs and decrease in airway recoil, air becomes trapped in the alveoli during expiration (Huether & McCance, 2012, p692). The air trapped during expiration,” results in hyperinflation at rest, and dynamic hyperinflation during exercise (MacNee, 2006).”
  5. Breathing difficulties, dyspnea, cough, hypoxemia, hypercapnia, cor pulmonale. The progression of COPD is usually slow, with symptoms developing gradually and worsening over time (National Institutes of Health, 2013). Exacerbations are associated with increased neutrophils and increased eosinophils in the lung tissue. Exacerbations may be caused by infection, air pollution or changes in ambient temperature (MacNee, 2006). Extreme exertion is required to inhale and exhale due to both air trapping and reduced lung compliance. This exertion leads to fatigue which leads to hypoxemia, hypercapnia, respiratory acidosis, severe respiratory failure and possibly even death. Pulmonary vasoconstriction also increases the load on right ventrical leading to peripheral edema (MacNee, 2006). Pulmonary hypertension develops late in COPD as a result of multiple processes interacting. Contributing factors are pulmonary arterial constriction, endothelial dysfunction, remodeling of the pulmonary arteries, and destruction of the pulmonary capillary bed. Structural changes of the pulmonary arterioles leads to persistent pulmonary hypertension which leads to right ventricular hypertrophy, enlargement and dysfunction (MacNee, 2006).

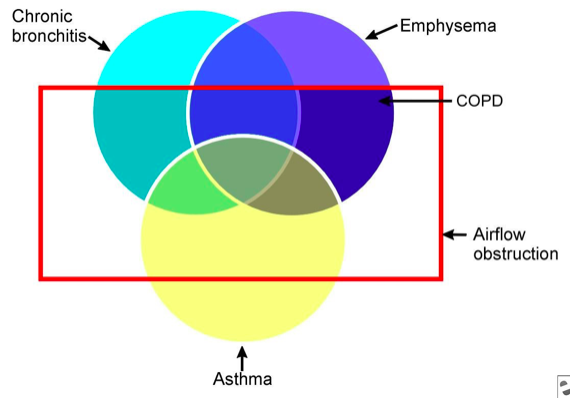

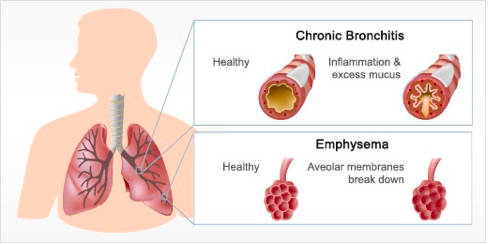

However, the development of COPD follows a slightly different pathways depending on the particular disease underlying it (emphysema, chronic bronchitis, asthma).

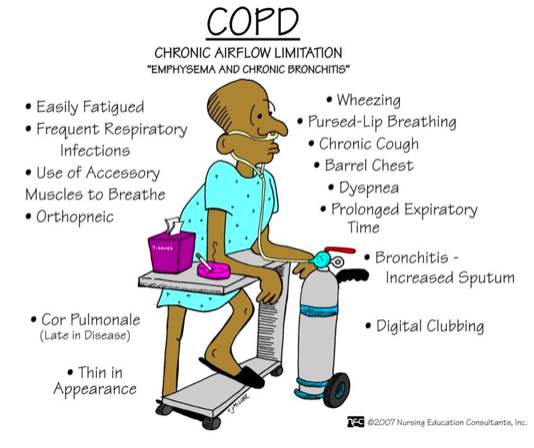

CLINICAL MANIFESTATIONS: People with COPD usually have both emphysema and chronic bronchitis diseases (Chronic Obstructive, 2015).

Signs and Symptoms of Emphysema

  • wheezing
  • dyspnea with exertion (SOB)
  • pursed lips (assists breathing)
  • use of accessory respiratory muscles (for breathing)
  • tripod sitting position for breathing (as seen in background picture)
  • hyperinflation (barrel chest)
  • chest is hyperresonant
  • distant heart sounds
  • increased CO2 retention ("pink puffer")
  • increased respiratory rate
  • anxious
  • speaks in short jerky sentences
  • lack of energy
  • unintended weight loss
  • peripheral edema
  • tachypnea (rapid respiration)

Signs and Symptoms of Chronic Bronchitis

  • chronic cough (producing clear, white, yellow, green sputum)
  • chest tightness and excess mucus in lungs
  • cyanosis (blue lips or nailbeds) and so called “blue bloaters” (seen below)
  • frequent respiratory infections
  • coarse crackles
  • use of accessory muscles of respiration
  • edema (right-sided heart failure)
  • hypoxia
  • increased hemoglobin
  • increased respiratory rate
  • exertional dyspnea (SOB)
  • digital clubbing (as seen in background picture)
Cyanosis of nail beds

COPD DIAGNOSIS

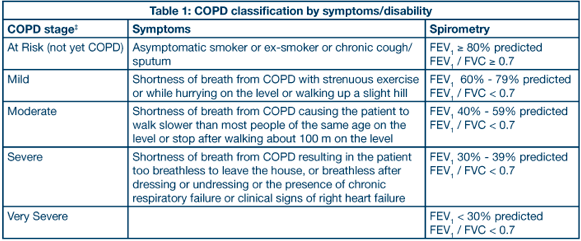

Pulmonary function tests (How is COPD diagnosed?, n.d.): most common test is spirometry. This measures lung capacity and how fast air is expelled upon expiration. This test shows how well the lungs are functioning; COPD patients will have lower functioning lungs. Normal spirometry levels are FEV1 >80% predicted, FVC >80% predicted, FEV1/FVC ratio >70%. Obstructed levels are FEV1 <80% predicted, FVC normal to low, FEV1/FVC ratio <70%.

(Chronic Obstructive Pulmonary, n.d.)

Chest X-ray or CT scan (COPD, n.d.): These can show signs of COPD such as emphysema, or lung cancer can also be detected. These methods are used to rule out other causes of symptoms rather than to definitively diagnose COPD.

Arterial blood gases (ABGs) (Diagnostic tests, n.d.): By taking a blood sample from an artery, your oxygen and carbon dioxide levels can be measured, along with other important levels. This test shows how well your lungs are able to absorb oxygen and remove carbon dioxide from the blood. ABGs can measure acid/base balance (pH), carbon dioxide level (PaCO2), oxygen level (PaO2), and oxygen saturation (SaO2). A pH below 7.35-7.45 indicates acidosis or too much acid. A pH above 7.35-7.45 indicates alkalosis or too much base. The body functions best at a neutral pH of 7.35-7.45. Carbon dioxide level (PaCO2) will show how well carbon dioxide is being removed from the blood in the lungs. Normal level is 35-45; above this level indicates respiratory acidosis and below this value indicates respiratory alkalosis. Oxygen level (PaO2) indicates how well the lungs are filtering oxygen into the blood in the alveoli of the lungs. Normal level is 80-100. Most who suffer from COPD have below normal levels of oxygen due to alveoli damage. Oxygen saturation (SaO2) measures the percent of hemoglobin in red blood cells that is carrying oxygen. A level below 94 percent indicates decreased respiratory function.

Symptoms of COPD in children are usually attributed to another condition or factors such as asthma, cystic fibrosis (CF), or irritants such as cigarette smoke.

TREATMENT: There are three levels of treatment for COPD, that depend upon the severity of disease, and can be done in combination (Diseases and Conditions, 2015).

Lung Therapies

  • oxygen therapies (for hypoxia)
  • pulmonary rehabilitation program (respiratory and chest physiotherapy, physical therapy consisting of bronchopulmonary hygiene, exercise, vocational rehabilitation)

Medications

  • bronchodilators (relieve coughing and SOB) such as short-acting Albuterol and long-acting Tiotropium
  • inhaled steroids (reduce airway inflammation) such as Fluticasone
  • oral steroid such as Prednisone
  • combined inhalers (bronchiodilators and inhaled steroids) such as Salmeterol and Fluticasone
  • phosphodietsterase-4 inhibitors (for COPD and chronic bronchitis to decrease and relax airway inflammation) such as Roflumilast
  • Antibiotics for bacterial respiratory infections

Surgery

  • lung volume reduction surgery to remove damaged tissue from upper lung
  • lung transplant
  • bullectomy in patients with air pocket and alpha 1-antitrypsin deficiency to remove air pocket and surrounding tissue (What is COPD?, 2013)

COPD RISK FACTORS

COPD's number one risk factor is cigarette smoking (up to 90% of cases). 15-20% of one-pack-a-day smokers and 25% of two-pack smokers will develop COPD in their lifetime (COPD risk factors, 2015). A person's risk is determined by their age of initiating smoking, total pack-years, and current smoking status. Lung function changes usually occur long before they are clinically detected. Smoking cigarettes, as well as cigars and pipe smoke, impairs cilia, inhibits macrophages, and leads to excessive mucus production. Second-hand smoke increases the risk of respiratory infections, can worsen or perpetuate asthma symptoms, and reduces pulmonary function.

Smaller percentages of COPD cases can be attributed to occupational and environmental factors and are often associated with co-morbid diabetes and asthma. Common work exposures are coal, manufactured fibers, cement, welding fumes, organic dusts, engine exhaust, fire smoke, and second-hand cigarette smoke (Chronic Obstructive, 2015).

Genetic predispositions to developing COPD may exist. Alpha1-antitrypsin (AAT) deficiency is the only known genetic link to COPD and accounts for <1% of cases.

HIV-positive patients have been shown to have an increased risk after control tests for other variables.

Airway hyper-responsiveness may have correlation for smokers.

Connective tissue disorders present as risk factors, specifically Marfan's syndrome (pulmonary abnormalities, especially emphysema, in 10% of affected individuals), Ehlers-Danlos syndrome, and Cutis Laxa (Chronic obstructive-medscape, 2015).

Specific risk factors for chronic bronchitis are smoking cigarettes, cigars, pipes, and marijuana (85-90% of cases) (Bronchitis, 2015). Acute bronchitis leads to chronic bronchitis over time with continued exposure to cigarettes and other irritants.

Specific risk factors for emphysema are cigarette smoking; asthma with persistent, fixed airway obstruction regardless of therapy; 2% of IV drug users (direct correlation between pulmonary vascular damage from methamphetamine and development of bullous cysts in the upper lobes of lungs from cocaine or heroin); and severe AAT deficiency (has been linked to premature emphysema around age 53 for non-smokers and age 40 for smokers) (Emphysema, 2015).

REFERENCES

Bronchitis: Practice Essentials, Background, Pathophysiology. (2015). Retrieved December 1, 2015, from http://emedicine.medscape.com/article/297108-overview

Chronic Obstructive Pulmonary Disease (COPD). (n.d.). Retrieved December 2, 2015, from http://www2.gov.bc.ca/gov/content/health/practitioner-professional-resources/bc-guidelines/copd

Chronic Obstructive Pulmonary Disease (COPD). (October 30, 2015). Retrieved November 27, 2015, from http://emedicine.medscape.com/article/297664-clinical

Chronic Obstructive Pulmonary Disease (COPD). (2015). Retrieved December 1, 2015, from http://emedicine.medscape.com/article/297664-overview.

COPD. (n.d.). Retrieved December 2, 2015, from http://www.mayoclinic.org/diseases-conditions/copd/basics/tests-diagnosis/con-20032017

COPD Risk Factors - Mayo Clinic. (2015). Retrieved December 1, 2015, from http://www.mayoclinic.org/diseases-conditions/copd/basics/risk-factors/con-20032017

Diagnostic Tests « COPD Foundation’s COPD Big Fat Reference Guide (COPD). (n.d.). Retrieved December 2, 2015, from http://www.copdbfrg.org/?page_id=369

Diseases and Conditions COPD. (July 21, 2015). Retrieved November 27, 2015, from http://www.mayoclinic.org/diseases-conditions/copd/basics/treatment/con-20032017

Emphysema: Background, Pathophysiology, Epidemiology. (2015). Retrieved December 1, 2015, from http://emedicine.medscape.com/article/298283-overview

Huether, S. & McCance, K. (2012). Understanding pathophysiology. 5th Edition. St. Louis, MO: Elsevier.

How Is COPD Diagnosed? (n.d.). Retrieved December 2, 2015, from http://www.nhlbi.nih.gov/health/health-topics/topics/copd/diagnosis

MacNee, W. (2005). Pathogenesis of Chronic Obstructive Pulmonary Disease." Symposium: The science of COPD: Opportunities for combination therapy. Proceedings of the American Thoracic Society, (2), pp. 258-266.

MacNee, W. (2006). Pathology, pathogenesis, and pathophysiology. BMJ: British Medical Journal, 332(7551), 1202–1204.

National Institutes of Health. (2013). What is COPD? Retrieved on November 25, 2015 from http://www.nhlbi.nih.gov/health/health-topics/topics/copd

Takeda Pharmaceuticals. (2012). Pathophysiology of COPD. Retrieved on November 25, 2015 from http://www.thinkcopdifferently.com/en/About-COPD/What-is-COPD/Pathophysiology-of-COPD
