A LOYALIST COTTAGE - An Evolving Typology

A LOYALIST COTTAGE - An Evolving Typology Prototype study for a BAHAMAS relief Cottage

Historical Precedence

Understanding the Architectural DNA of the Loyalist Cottage - Character, Constructability, Resiliency

Watercolors by Winslow Homer capturing the essence of the Bahamian Loyalist Cottage

Winslow Homer Watercolor

Loyalist Cottage Elbow Cay, Abaco Bahamas

Gallup Cottage - Elbow Cay

Loyalist Cottage Typologies

Loyalist Cottage - Harbour Island

Hope Town Cottage shuttered and ready for the weather

Cottage Typology Studies

A Modular Grid and Evolving Plan

Venacular cottages have traditionally evolved, or grown over time, to allow for the changing programmatic needs of a family as well as stylistic transitions as cultures changed and adapted to new influences.

The fully evolved Floor Plan Concept with Modular Grid. The Floor Plan allows for two Roof Types - Typology A and Typology B

Typology A - Gable End Character Study

Watercolor Study - Typology A

Character Study - Typology A - Gable Roof

Typology B - Hip Roof Character Study

Character Study - Typology B - Hip Roof

Module / Grid Floor Plan - Evolves over time

Loyalist Cottage Concept Typology A

The A (Gable end) Typology is seen as an evolving cottage residence that can start in its purest form as a single room shelter building and grow over time into a high-style vacation compound retreat.

Core Structure Diagram

The Echostone 6” insulated concrete wall system is used to create the Primary building Core or envelope (including a concrete flat roof “lid” for storm shelter classification). Secondary structures of wood construction utilizing time tested vernacular methods and materials will complement the core structure. This core can be used for both Typology A (Gable end) and the Typology B (Hip Roof) options.

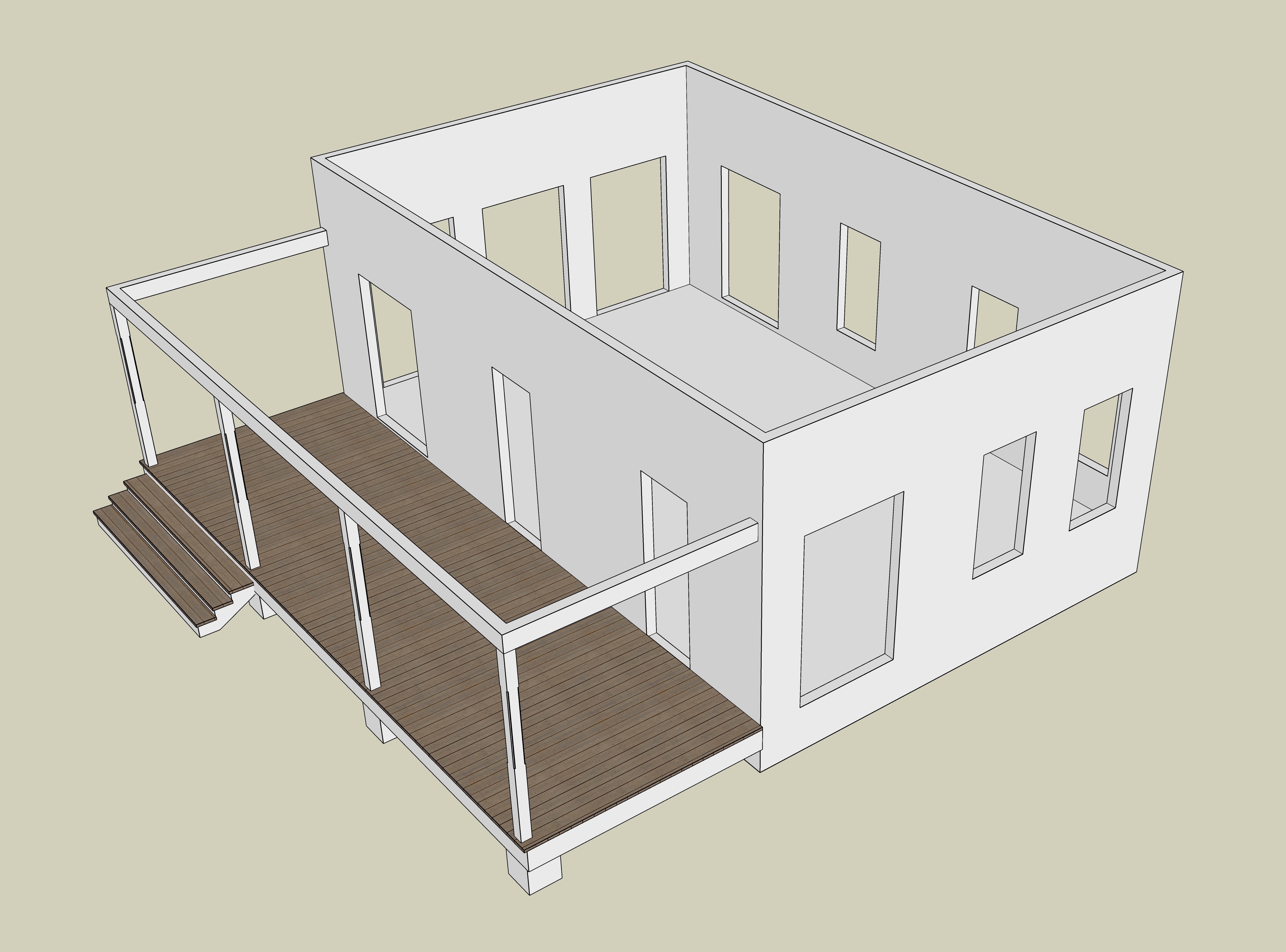

Concrete core (700 sf) with single wood frame porch (300 sf)

Diagram indicates an added space that represents a traditional “filled-in-porch” for a new sleeping room (200 sf)

A concrete “cap” over the concrete walls provide a storm shelter.

Typology Evolution Video

Typology A “Base”

Typology A - Base

The base cottage, with painted concrete walls and single wood framed porch, allows for the most efficient and cost effective phase of the typology. Window and door locations are designed to allow future growth such as filled-in-porches, additional porches and an architectural “skin” which can be added over time. Attic access for storage is provided in the concrete cap.

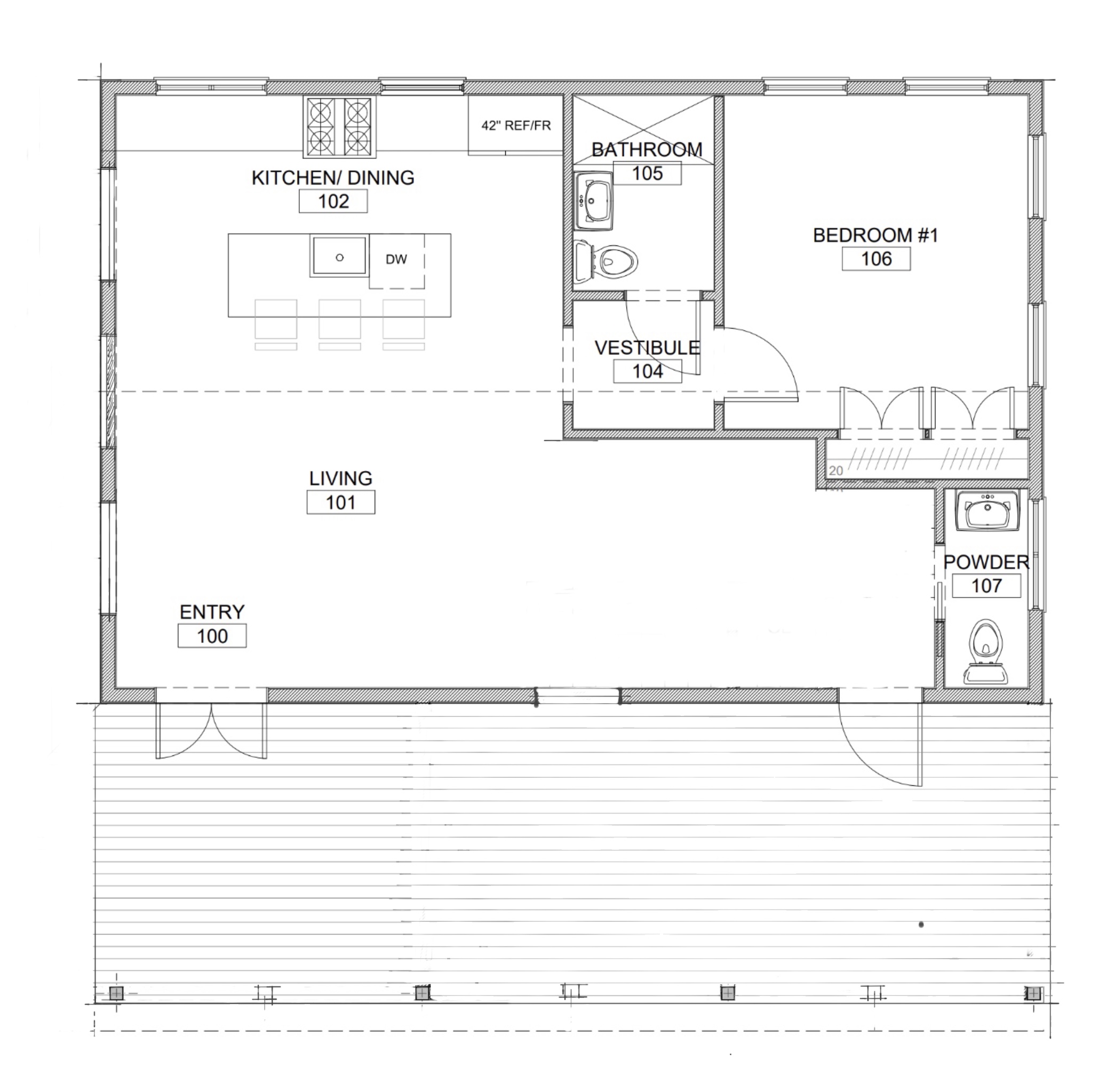

Floor Plan - 700 sf interior plus 300 sf covered Porch

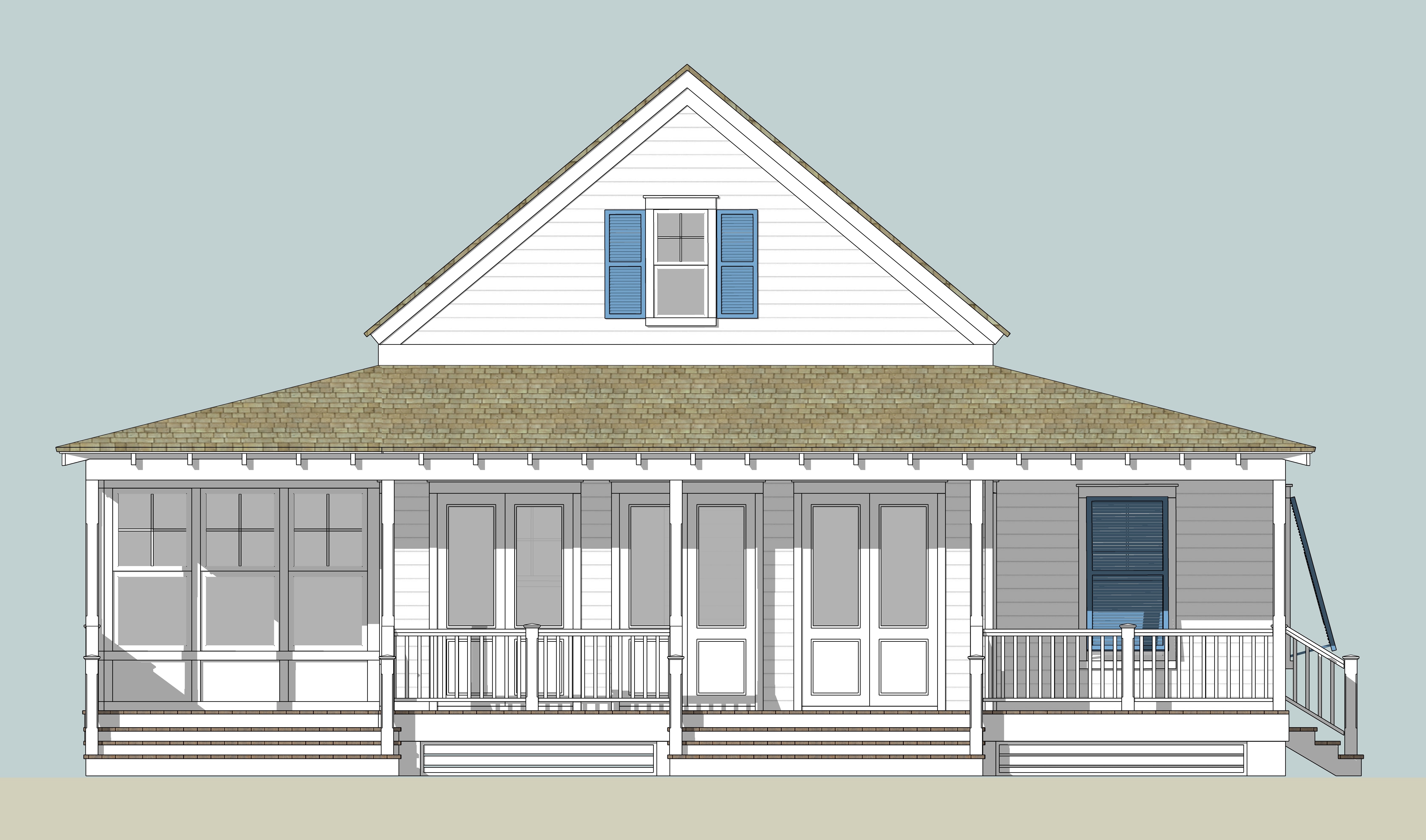

Entry Elevation - orientation is influenced by site, context and adjacent structures.

Concrete walls are supported by thickened edge slab on grade or continuous footing with raised, conventionally framed floor when elevated conditions are required for floor elevations. Porches are constructed on isolated footings and CMU piers.

Entry Elevation - Stair location allows for the front door to move as the building grows.

Rear Elevation

Side Elevation - false panel in center allows for future conversion to doors onto porch. Panels below window allow for conversion to doors if required without cutting concrete walls.

Side Elevation - attic gable will be framed for future window.

Roof Plan with metal roofing and PV panels

Typology A

The Typology A unit is an A “Base” with added architectural skin: exterior details and windows to access the attic 2nd floor. An interior stair is also added to access the attic 2nd story space for storage or sleeping room.

First Floor Plan

A - Historic Porch Column Spacing

Cementitious siding and trim added to the concrete walls as well as other architectural detailing elements

Continuous banding above grade provides the appearance of a traditional “off-grade” construction.

Typology A1

A1 Concept Sketch

The first evolution in the programmatic growth of the Cottage. The porch has two bays “filled-in” to create an additional sleeping room and is extended around the side. The front door moves to the left bay. With stair access to the attic, this A1 concept can be a three bedroom typology.

First Floor Plan - 900 sf of interior space plus 400 sf of covered porch

Second Floor Plan - approximately 500 sf

A1 - Historical Column Spacing

A1 - Modular Column Spacing

The side windows and false panel are converted to doors onto the new porch. Some windows may remain to reduce cost or can be moved to the next phase.

Typology A1 Dormers

Typology A1 Dormer

The Dormer option adds both gable-end dormers and shed dormers to provide more usable volume (550 sf) in the attic space. Various combinations of dormer types allow for a variety of architectural character in adjacent units.

Gable dormer and shed dormer can be added to one or both roof sides to allow varying use of 2nd floor and to maintain PV panels.

Typology A2

The porch is continued around the entire core building and an additional public or private room is added within the bays (filled-in-porch). An additional 200 sf on the side in-fill and 100 sf on the rear in-fill (extra space used as additional kitchen, bathroom or equipment)

A2 Floor Pluan - 1,200 sf interior plus 700 sf porches

The added side in-fill is shown as public space above for dining area or den area. Can also be filled-in as an additional private area (single window per bay).

Side elevation that could orient towards a view or courtyard.

Rear elevation with added in-fill at the kitchen area.

Roof Plan

Typology A2 Dormer

Full wrap around porch with “filled-in-porch” bays

Typology A3

To increase program for a guest suite or office space, a connected secondary wing is added using Echostone wall system and conventional framing porches. The wing can be a hip roof for simplicity or a gable roof for additional storage and to allow variety in form.

Connected porch allows for covered access

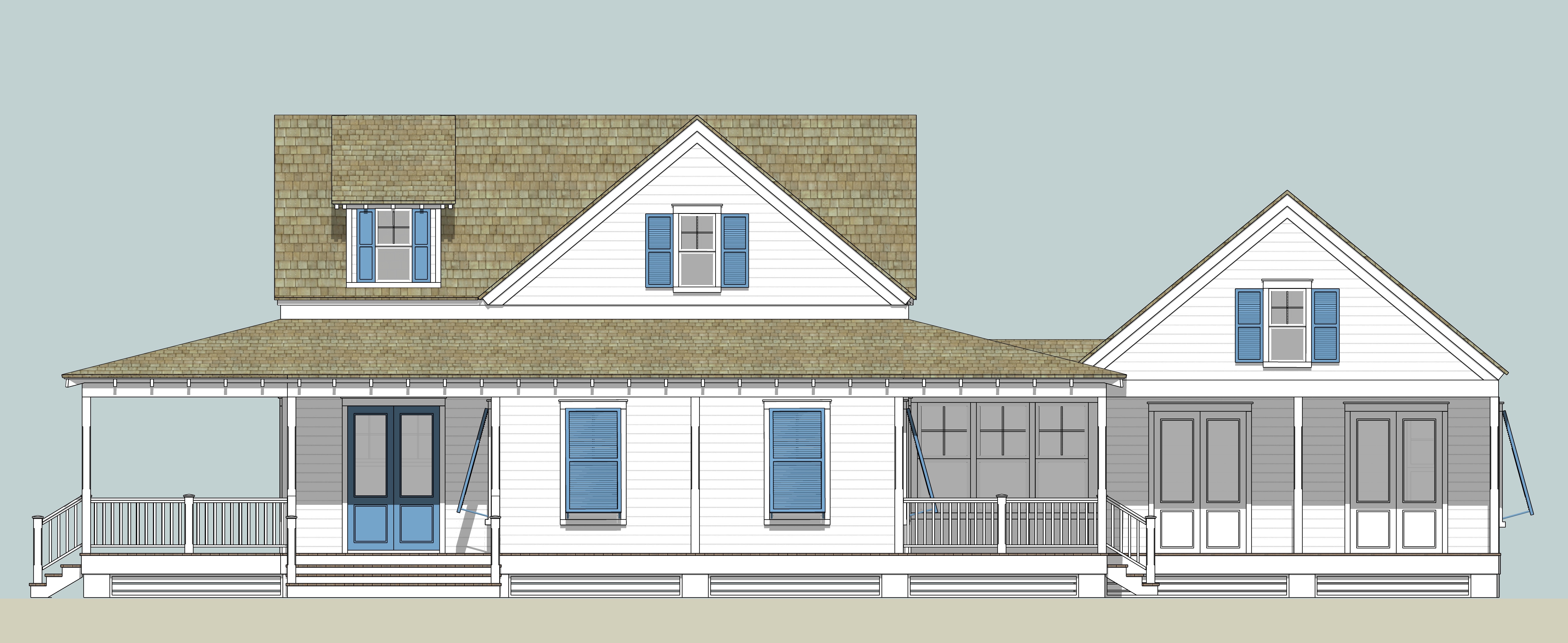

A3 Gable Wing

Gable ends at the secondary wing allow for use of attic space

Typology A4 Dormer

An additional detached outbuilding is added within the modular grid to act as separate guest suite, office or utility building to supplement the primary building’s program.

Fully evolved Floor Plan Concept with Entry Pavilion: 2,000 sf interior plus 1,400 sf of covered porches and deck.

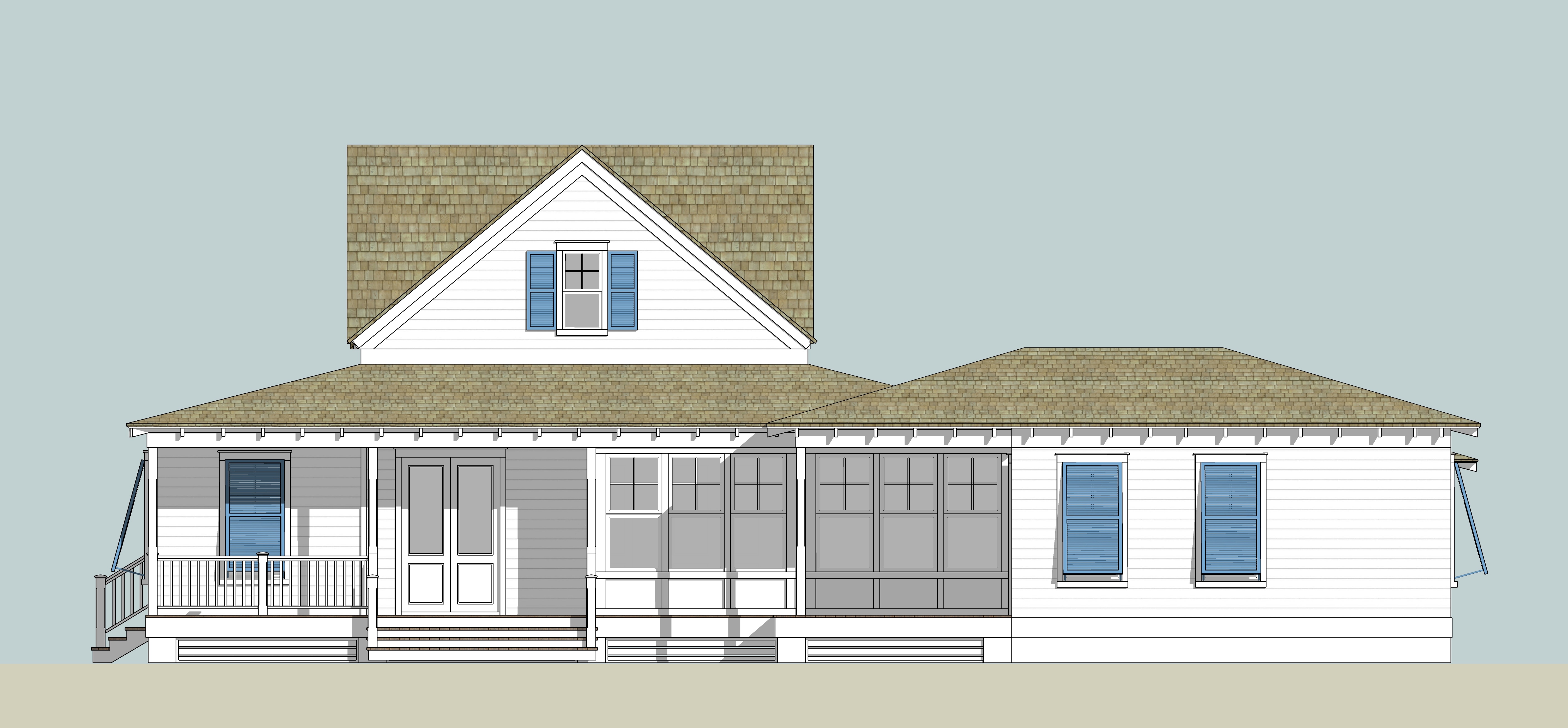

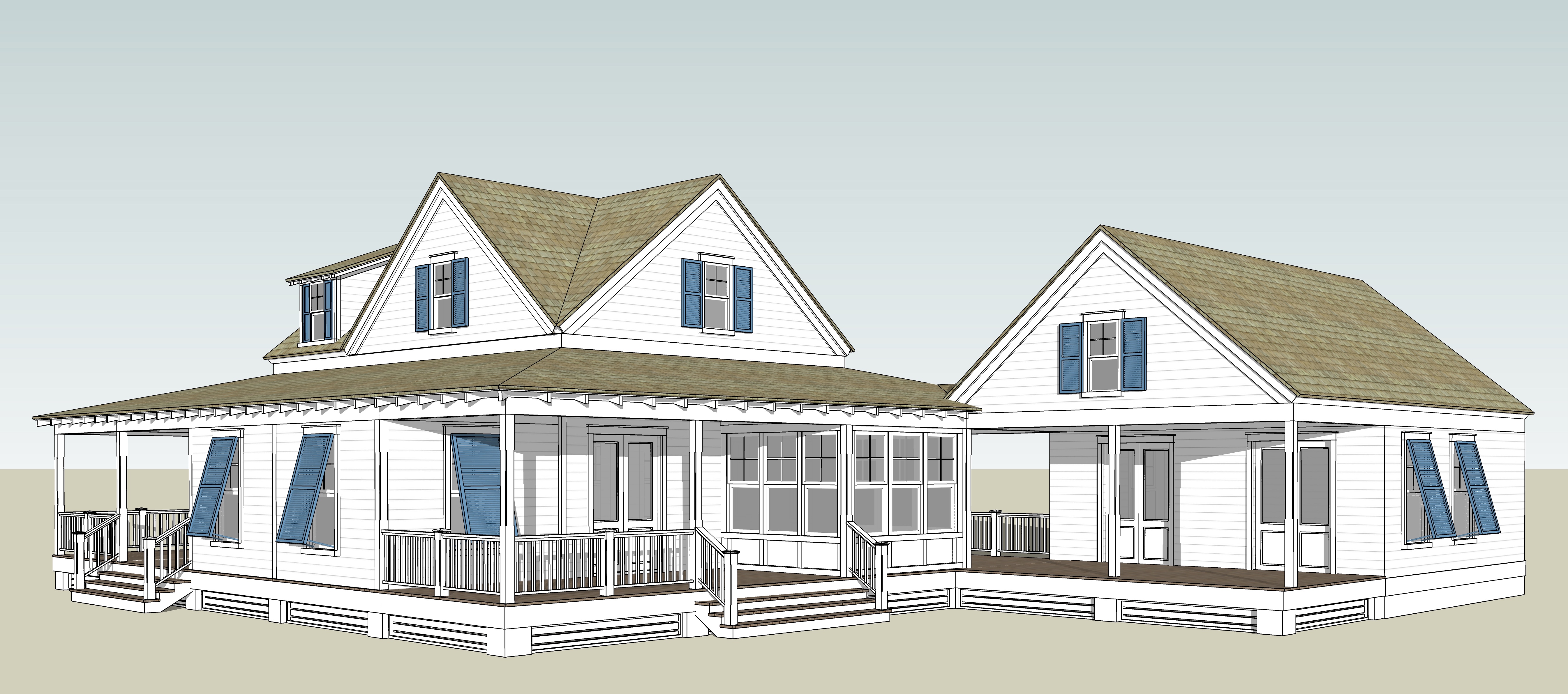

A4 Gable End Concept with hip wings

B4 Hip Concept

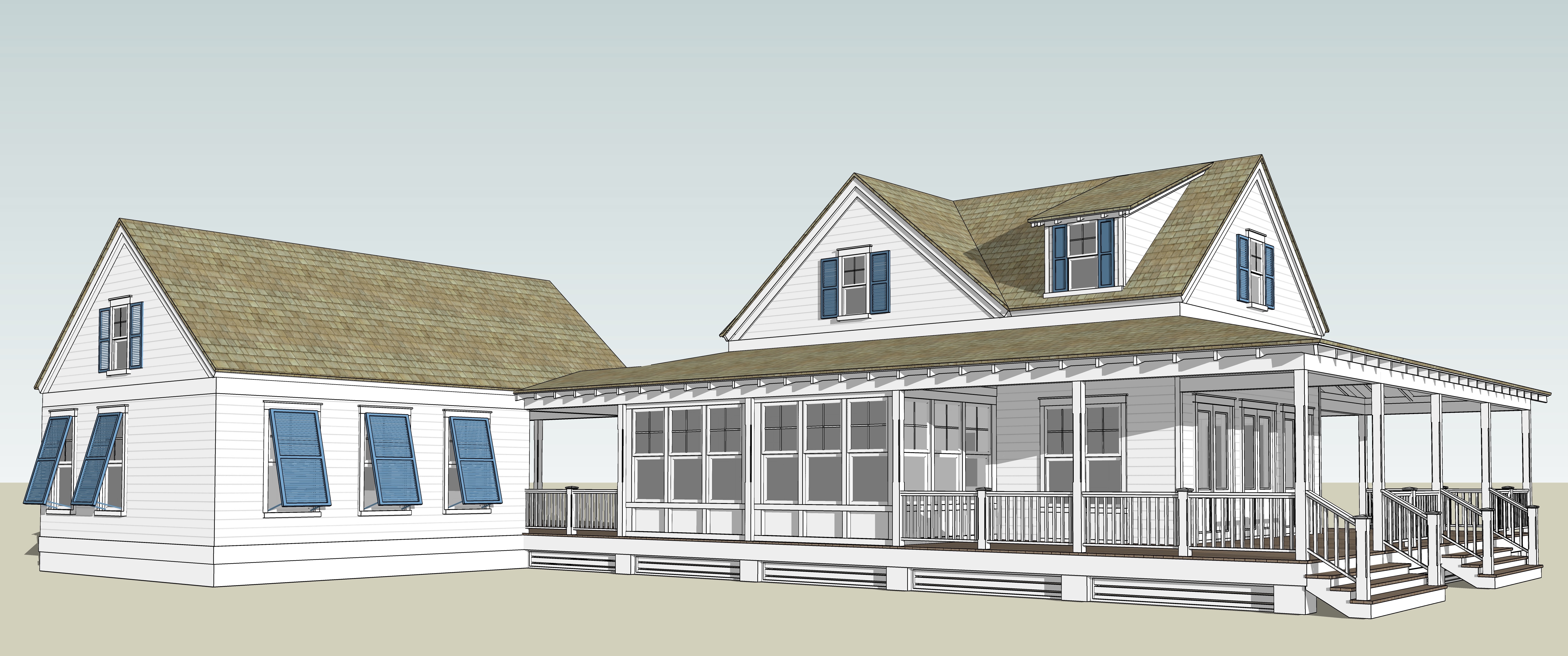

A4 Gable Rendering

Elevation

Roof Plan - Hip Wing

Architectural Character and Details

Architecture by Cronk Duch. Craftsmanship by Abaco Construction
