Portfolio Newid Architectural solutions

Portfolio

This Portfolio includes examples from a range of projects across different stages of the Architectural Design process, modelled in Revit on behalf of Cole&Co Architectural.

  • Stage 1 - Survey
  • Stage 2 - Scheme Proposal
  • Stage 3 - Planning Approval
  • Stage 4 - Building Control

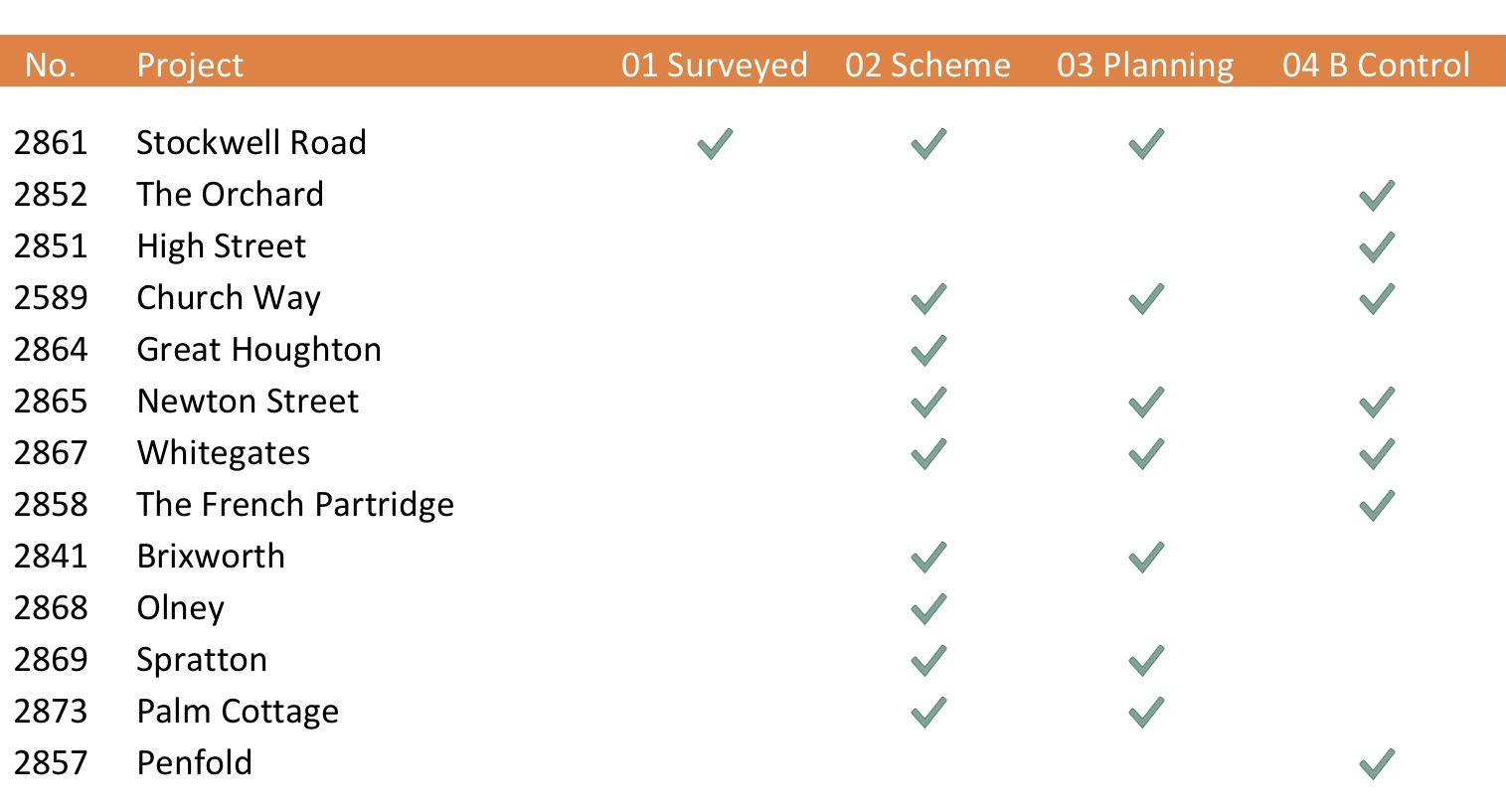

Projects & stages covered

Scroll down to view project drawing examples

Stockwell Road

Single storey flat roof extension of a semi-detached property to provide an extra bedroom and an open plan kitchen / living area.

Survey of existing leading to a Scheme Proposal which was developed and Submitted for and received Planning Approval

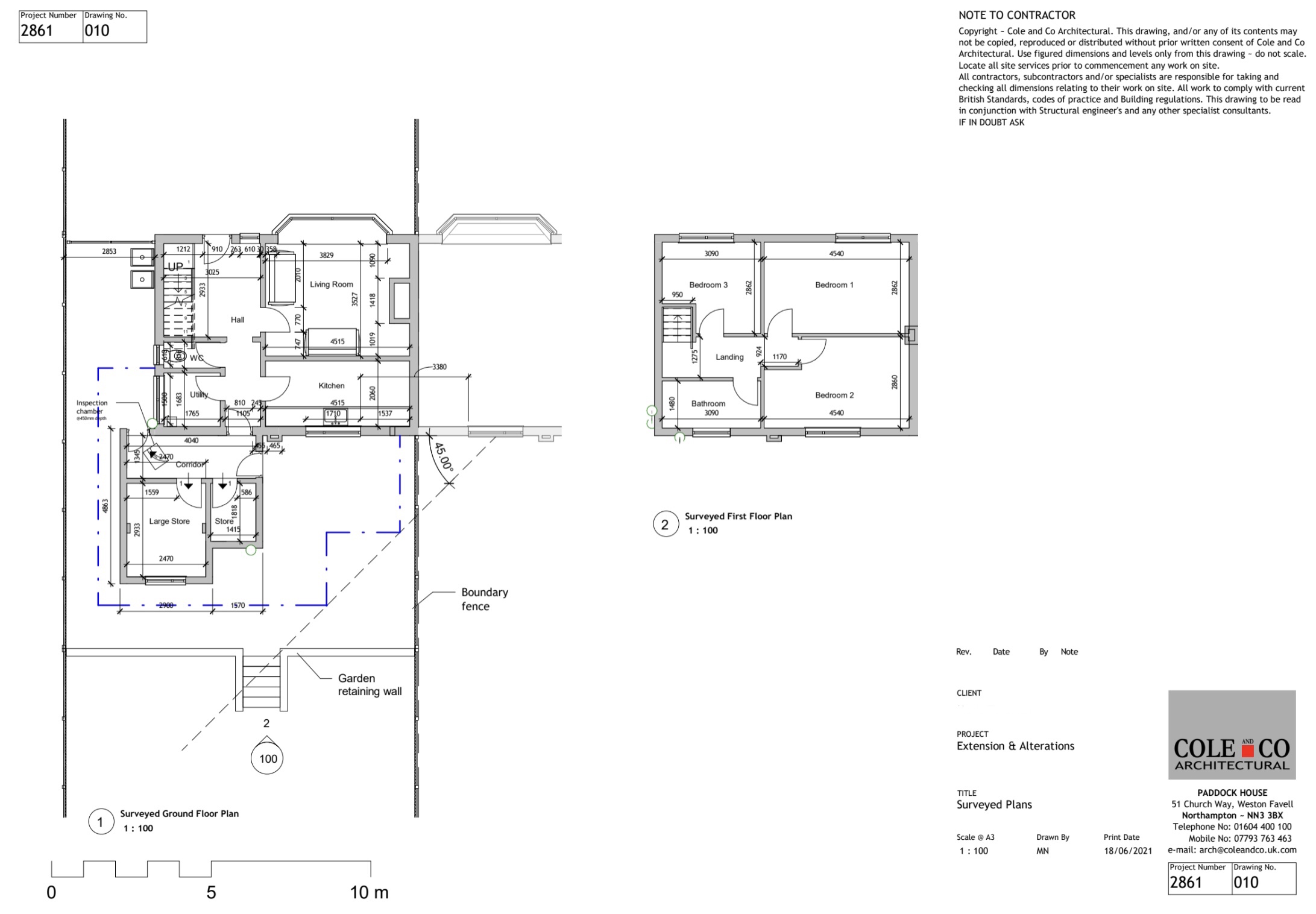

Survey plan

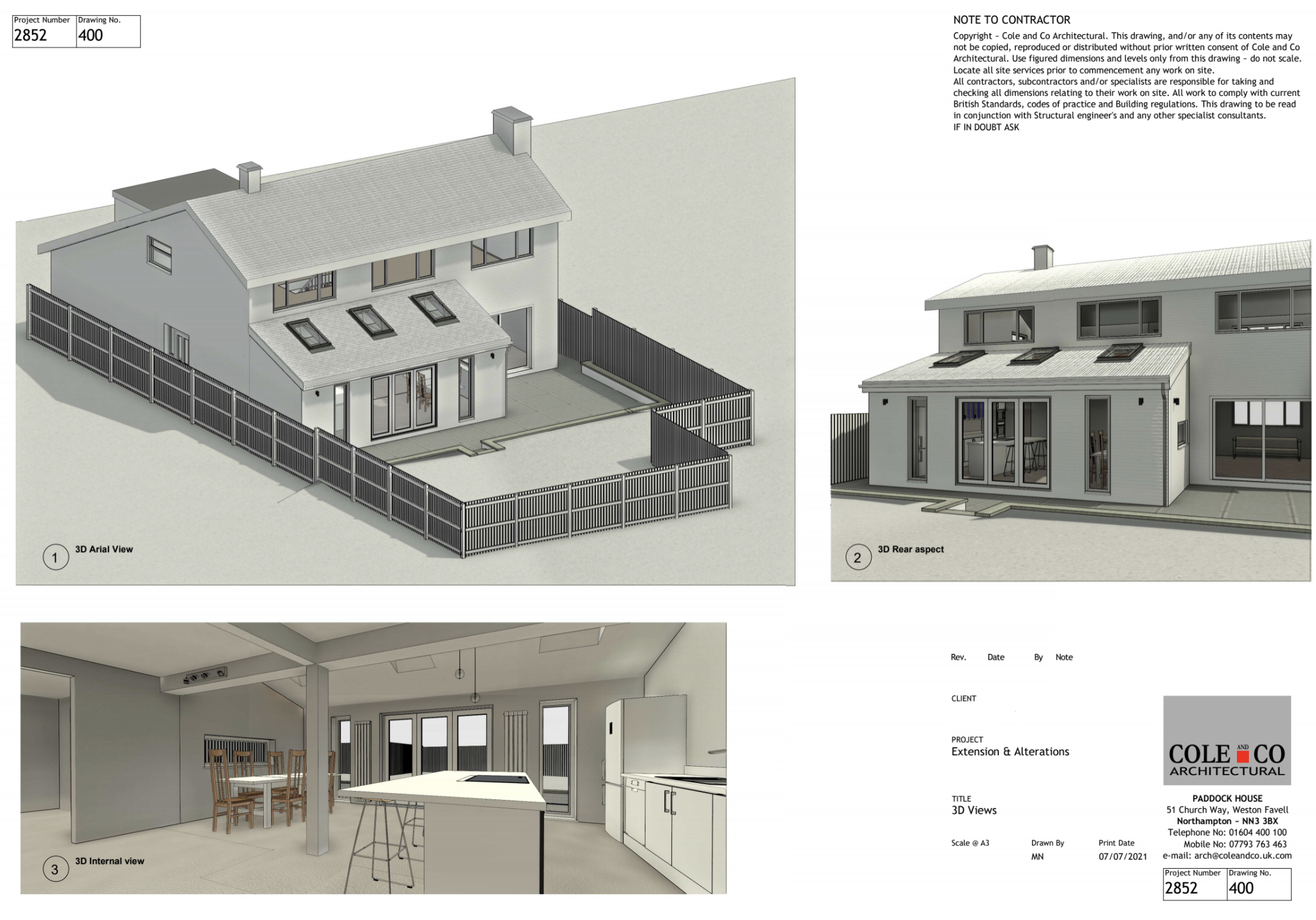

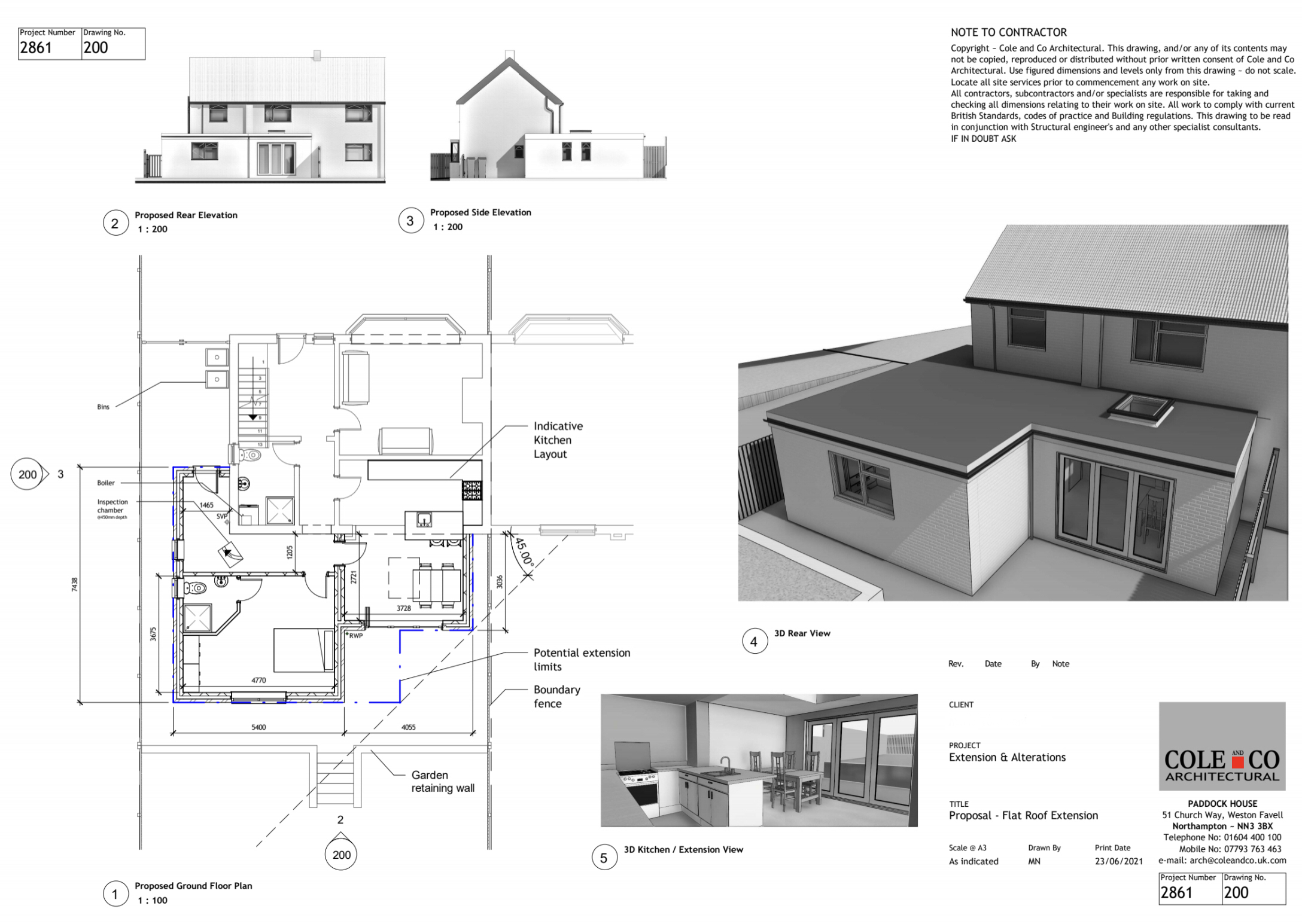

Scheme Proposal Plan, Elevations & 3D views

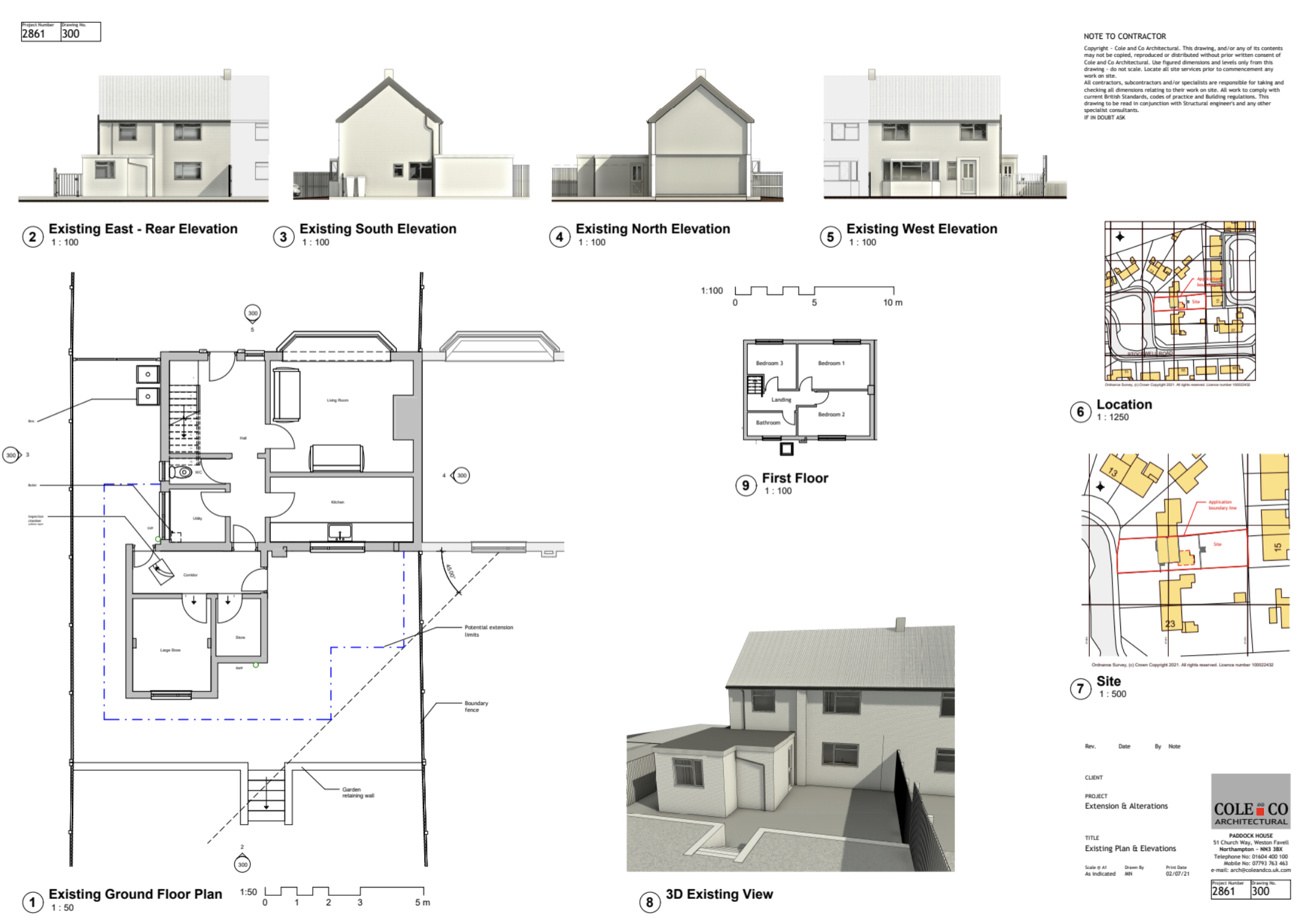

Planning submission for existing building

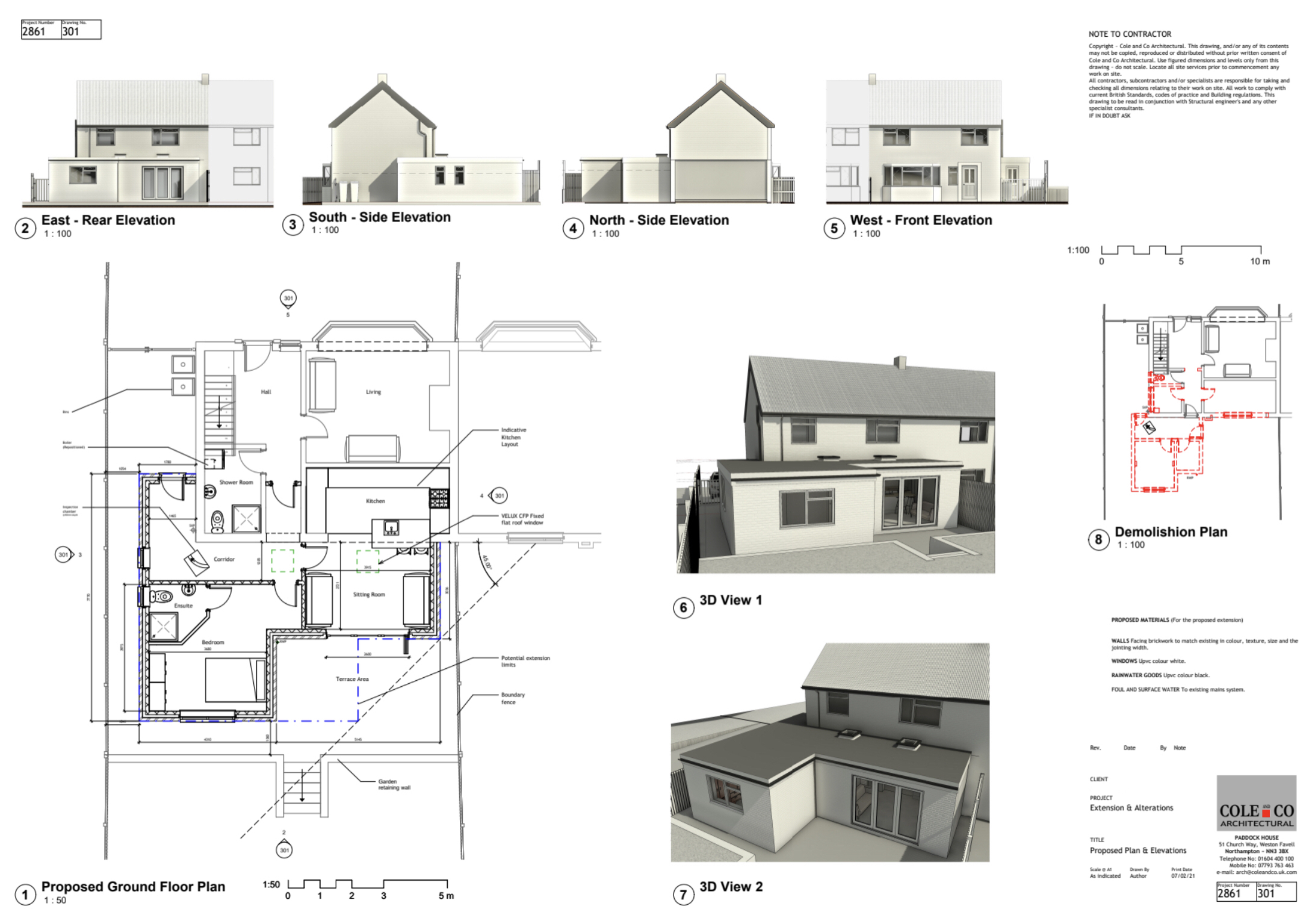

Planning submission for Proposed Scheme

The Orchard

Building Control drawings submitted and approved for a single storey mono-pitch extension and alterations to create large open plan Kitchen / Dinning Room

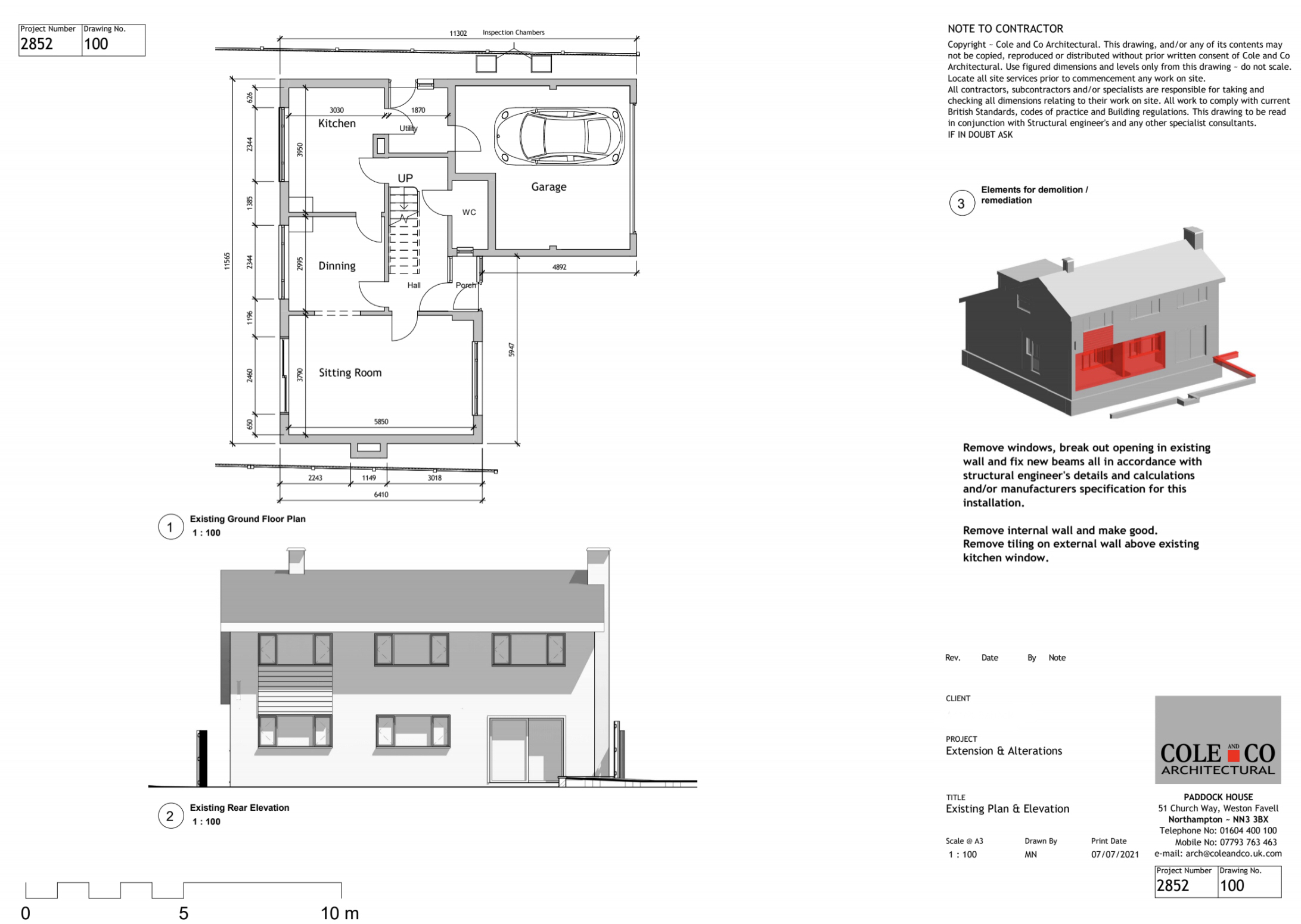

Existing Plan, Elevation & 3D demolition model

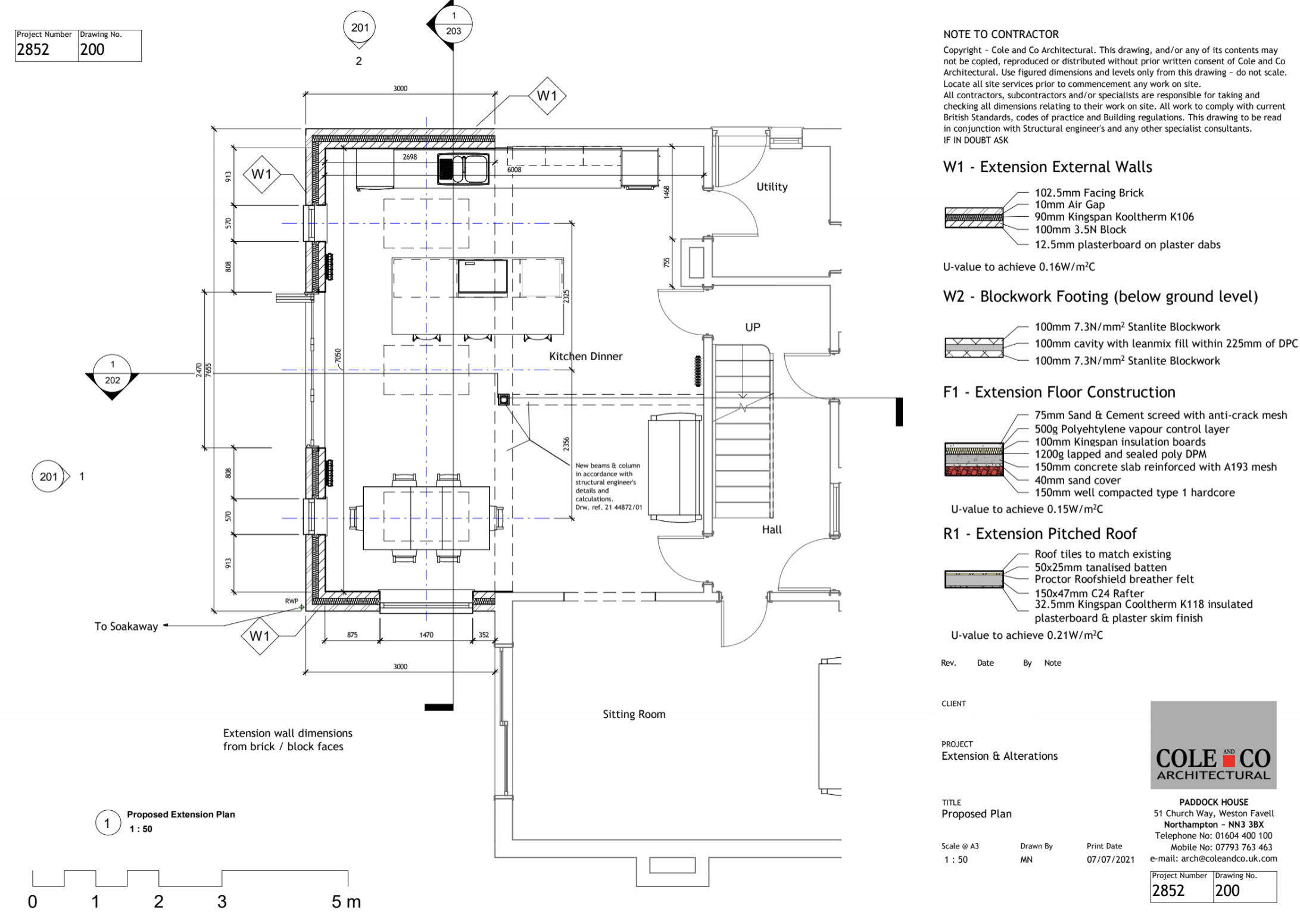

Detail proposed plan

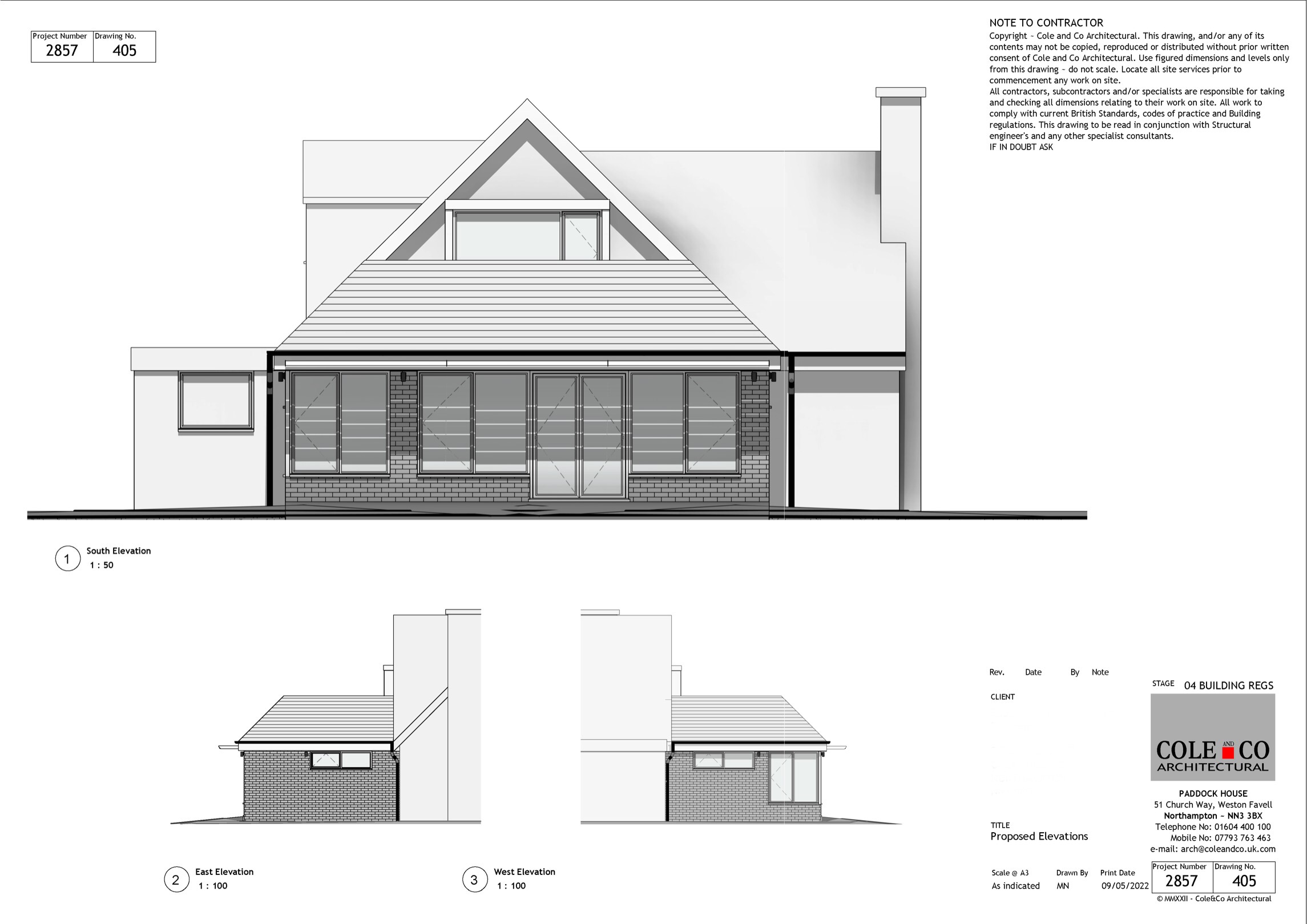

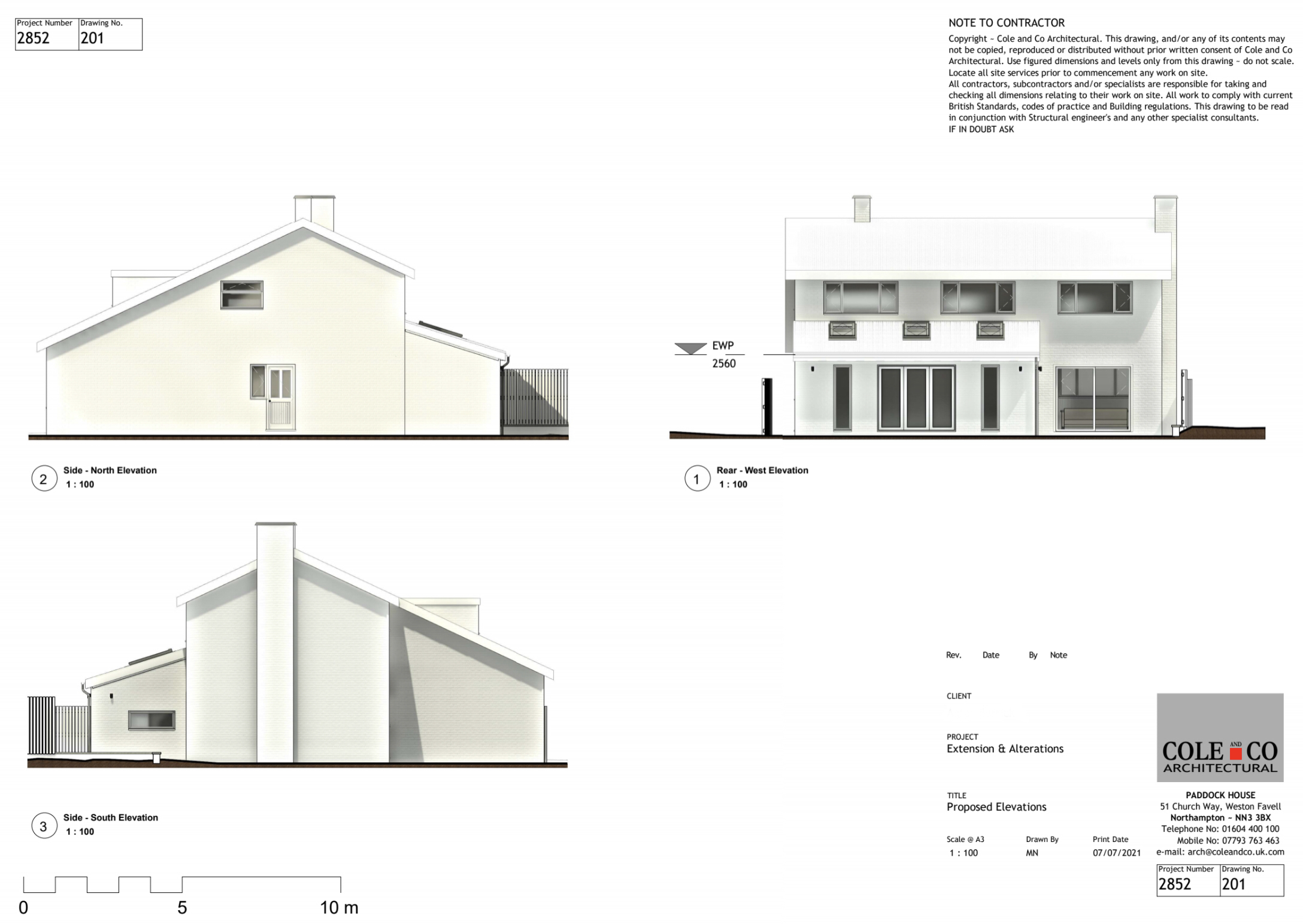

Proposed Elevations

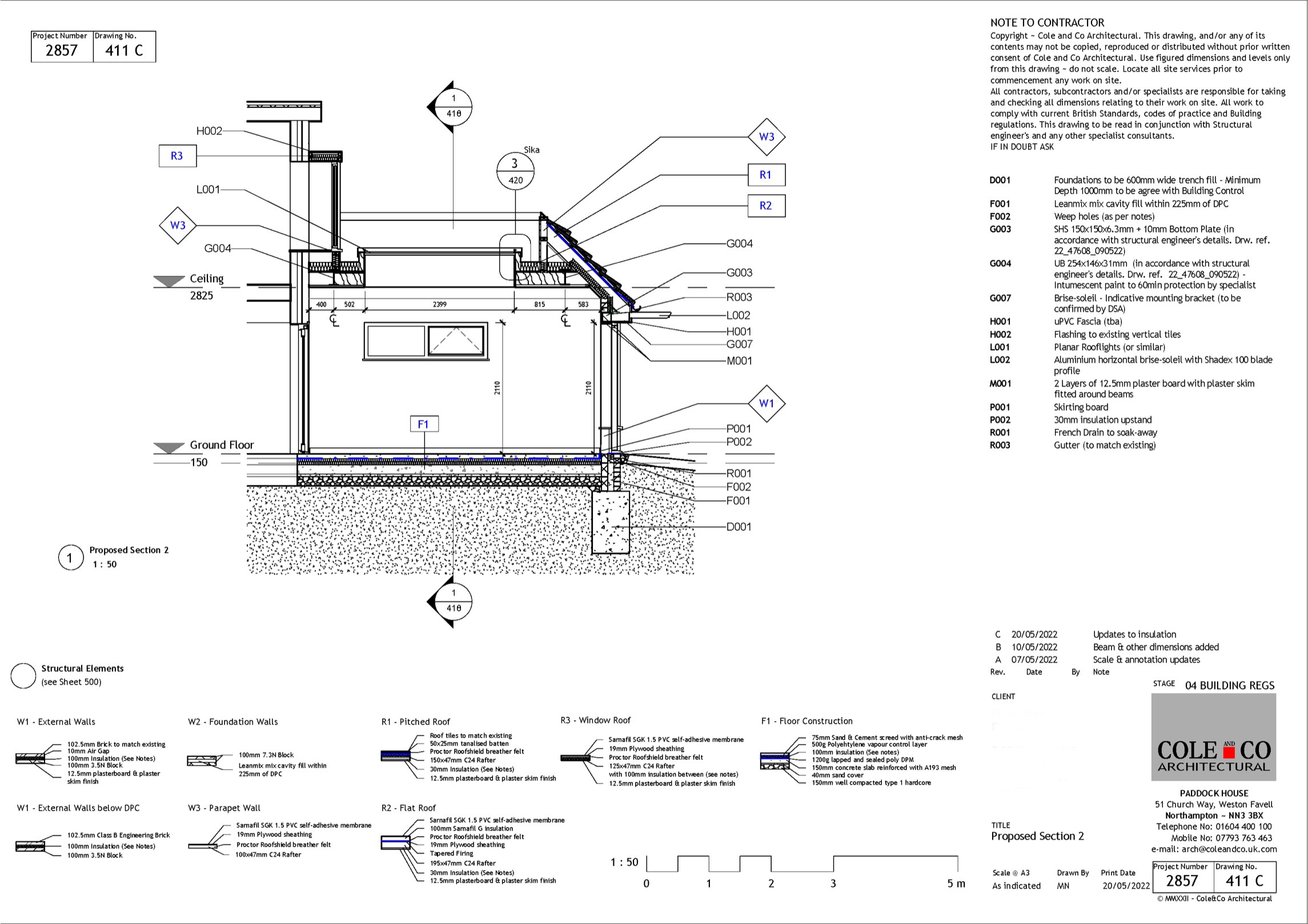

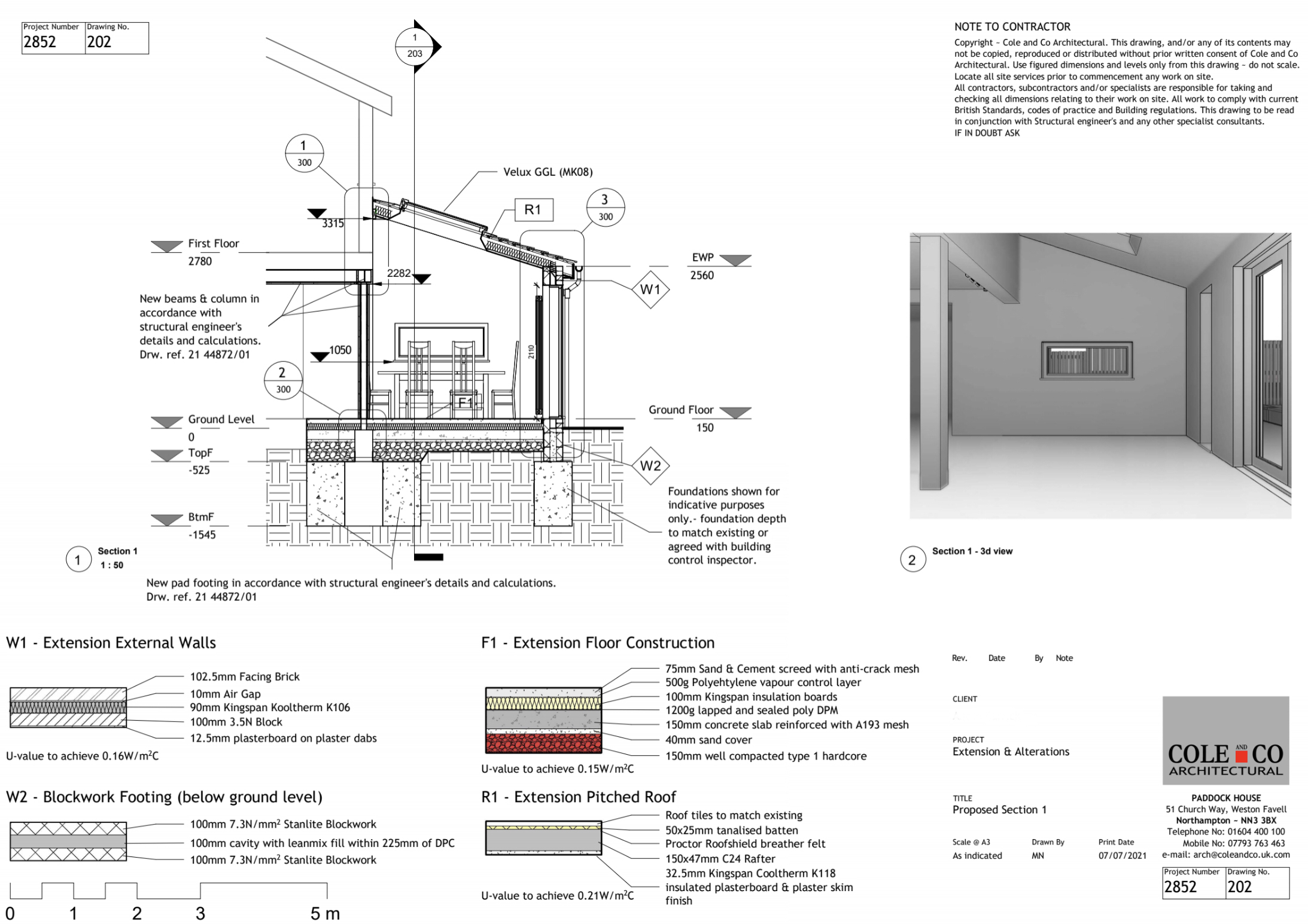

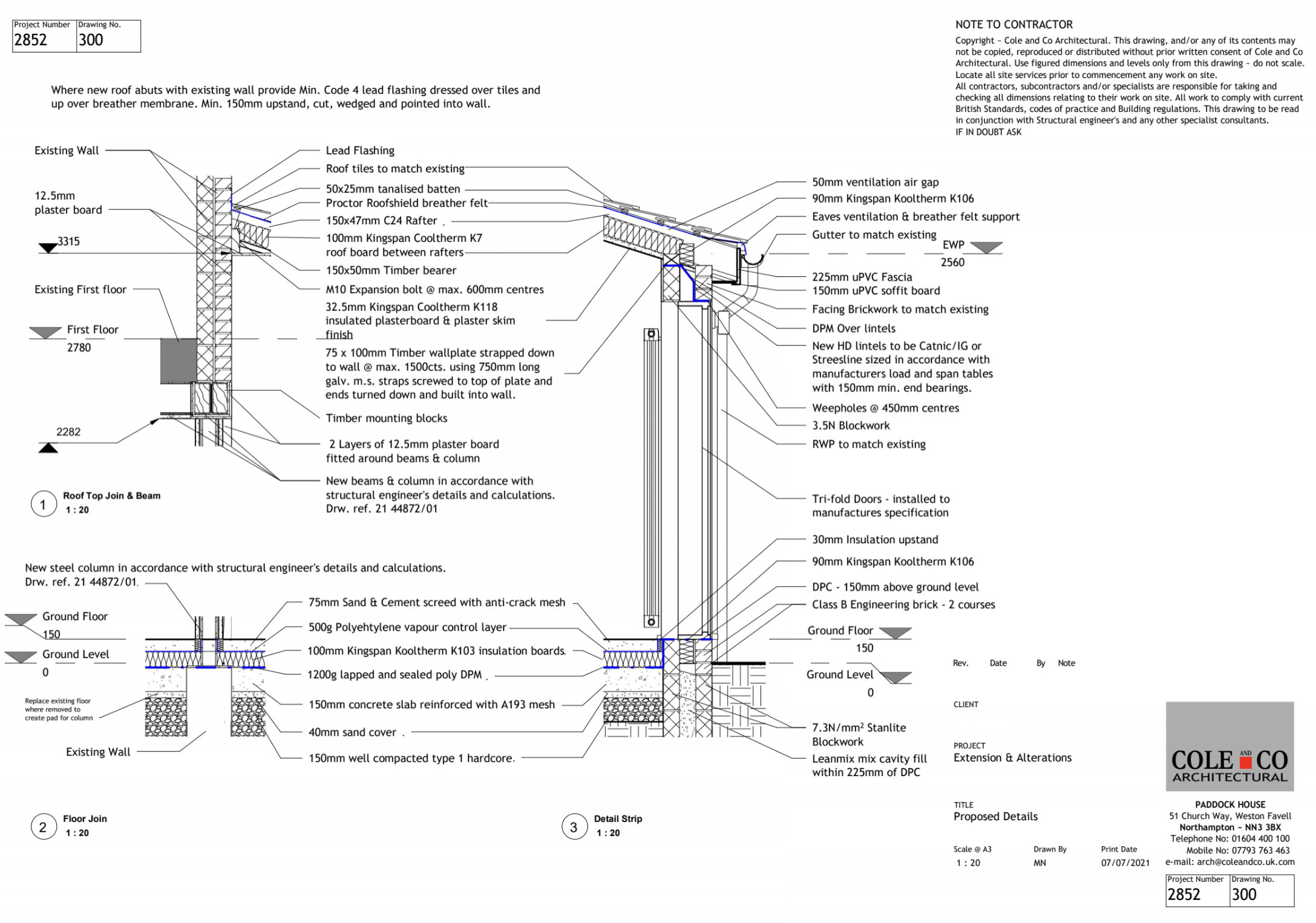

Detail Section - including elements from Structural Engineers report
Detail Callouts

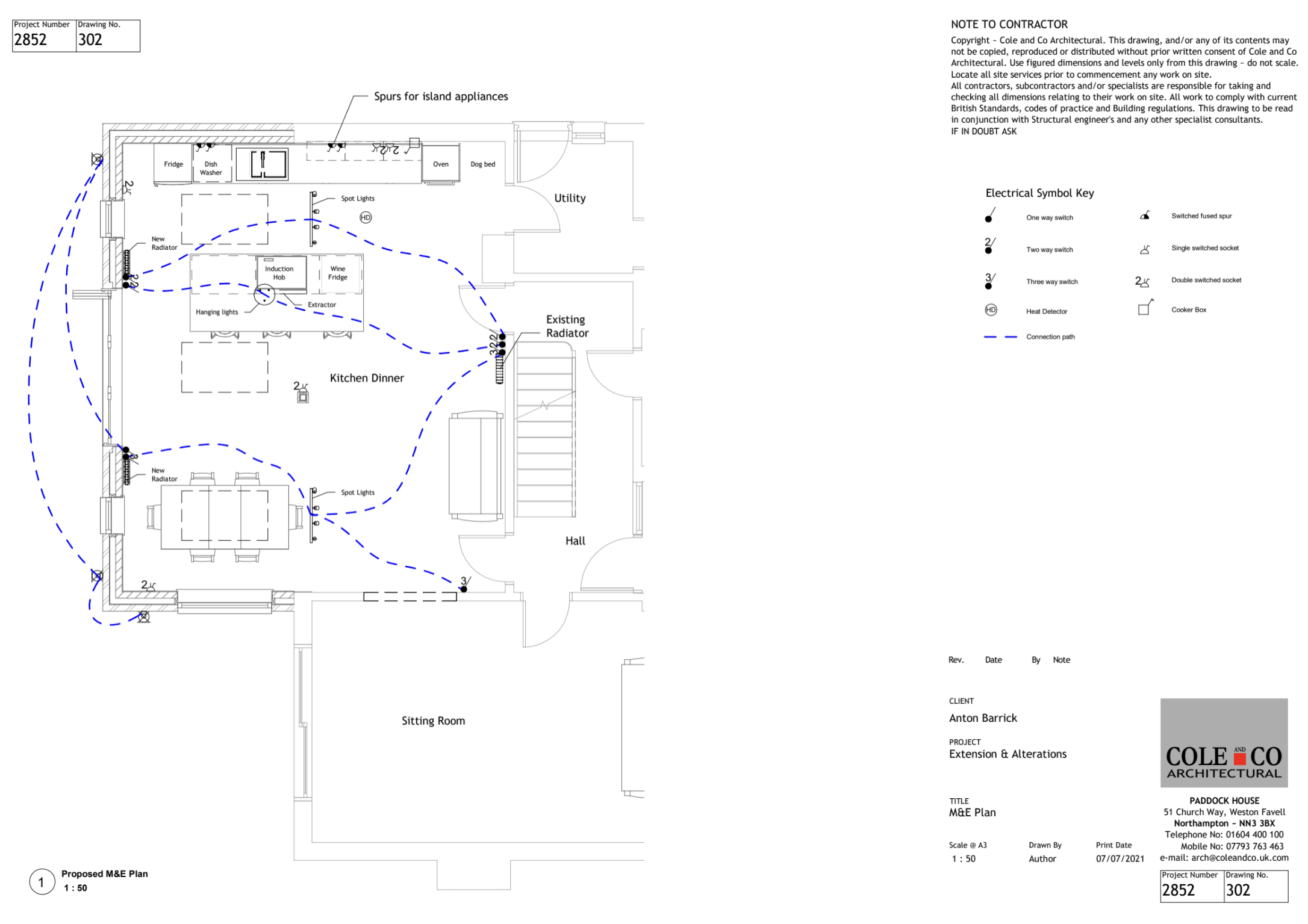

Electrical Plan
External & Internal 3D views

High Street

Building Control Submission for Garden Room Extension to Grade 2 listed cottage

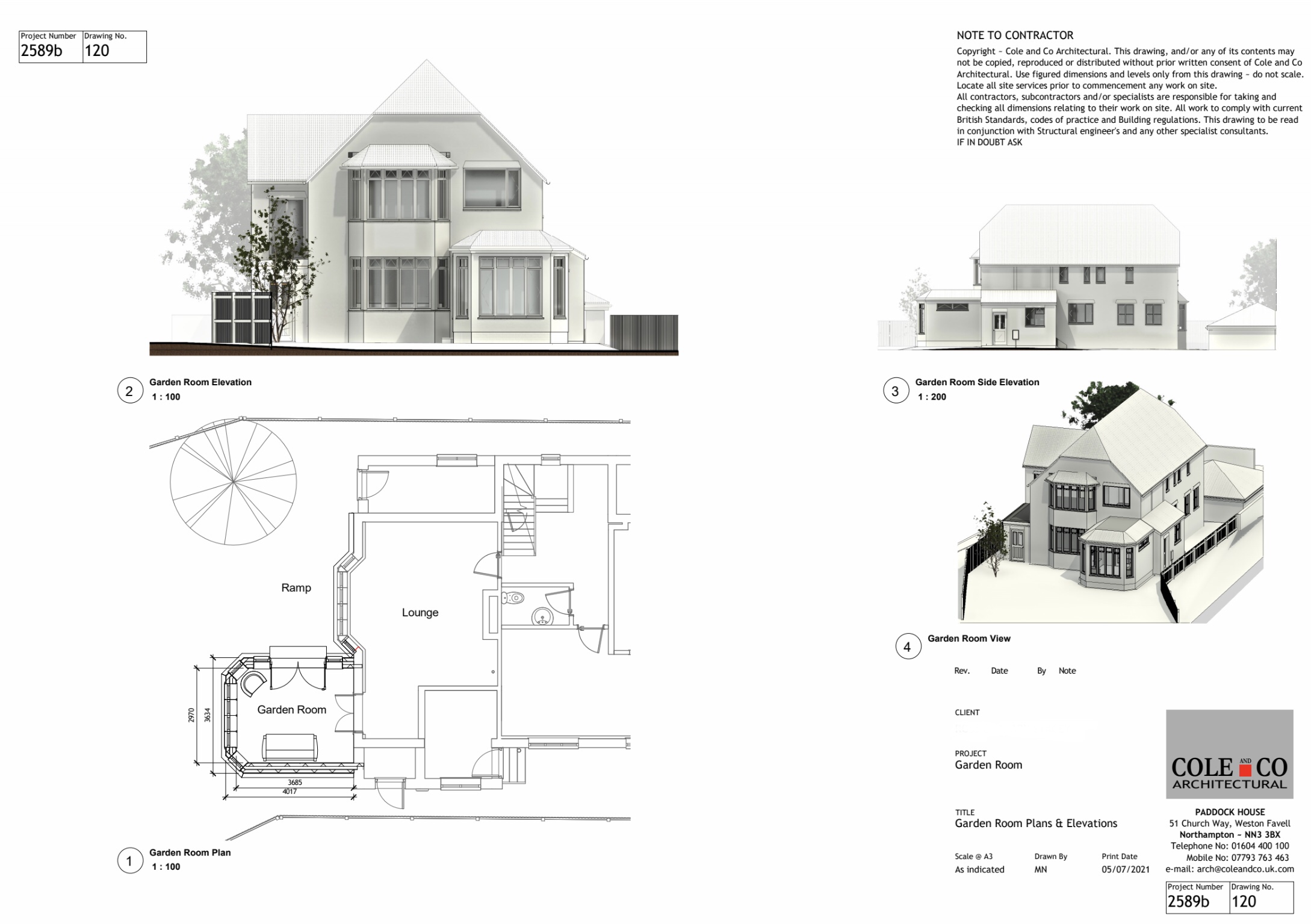

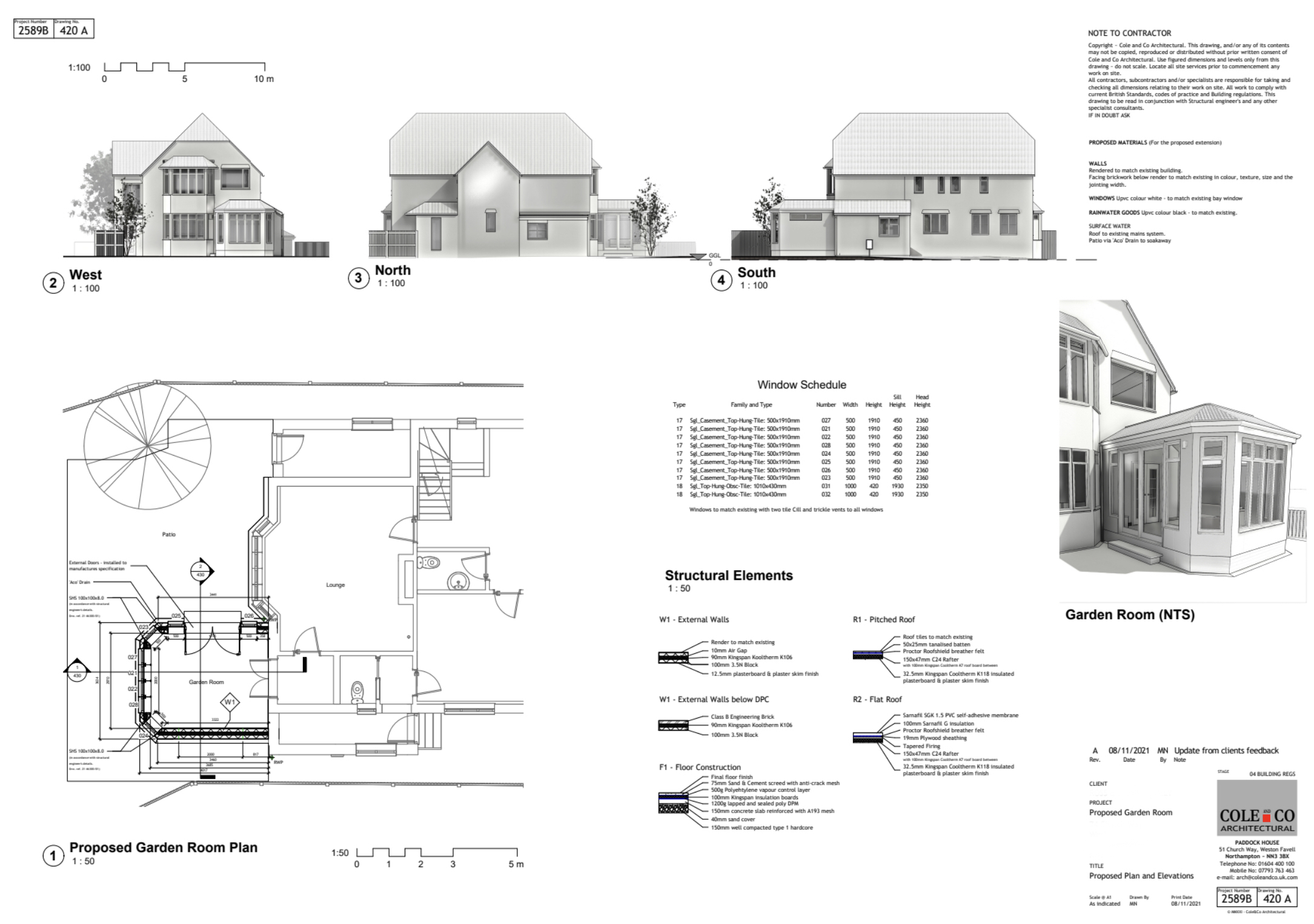

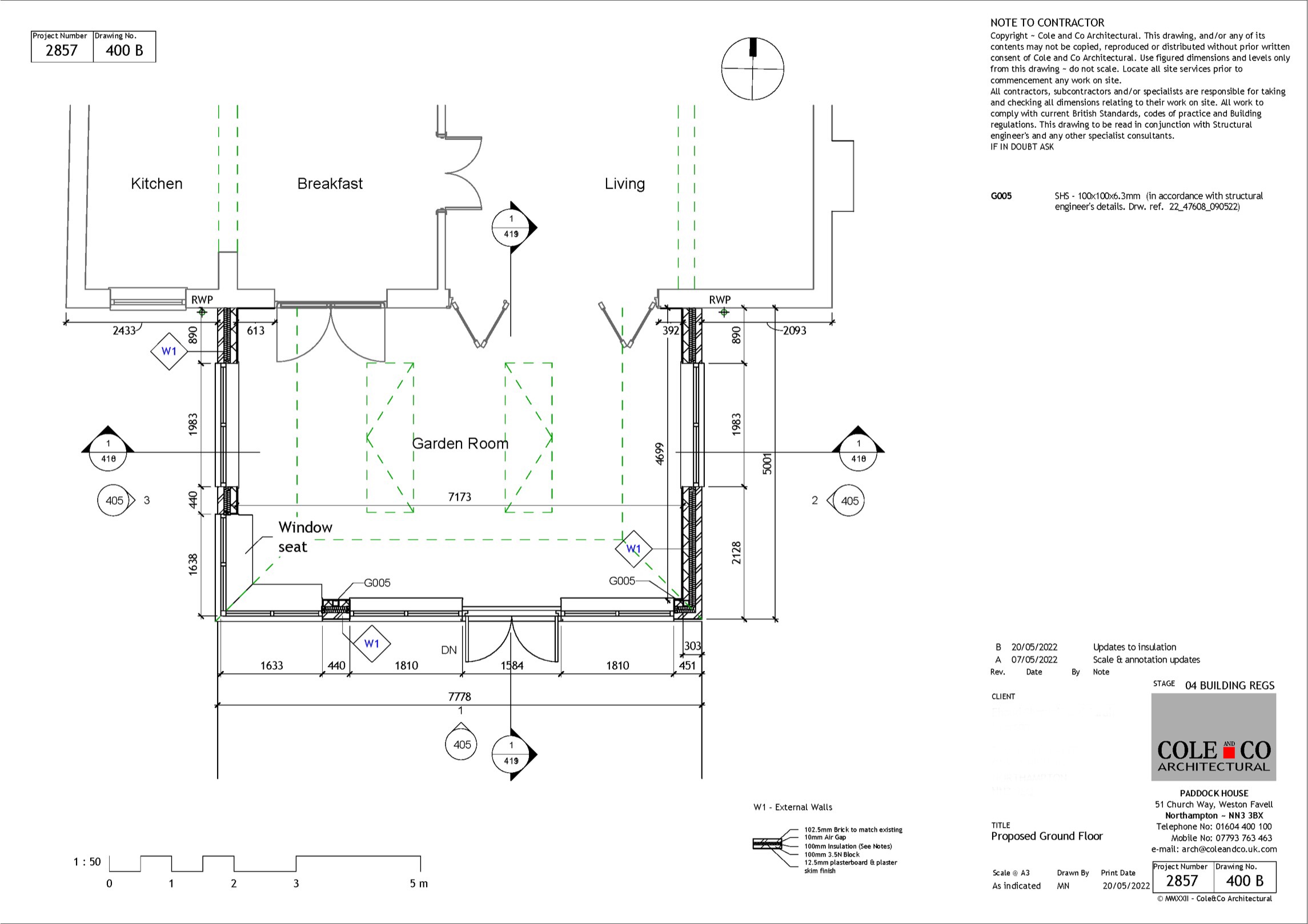

Proposed Plan, Elevation & 3D view

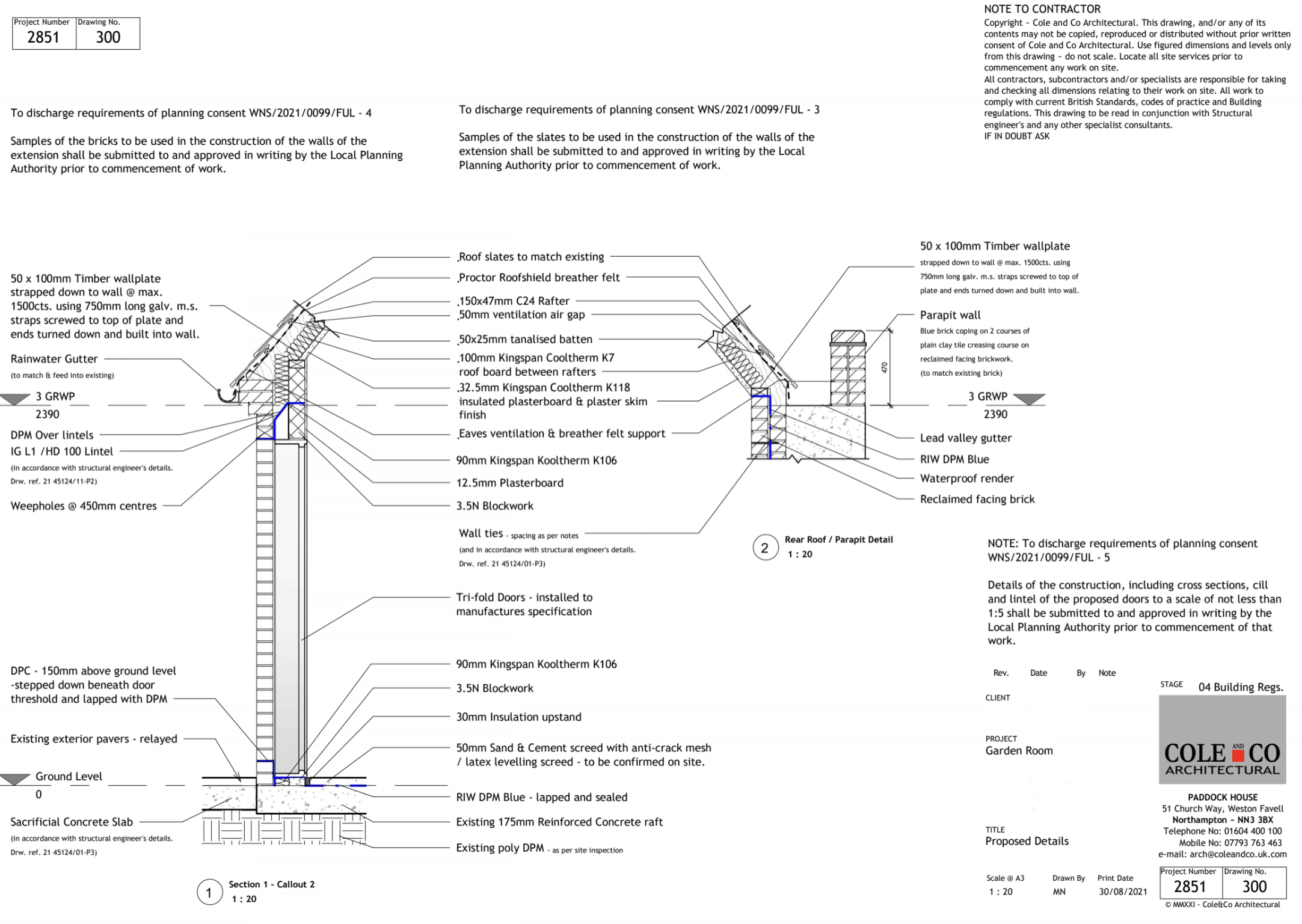

Detail Section
Detail Callouts

Church Way

Small Garden Room extension

Created a Scheme Proposal which was then developed, submitted for and received Planning Approval

Scheme Proposal - Plan, Elevations & 3D view.

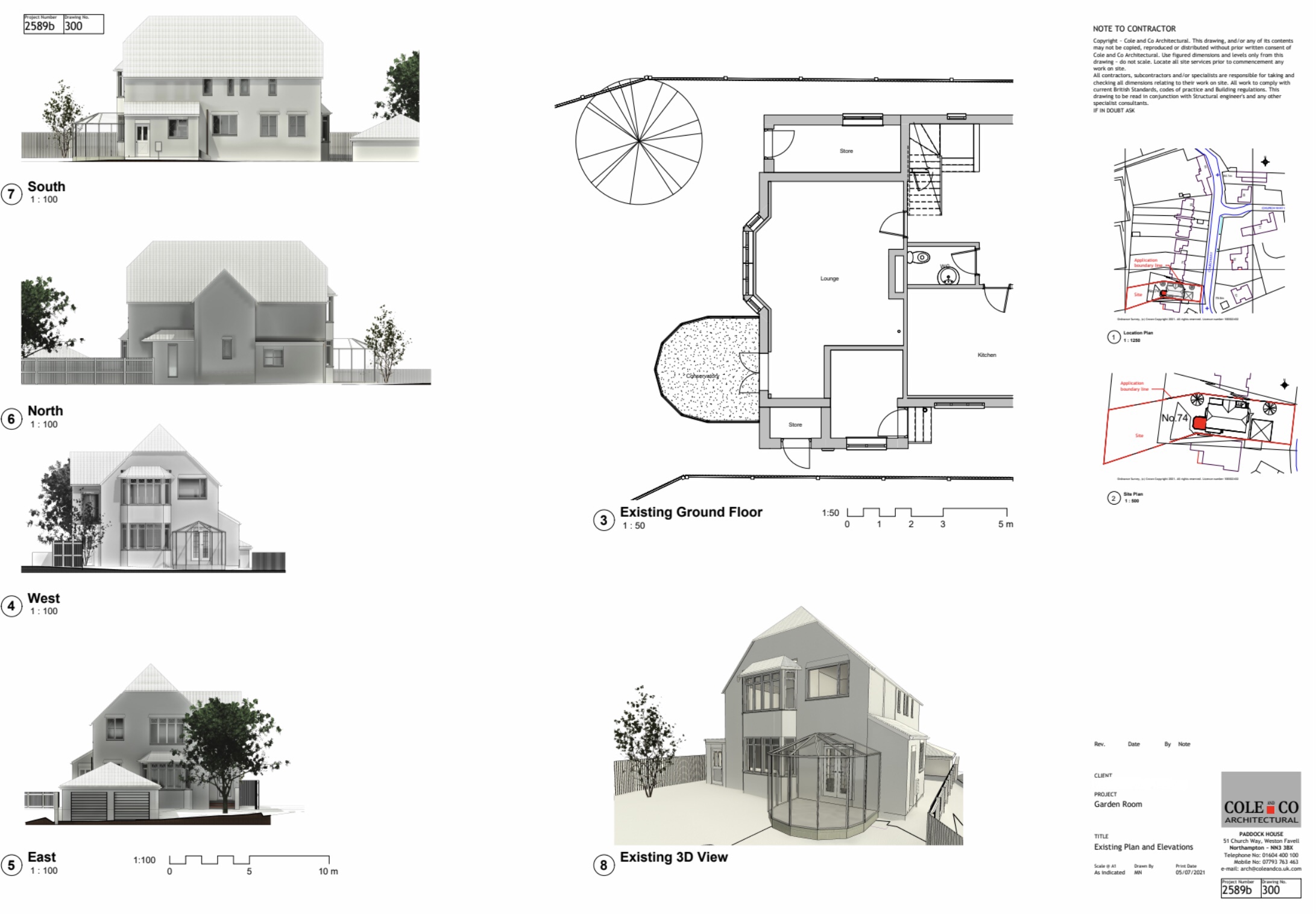

Planning Submission - Existing Plan & Elevations

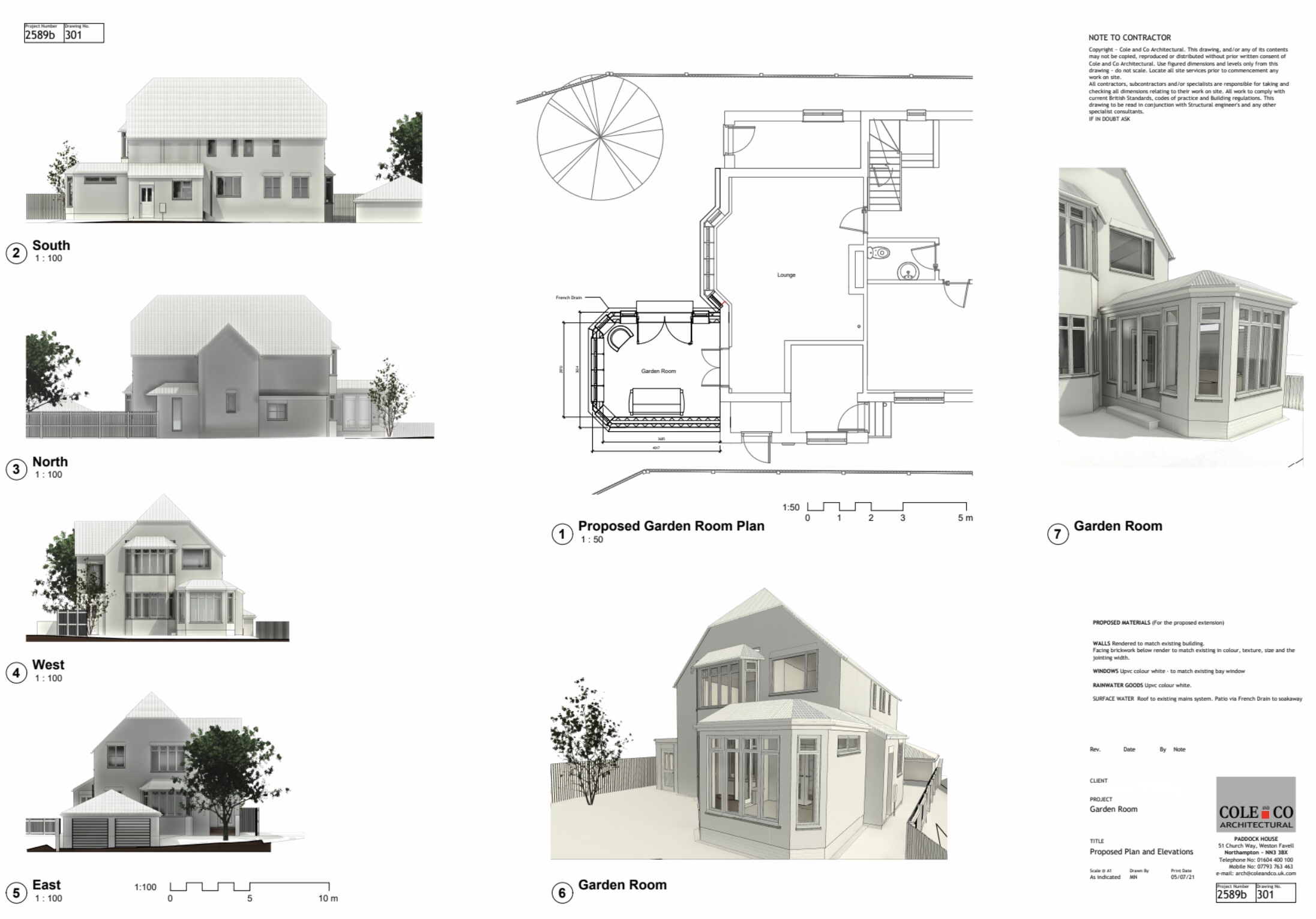

Planning Submission- Proposed Plan, Elevations & 3D views

Further detail was then included in the Revit model to generate the drawings for Building Control submission

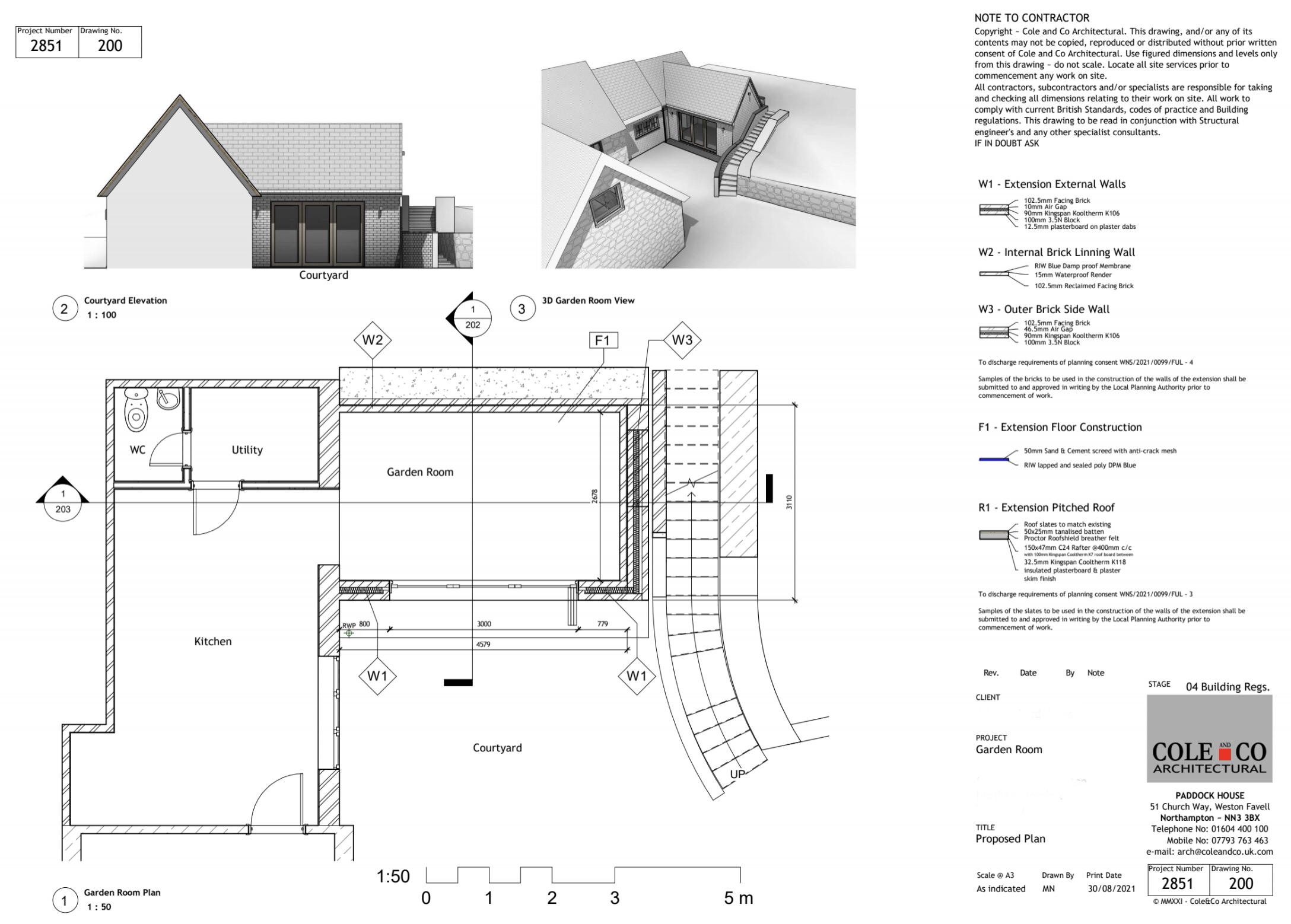

Detail plan and elevations

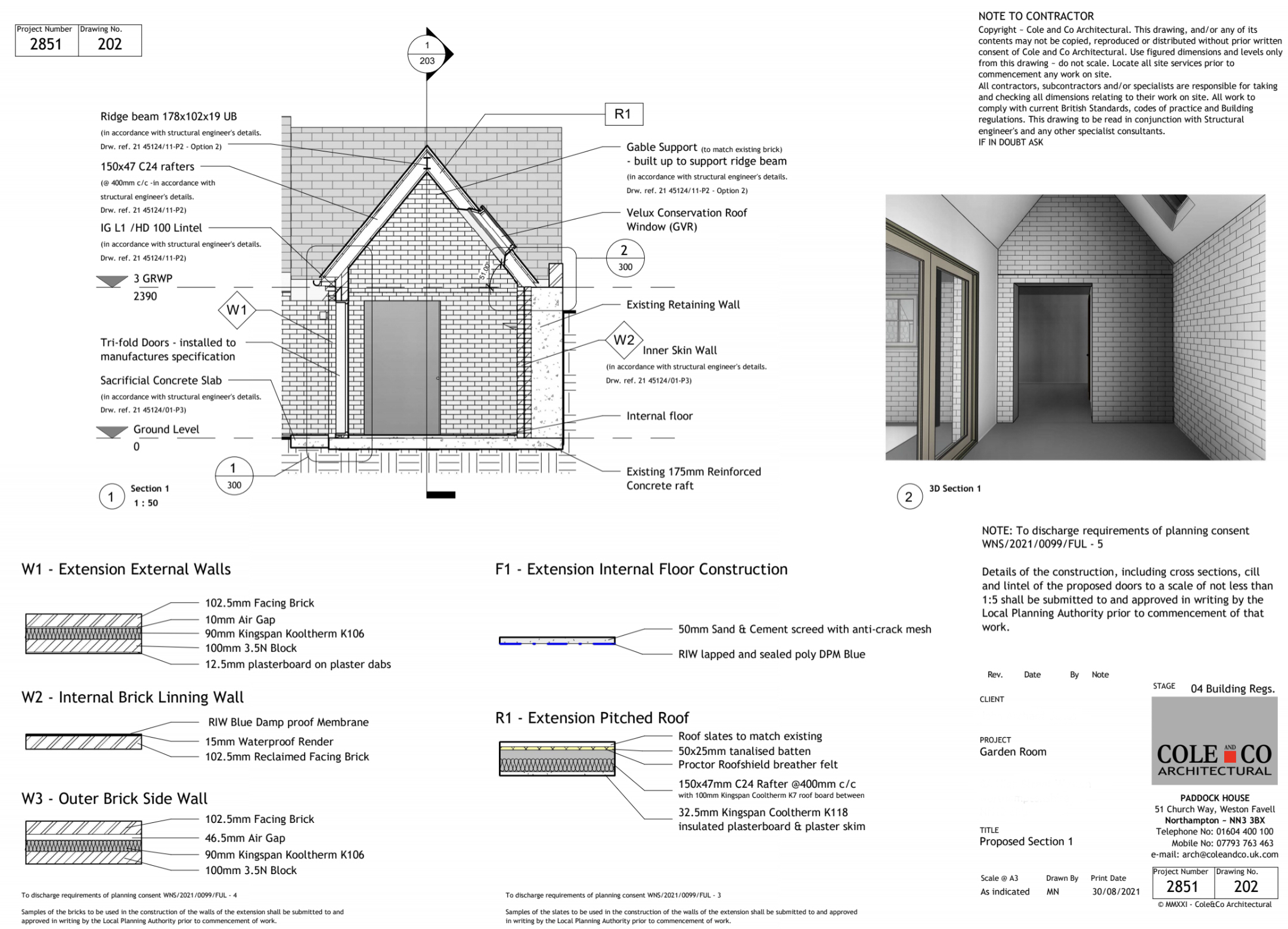

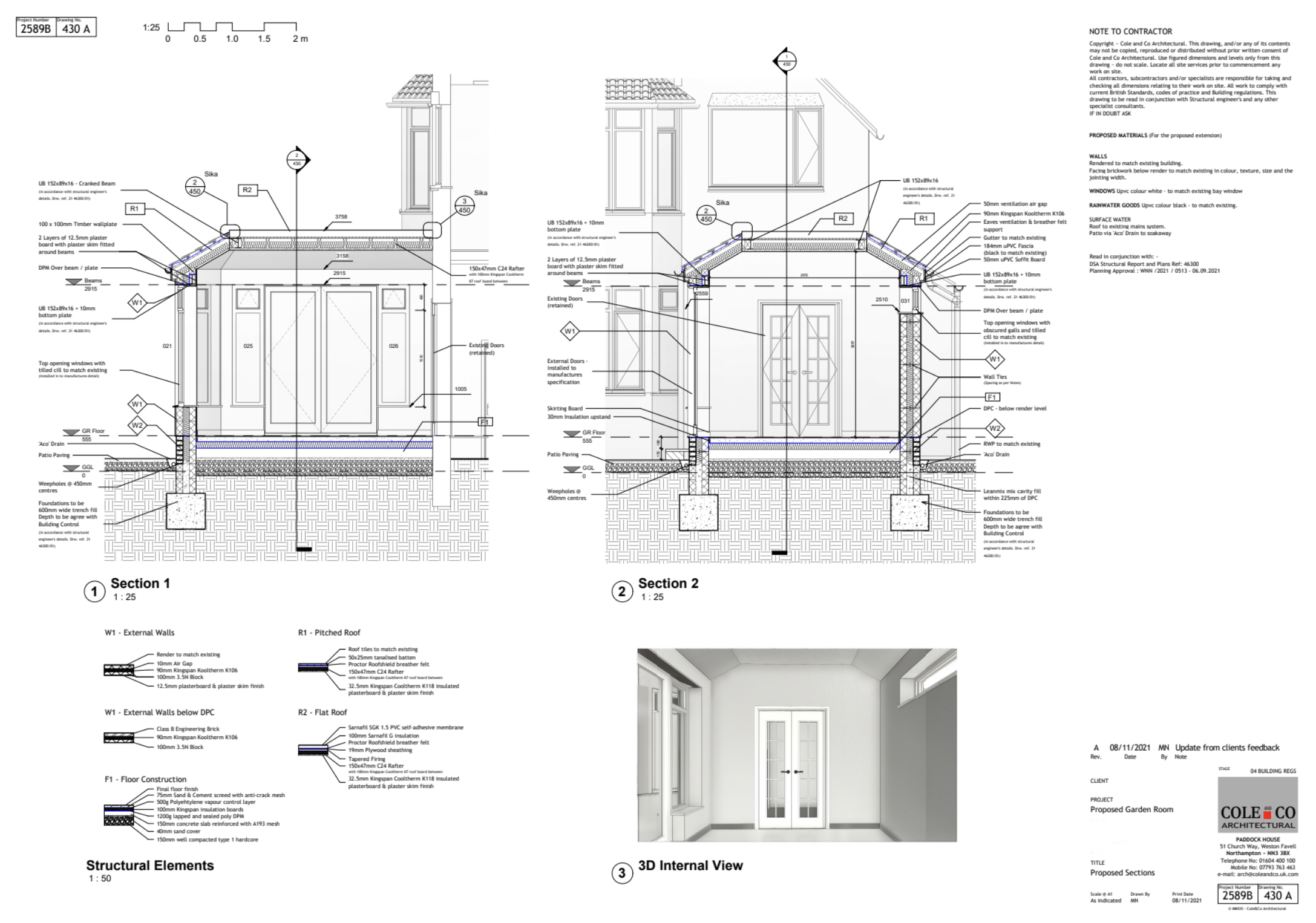

Detail Sections

Great Houghton

Extensive 2 storey extension and internal layout changes to a detached property

Using drawings and a point cloud generated by a survey company a scheme proposal was developed covering existing, demolition and proposed aspects of the scheme.

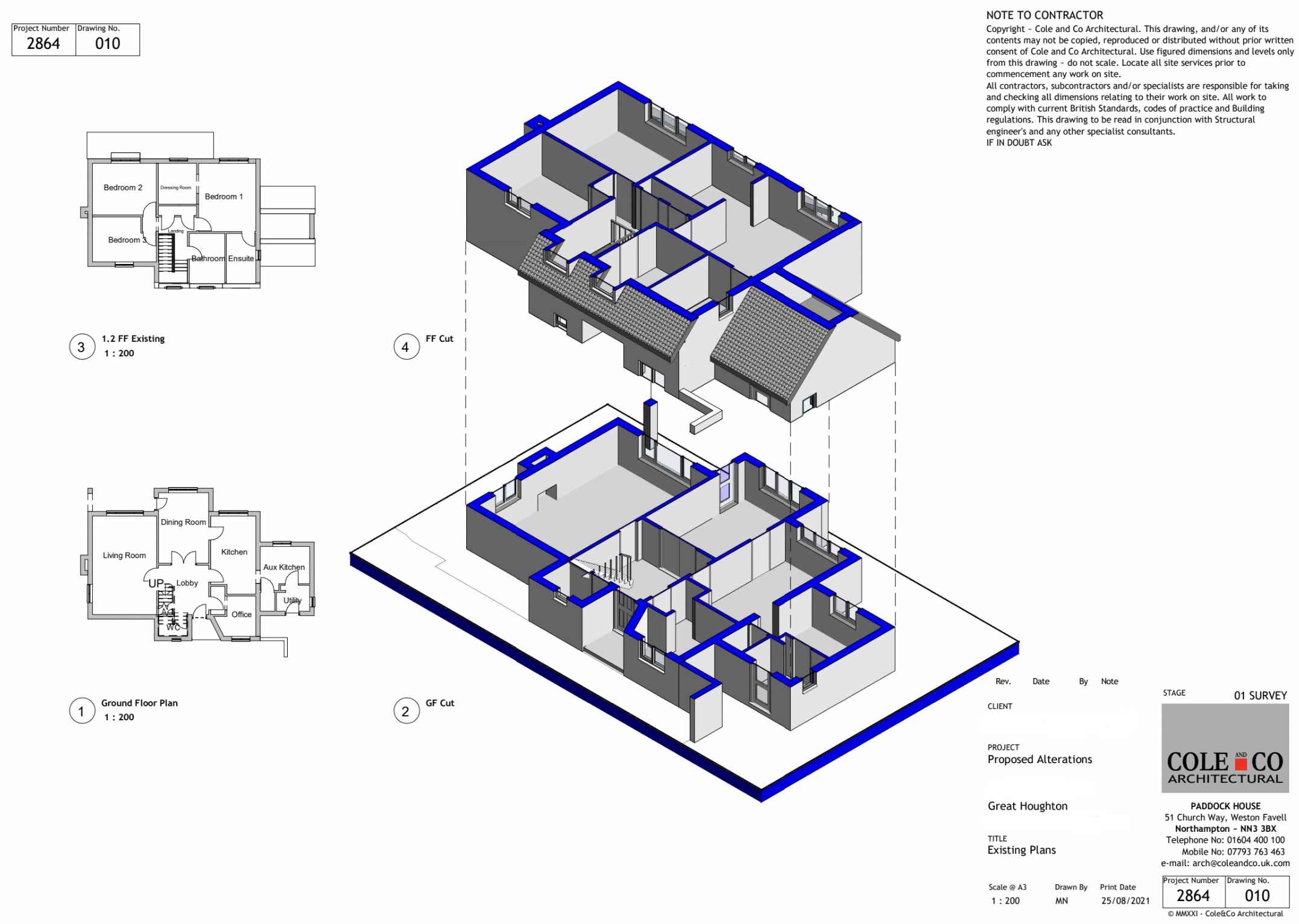

Existing plans & cutaway view

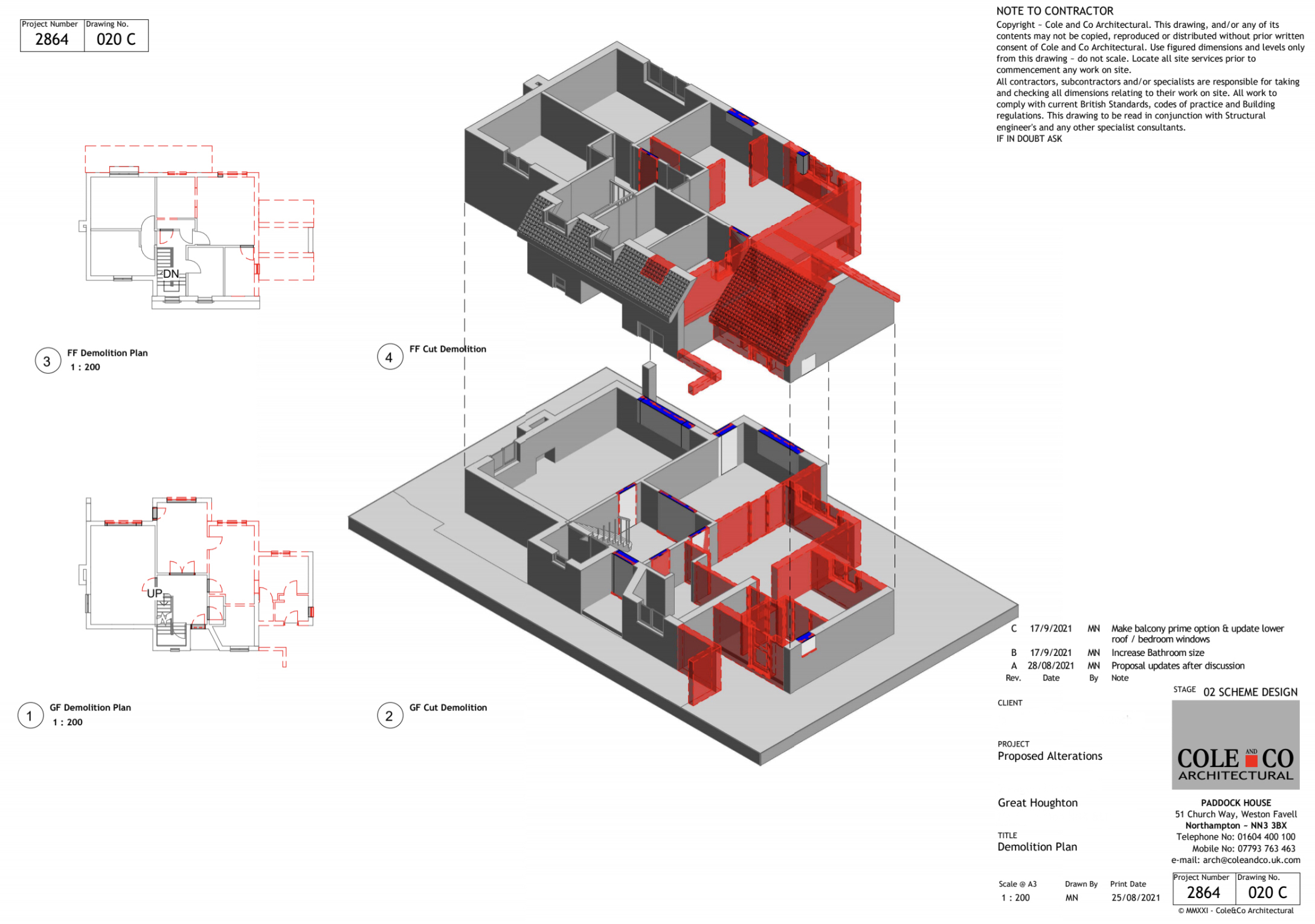

Demolition plans & cutaway view

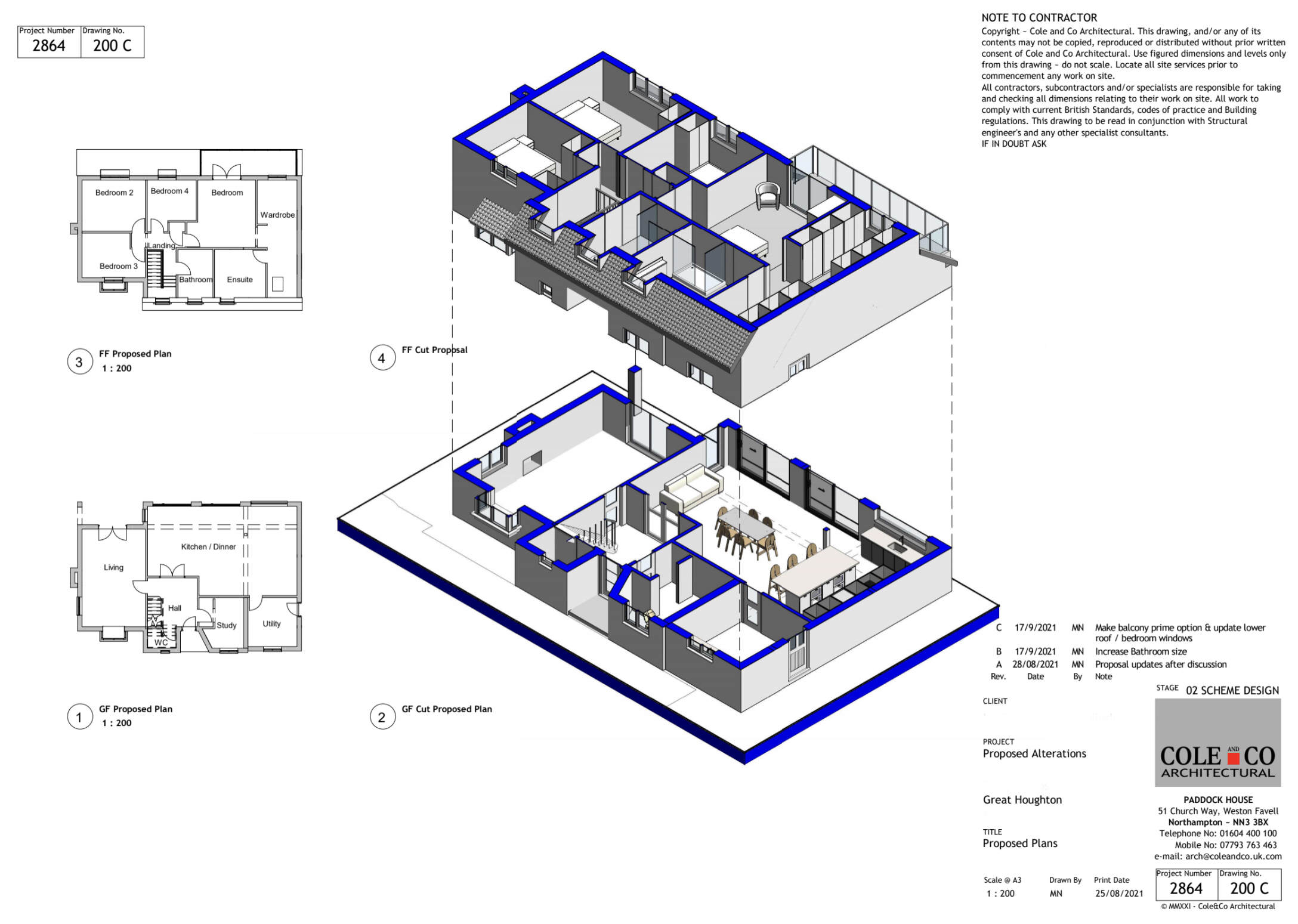

Proposed plans & cutaway view

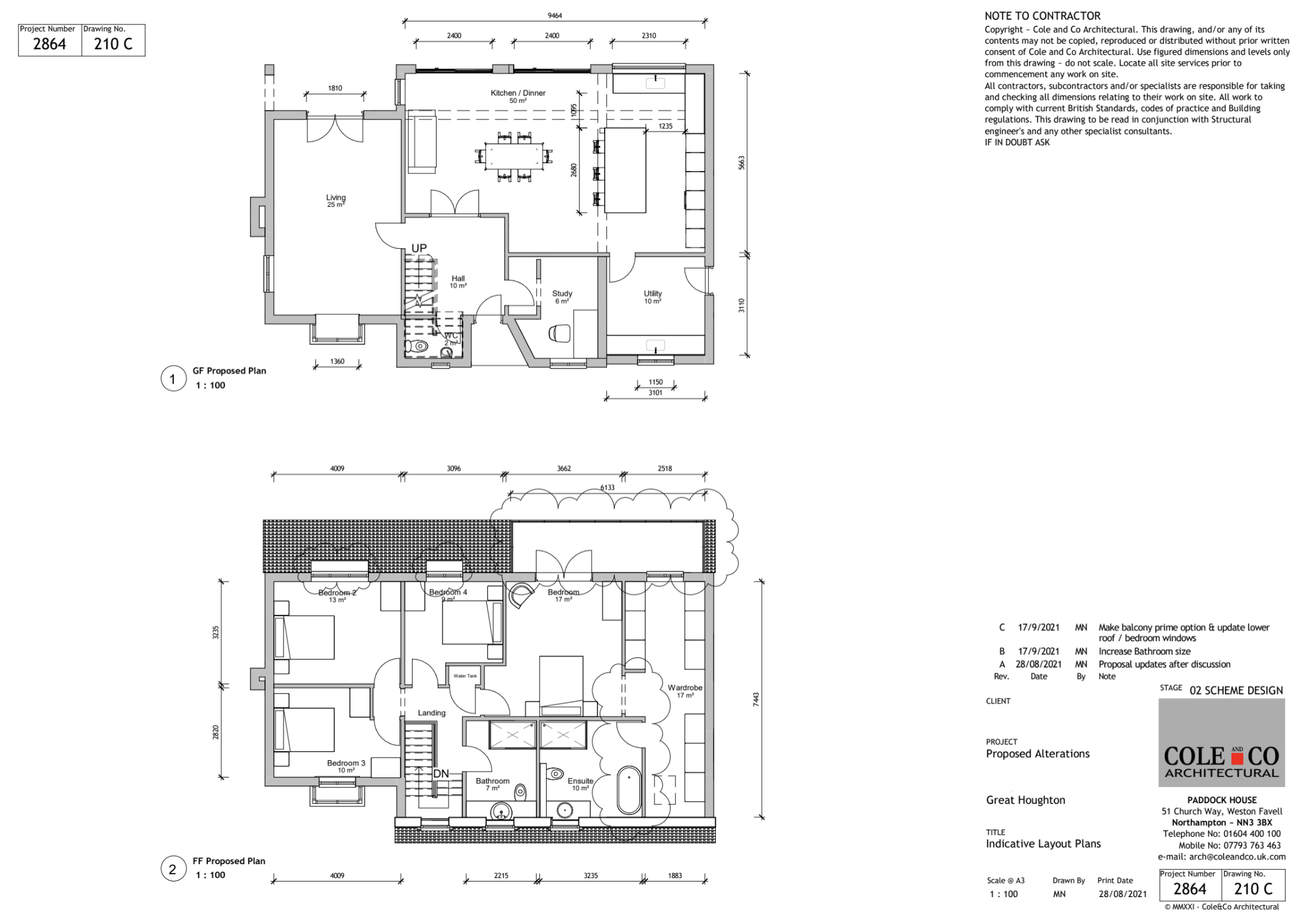

Detailed proposed plans

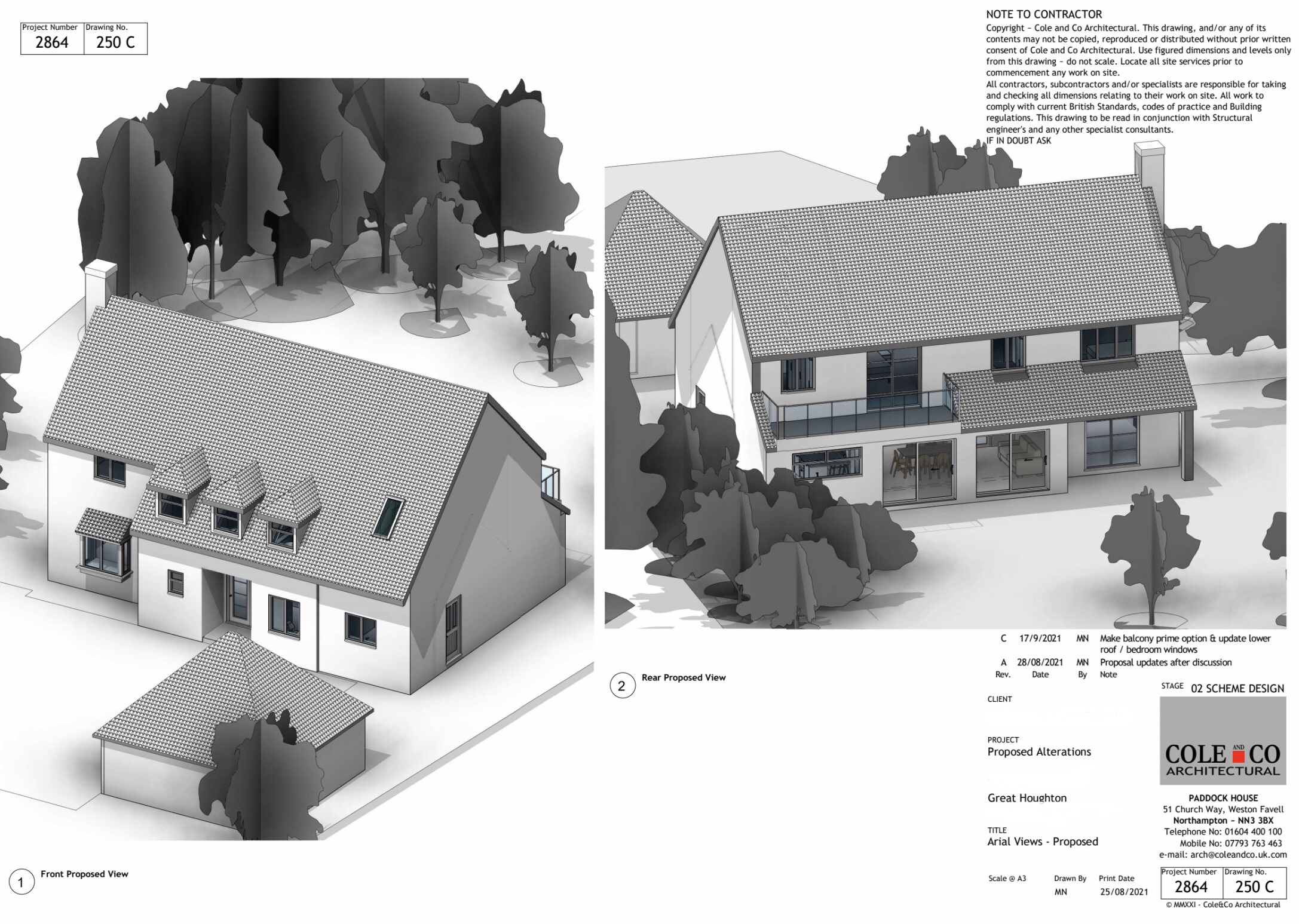

3D views

Newton Street

Design Scheme for an Extension and renovations to a terraced property. To initially provide an updated Kitchen and a garden Study / Studio room with the potential for a future conversion to an accessible bedroom with ensuite. Key design requirement to provide a single floor level across the ground floor.

Used Revit options to show both initial and future requirements for the Scheme proposal.

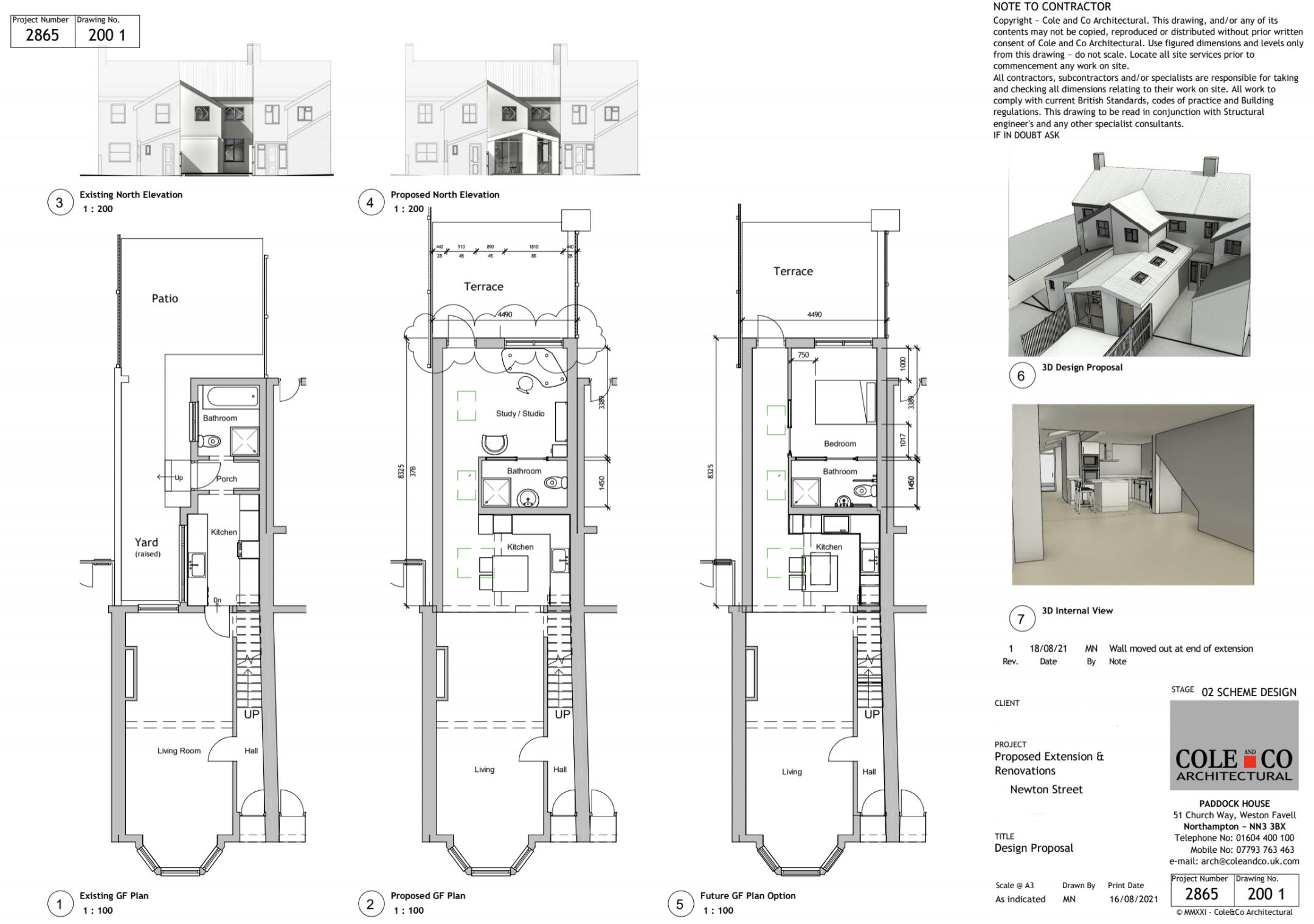

Existing & Option plans, Elevations and 3D views

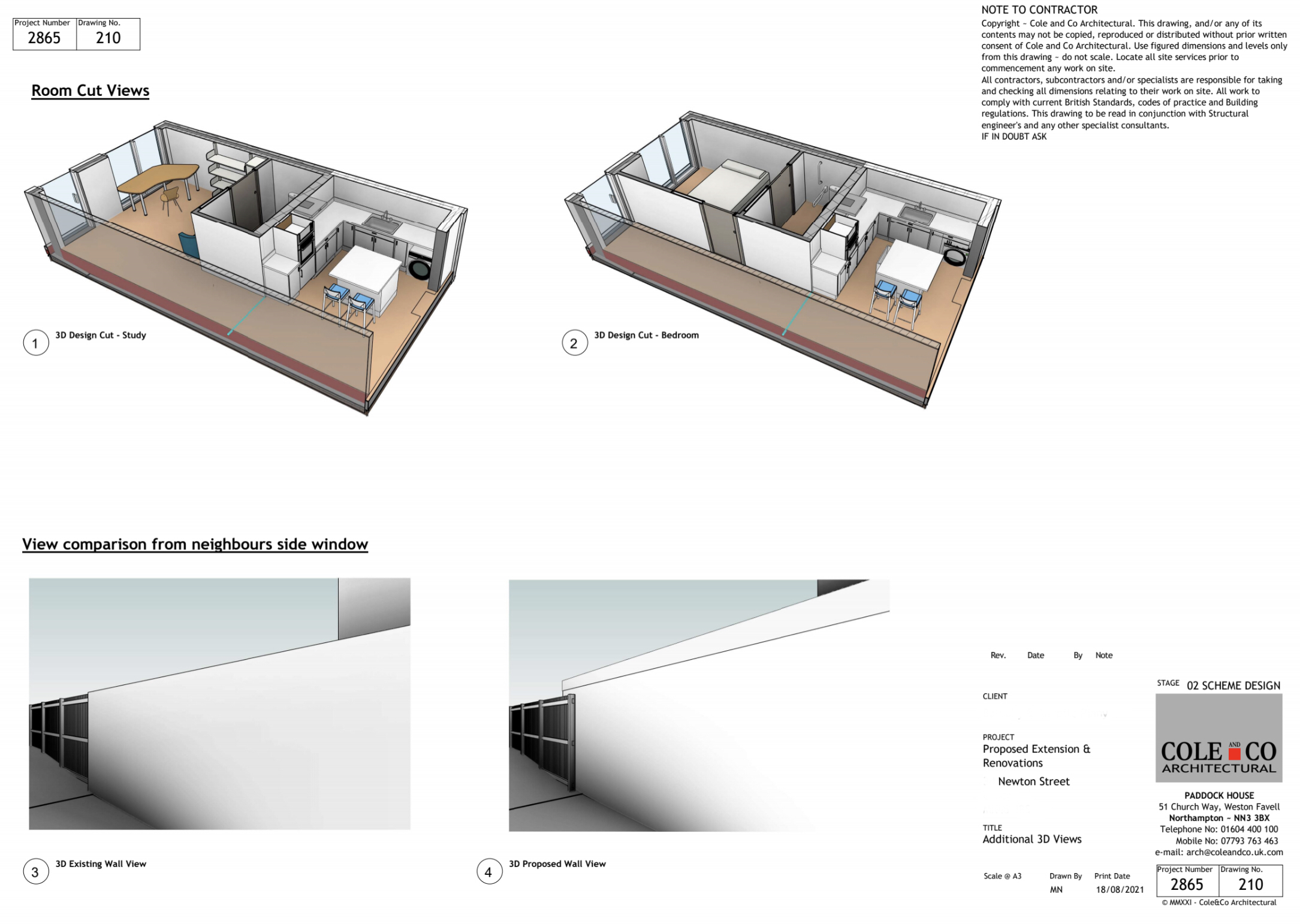

3D cutaway views of the options and impact on neighbouring property

After updates and approval of the scheme drawings were created and submitted for planning approval.

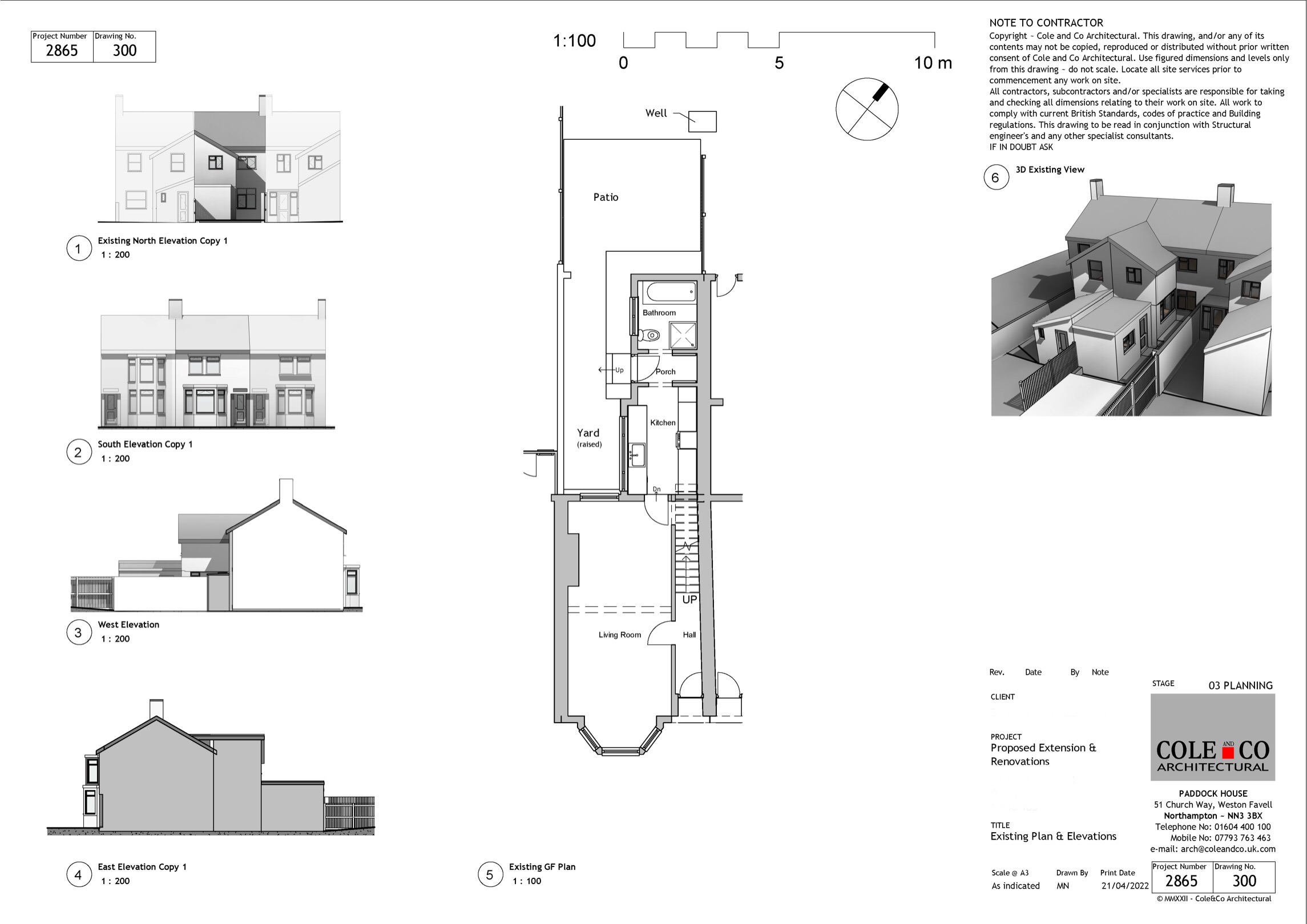

Existing plan, elevations & 3d views for planning approval.

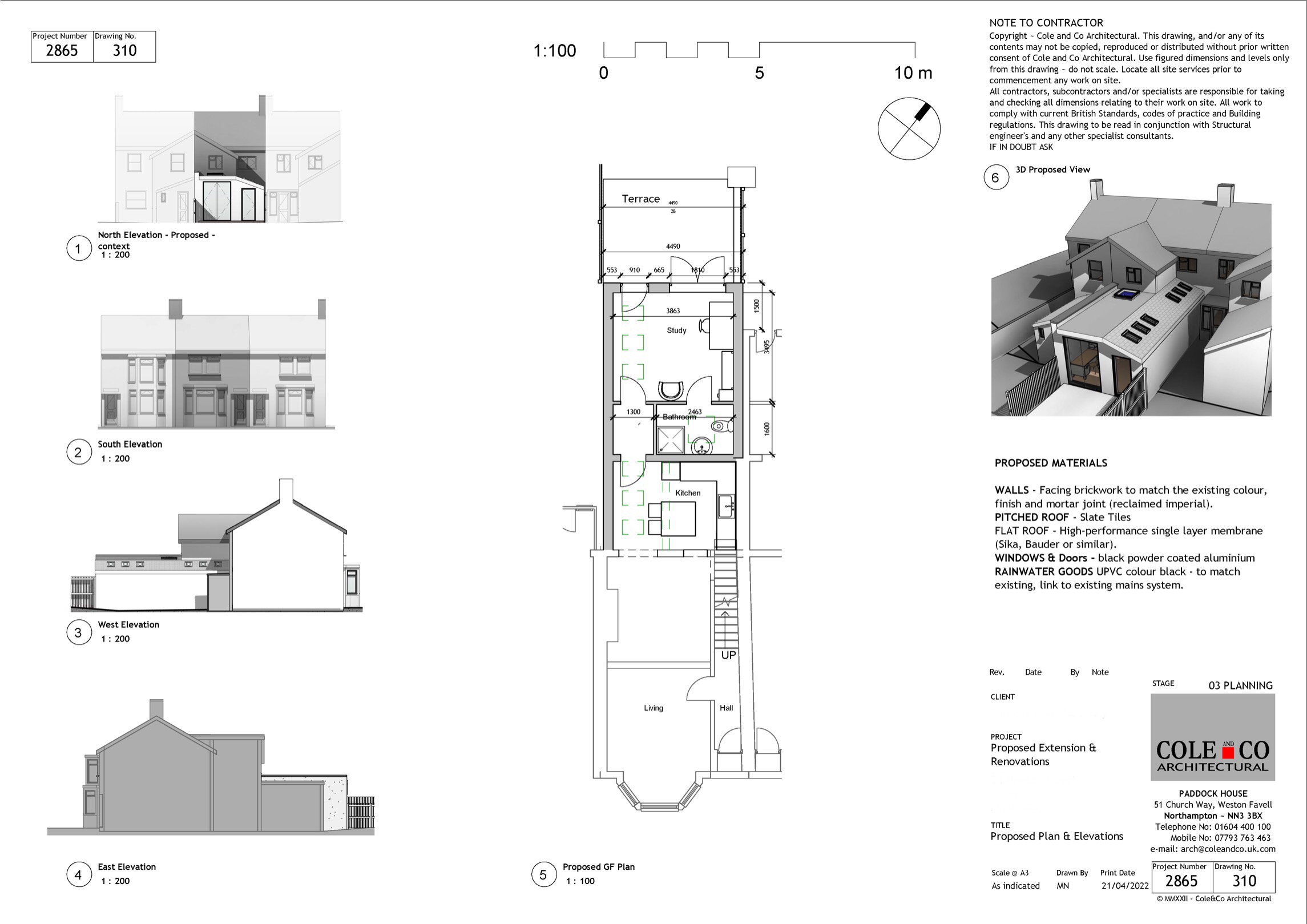

Proposed plan, elevations & 3d views for planning approval.

Planning Approval having been granted additional detail drawings including plans and sections were created for Building Control submission and construction cost quotations.

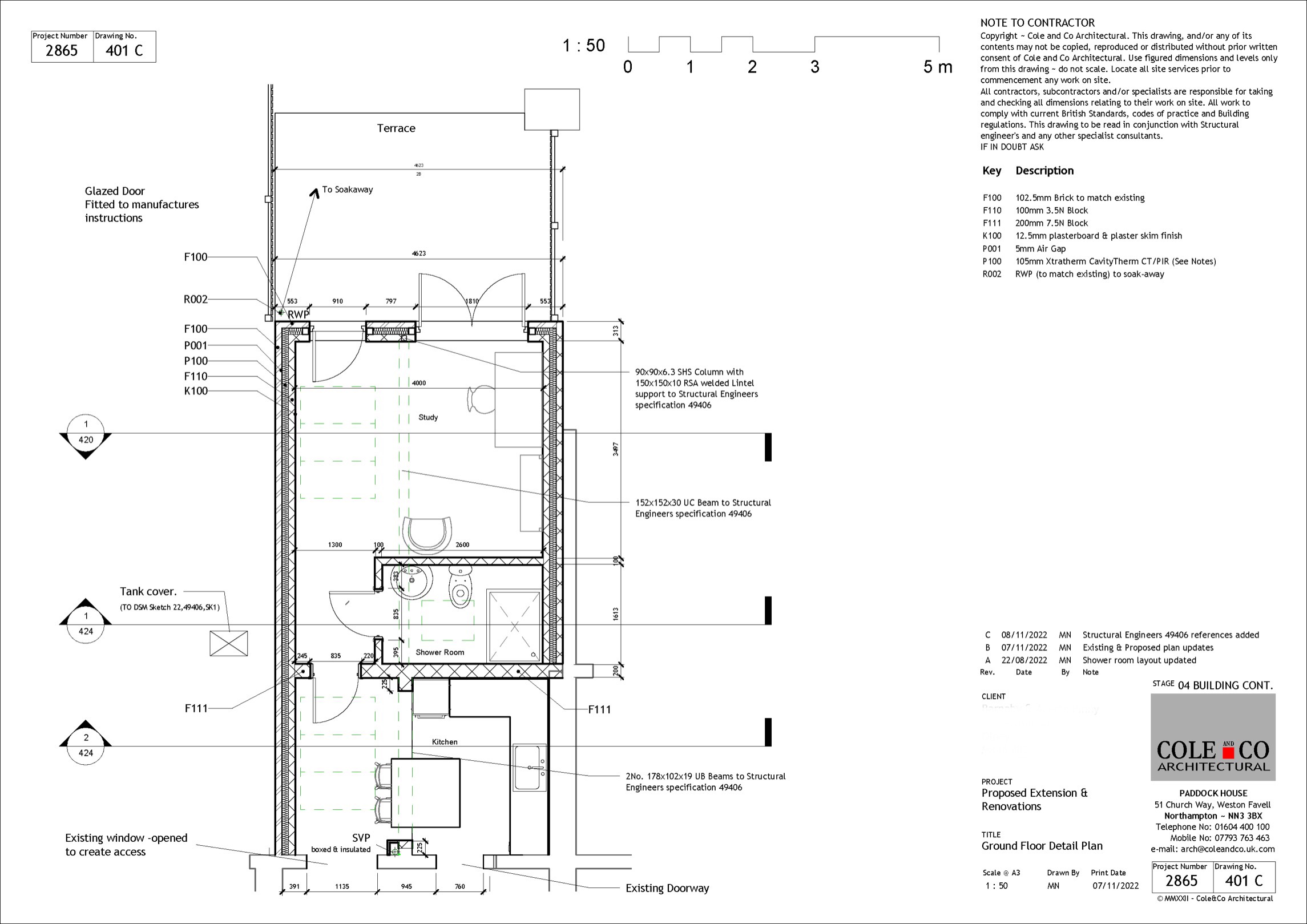

Detailed Plan
Detailed section

Whitegates

A Design Scheme for a single storey extension to link the bungalow to the garage and provide a utility area and snug room.

Initial 2D AutoCad drawings used to develop elevation and 3D views.

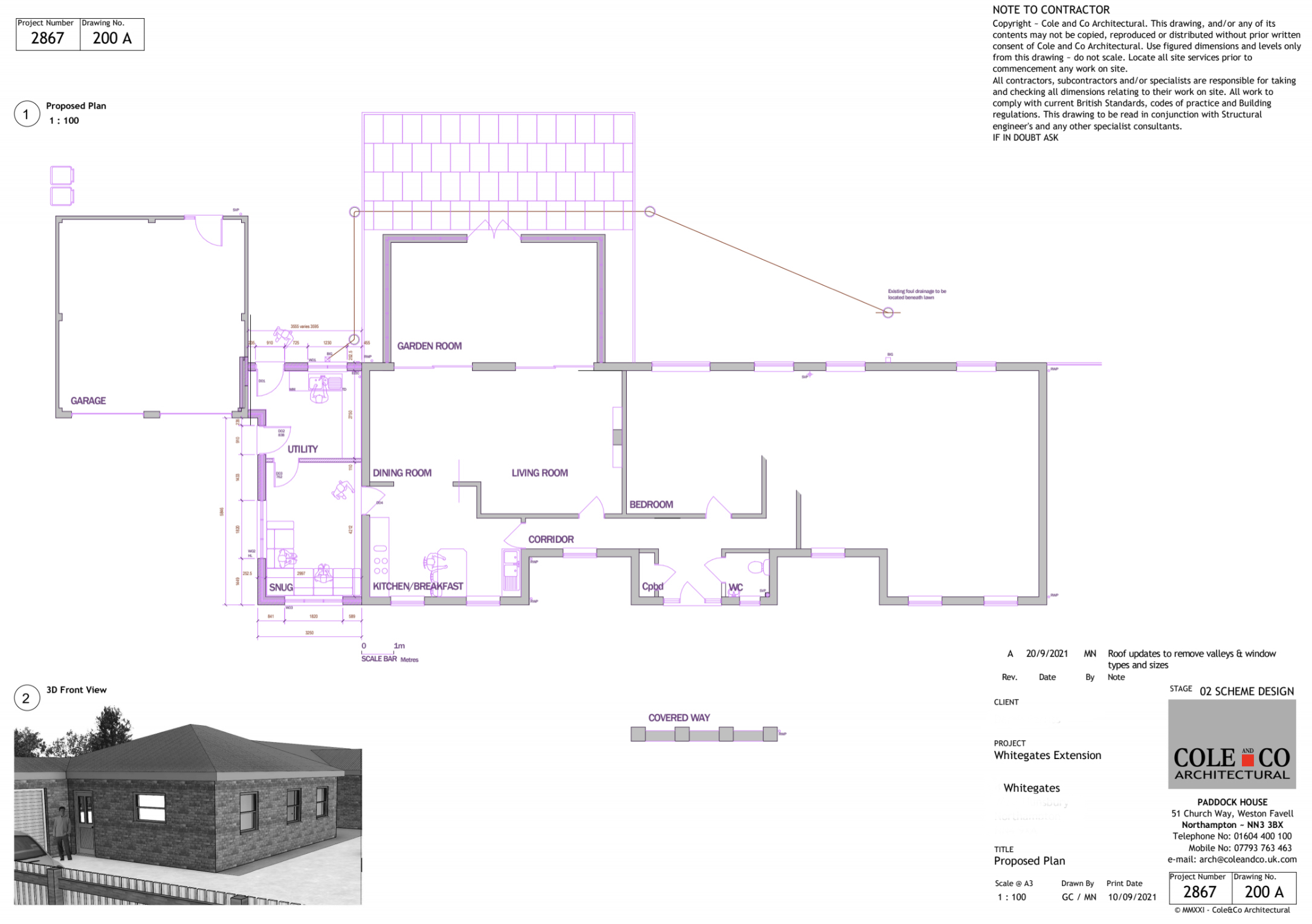

Proposed plan and 3D view

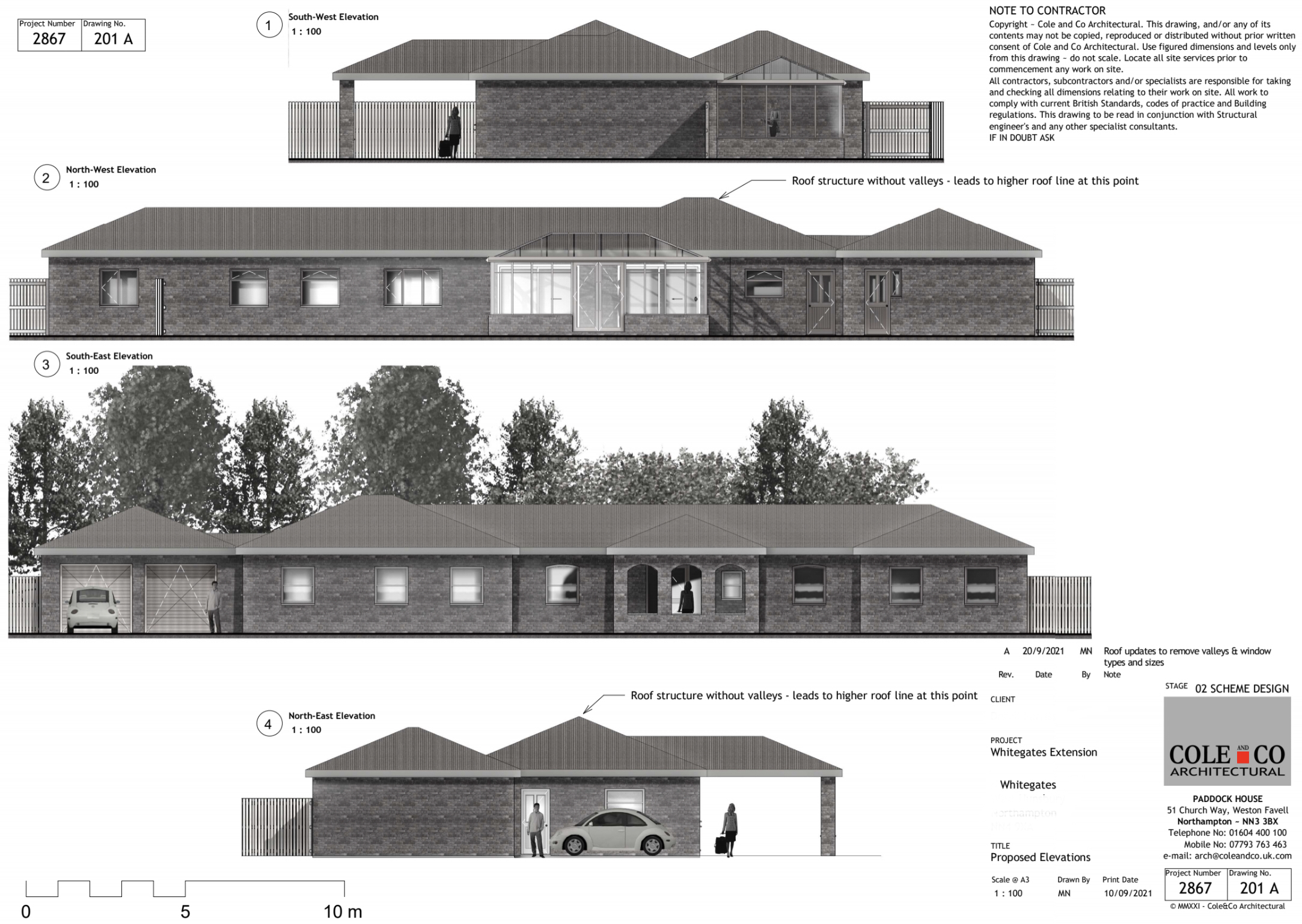

Proposed Elevations

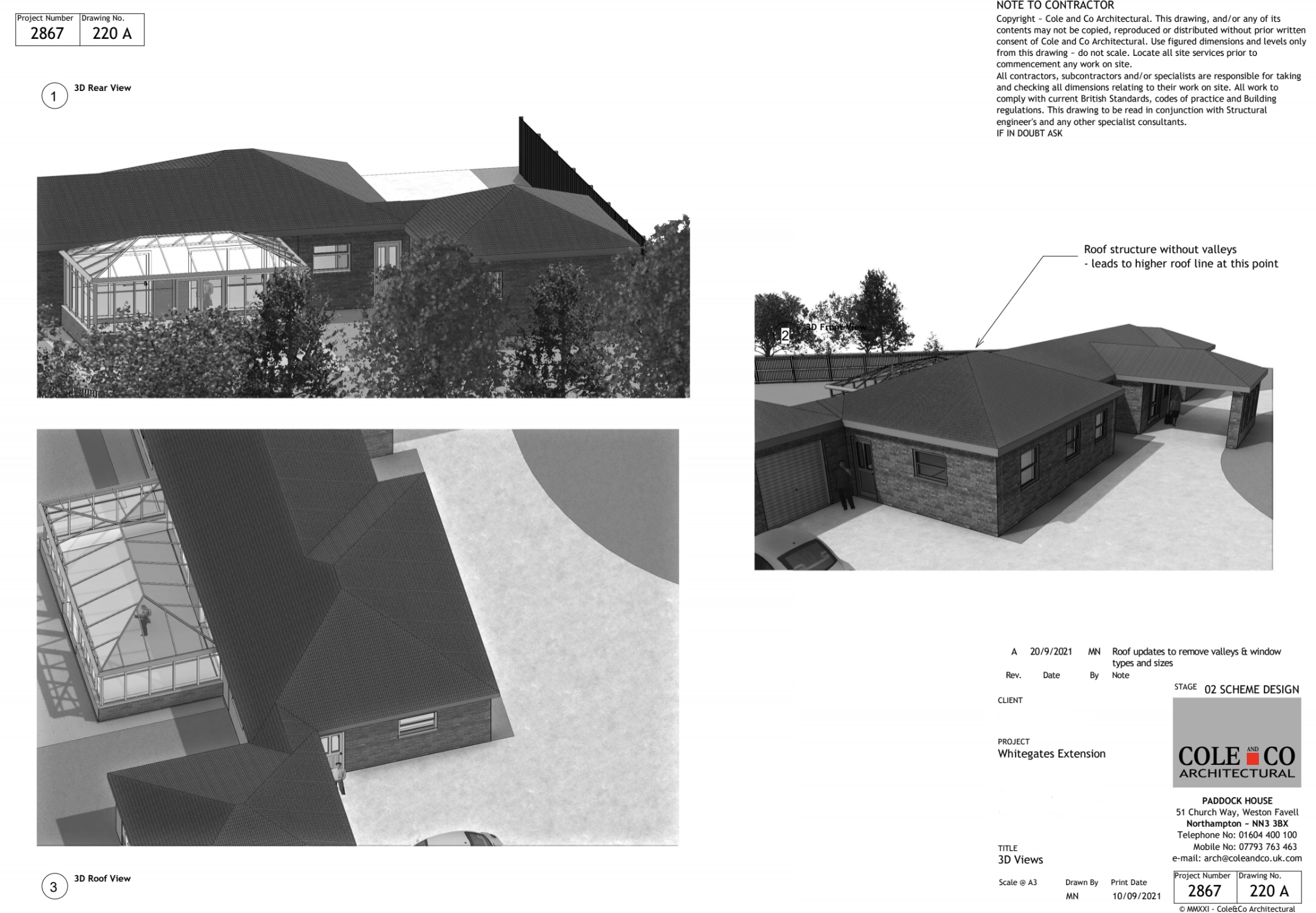

3D views focused on new elements

Once the Scheme was agreed, the model was then developed to create both existing and proposed drawing for planning approval submission.

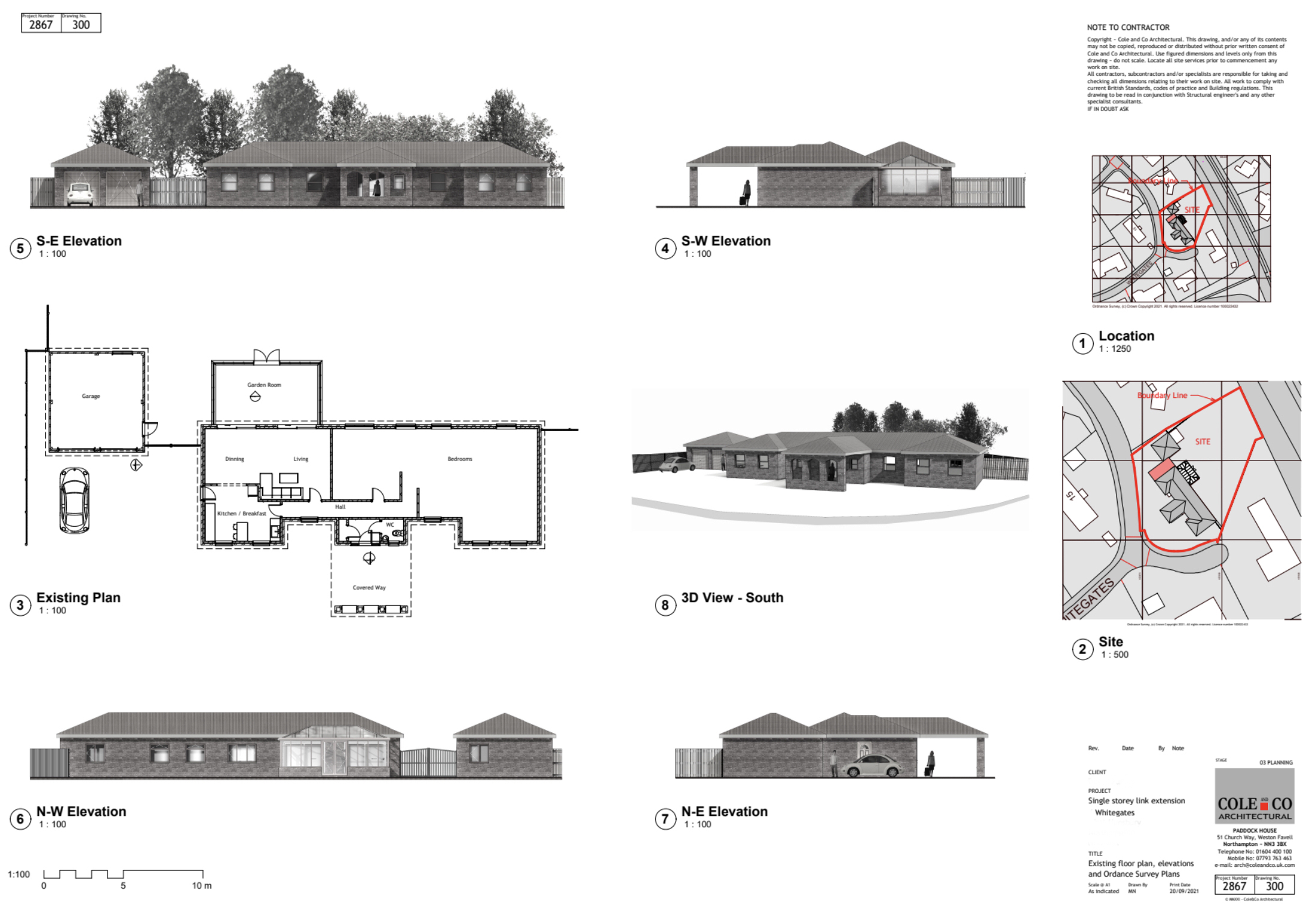

Existing Plan & Elevations

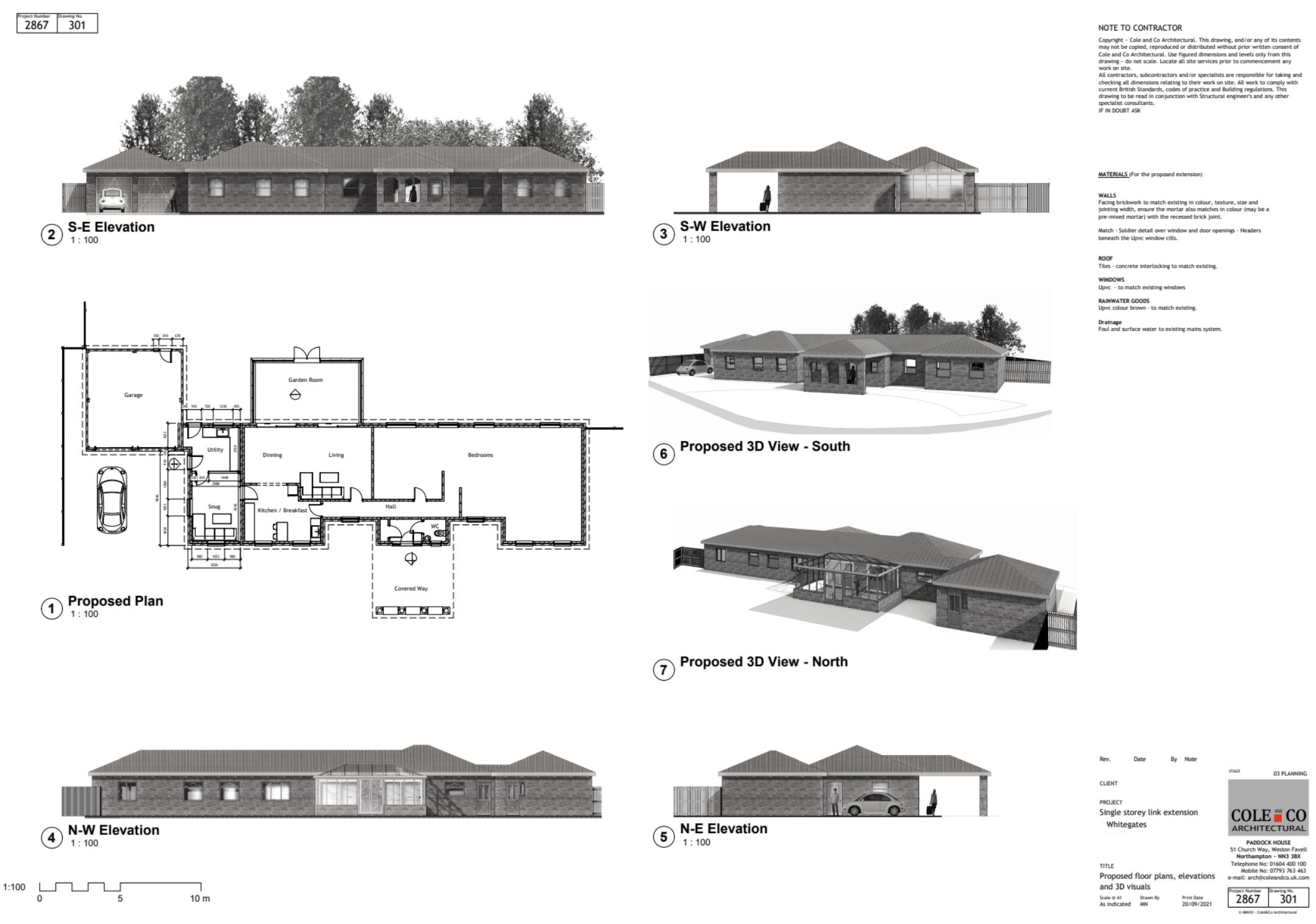

Proposed Plan, Elevations & 3D views

Planning approval was granted and the Revit model was developed to produce detailed drawings for Building Control submission. Including:-

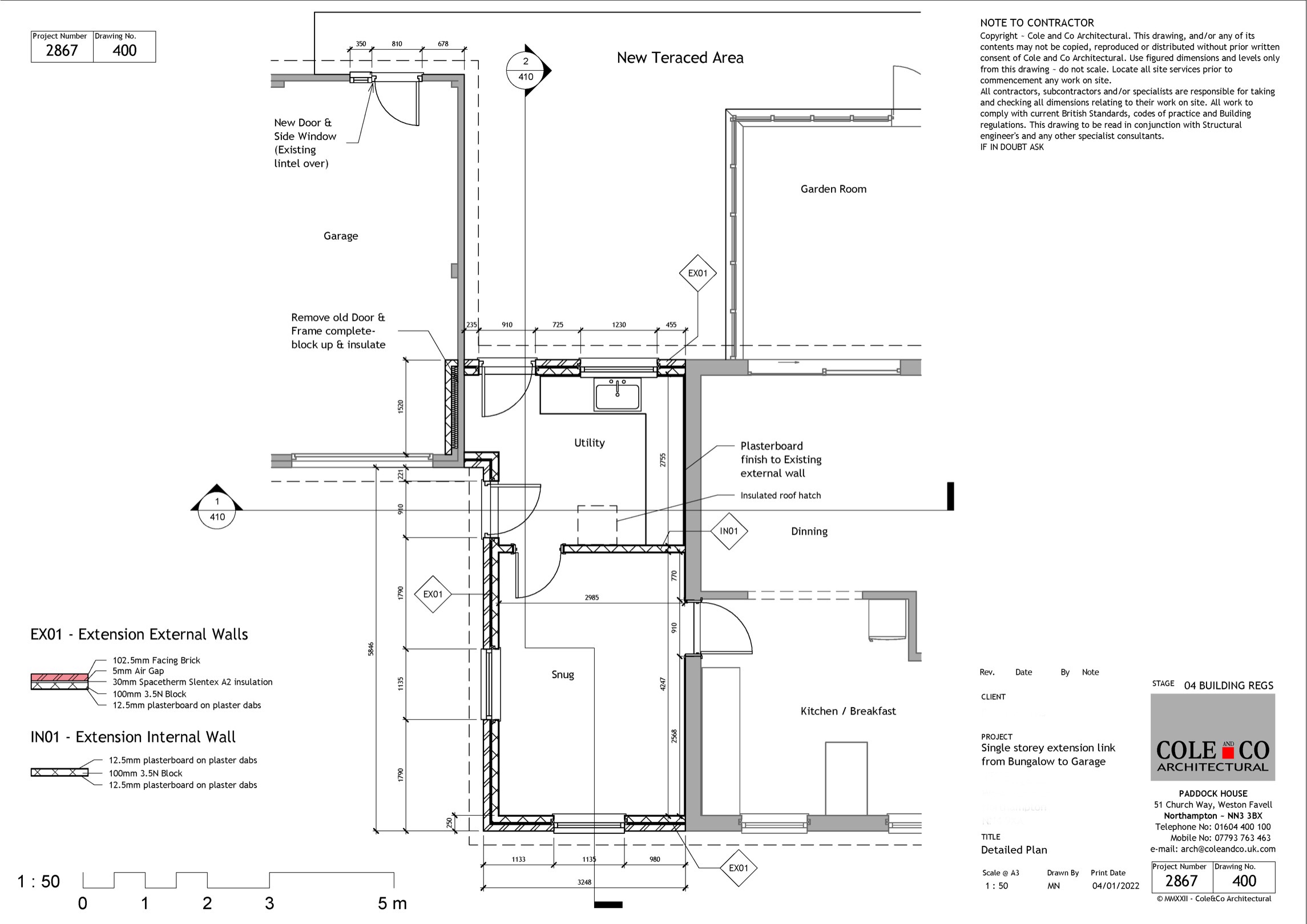

Detailed plan

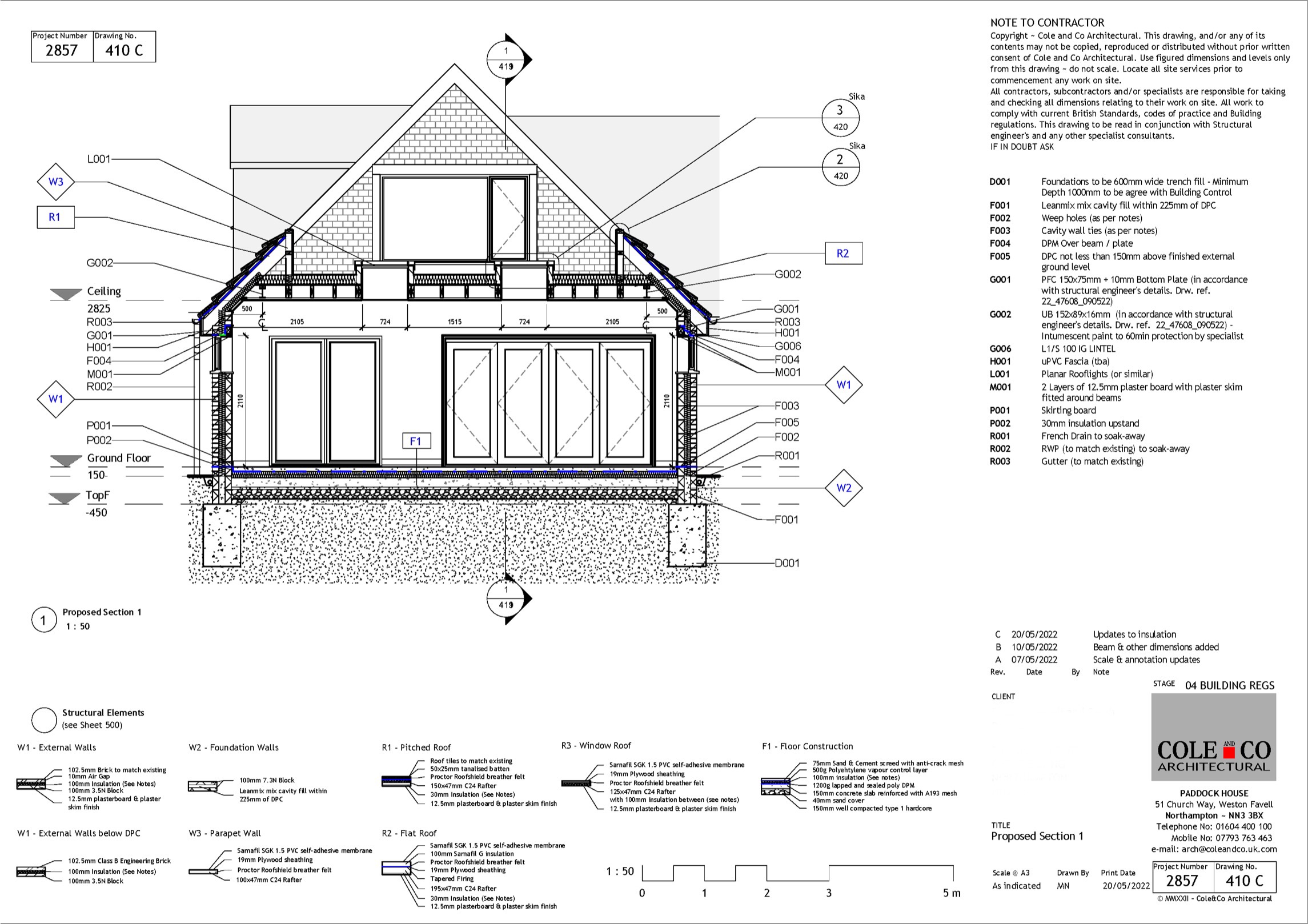

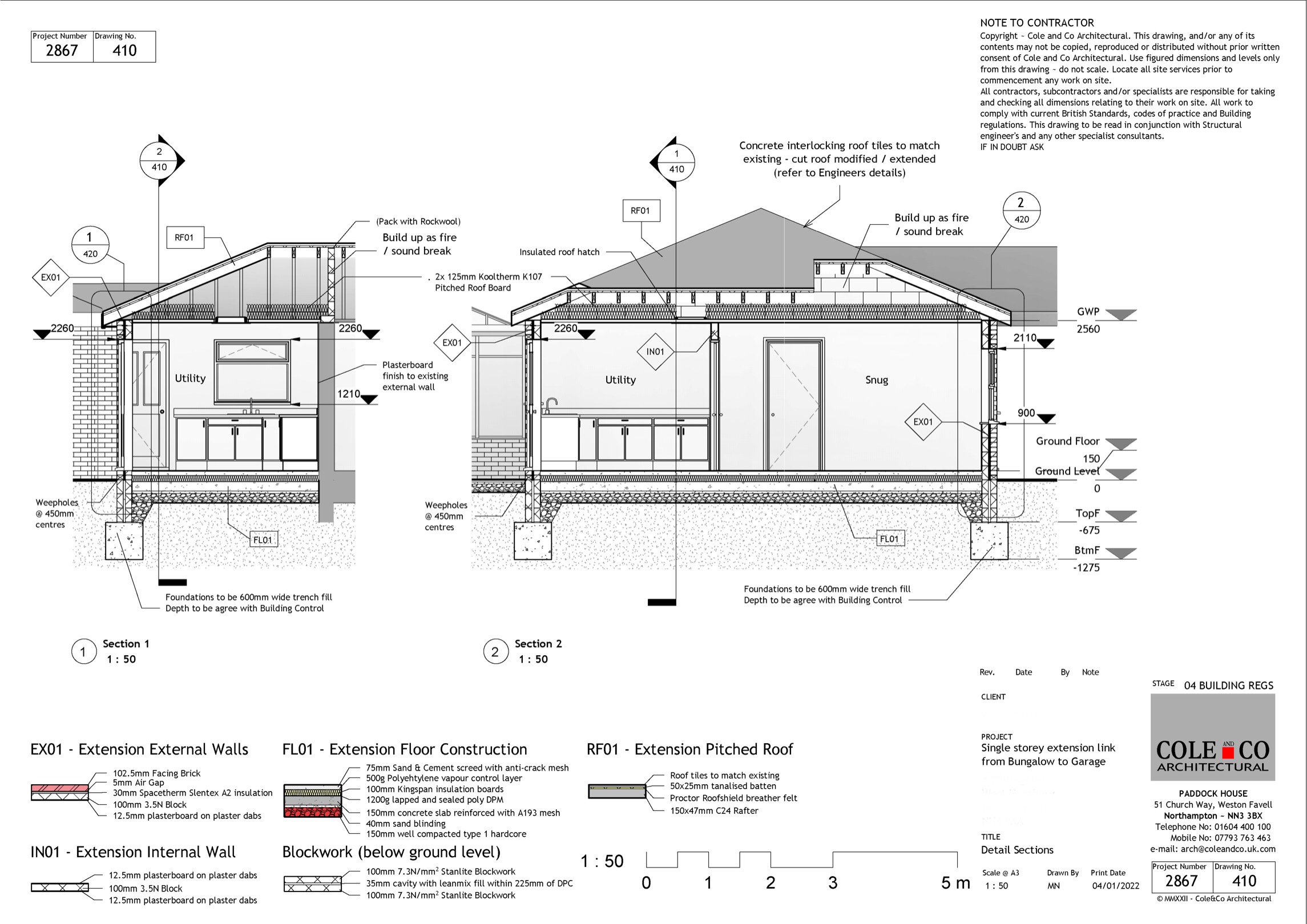

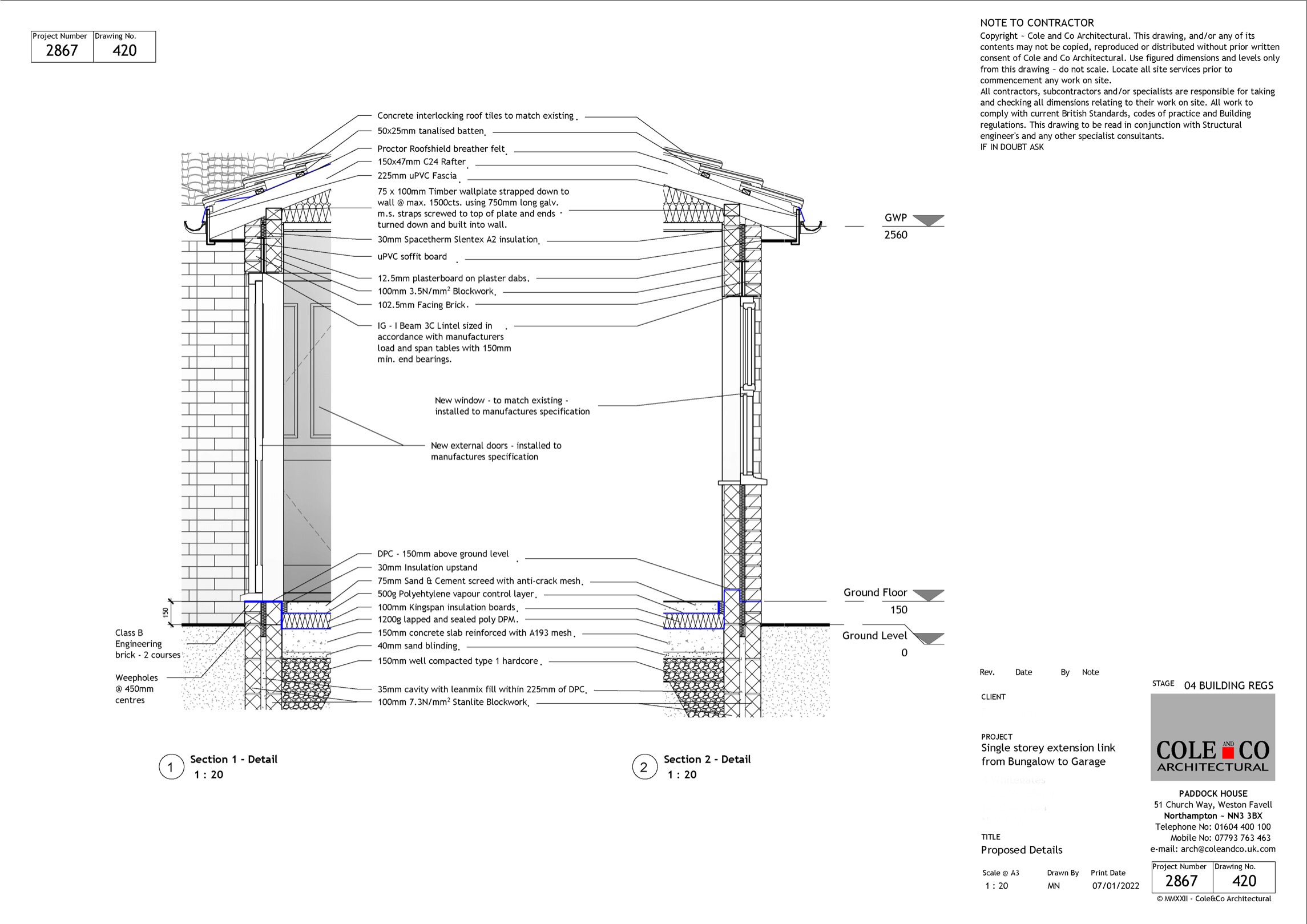

Detail Sections
Detail section callouts

The French Partridge

Building Control submission for proposed 3 storey bedroom and rear single storey extensions to a listed hotel / restaurant

Created a 3D mass model of the existing listed building to give context to the proposed extensions.

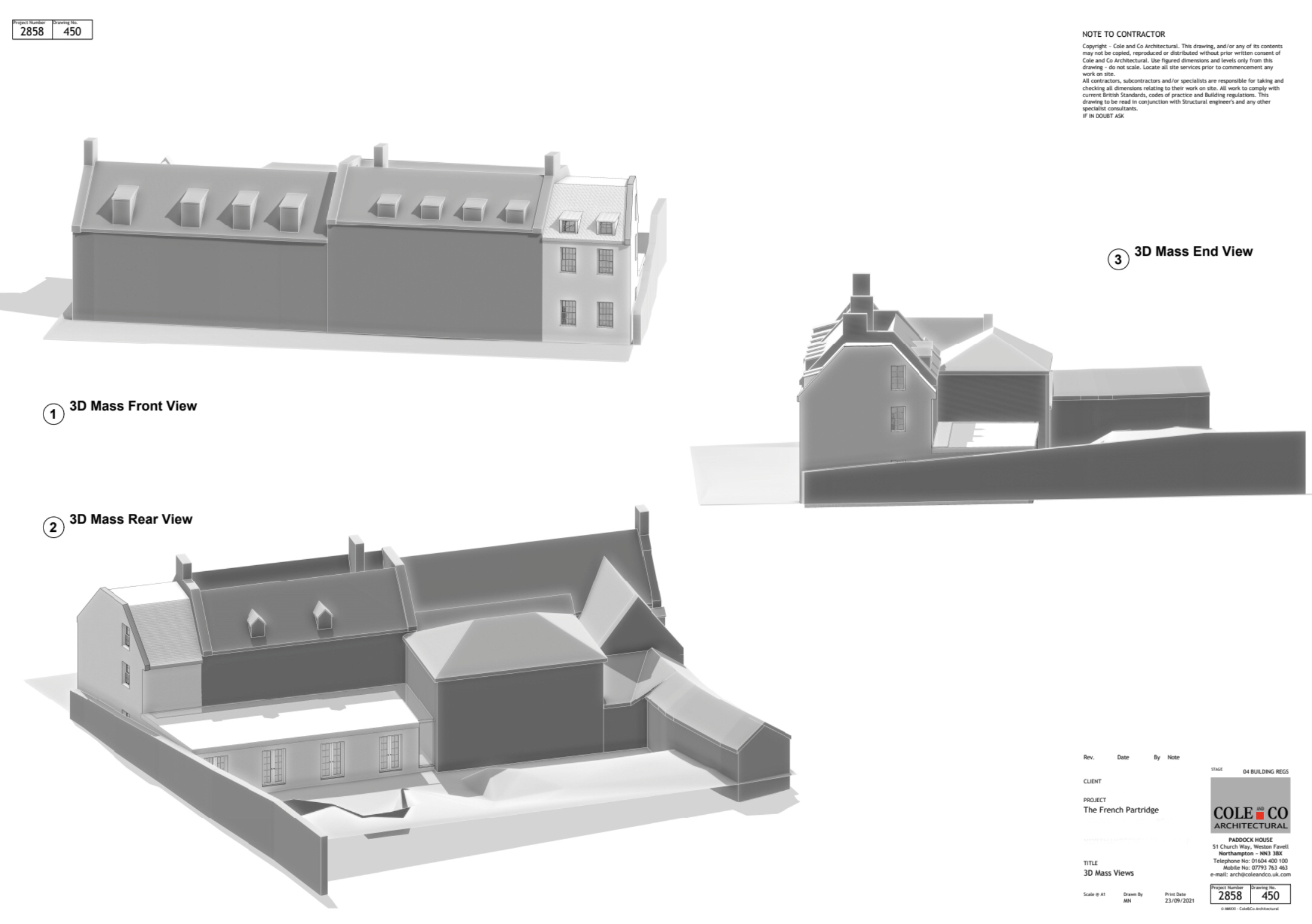

Mass model

The initial model was used to identify and resolve issues not apparent in the previous planning submission drawings (completed by a 3rd party) such as the bedroom and stair layout.

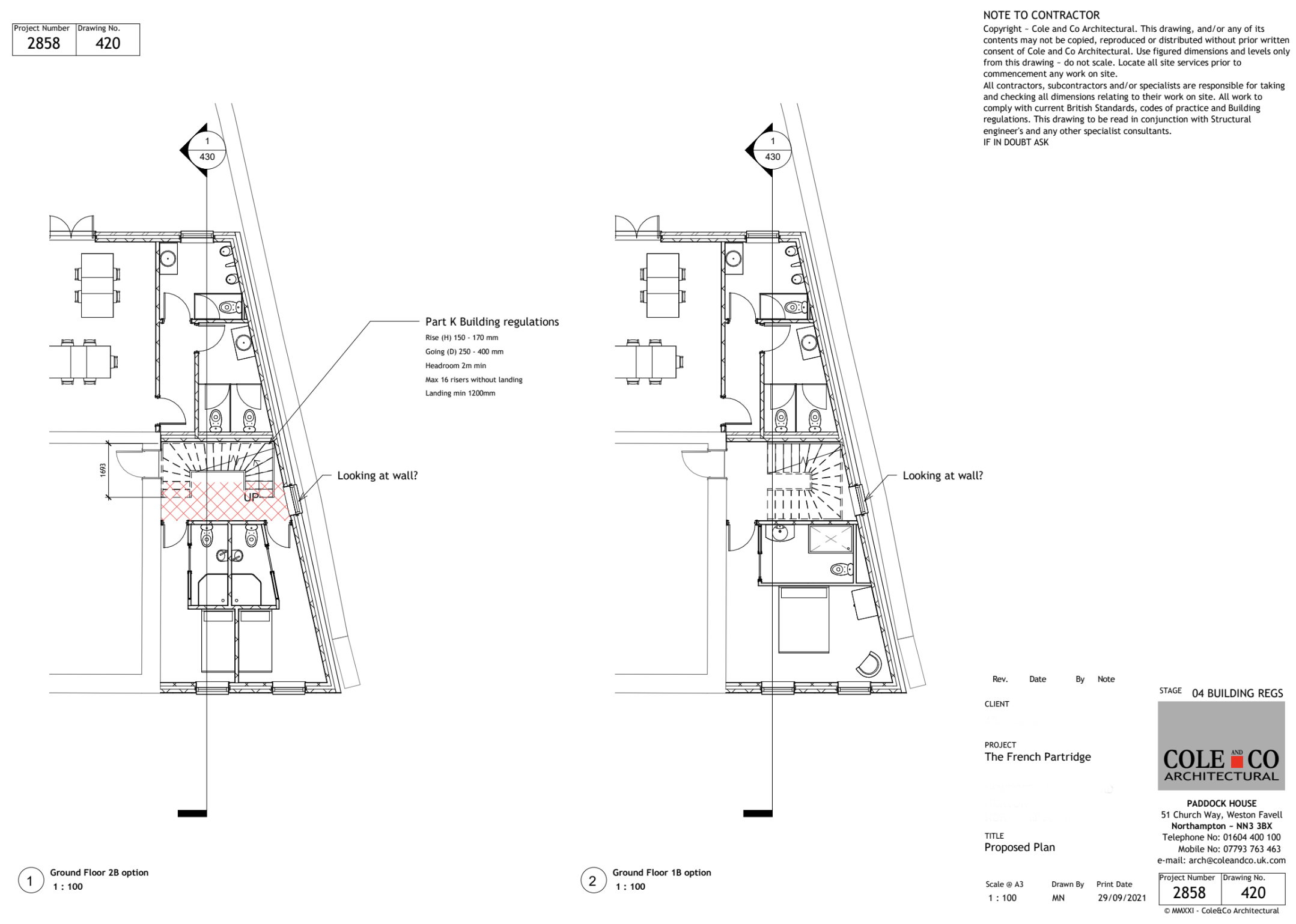

Bedroom layout options

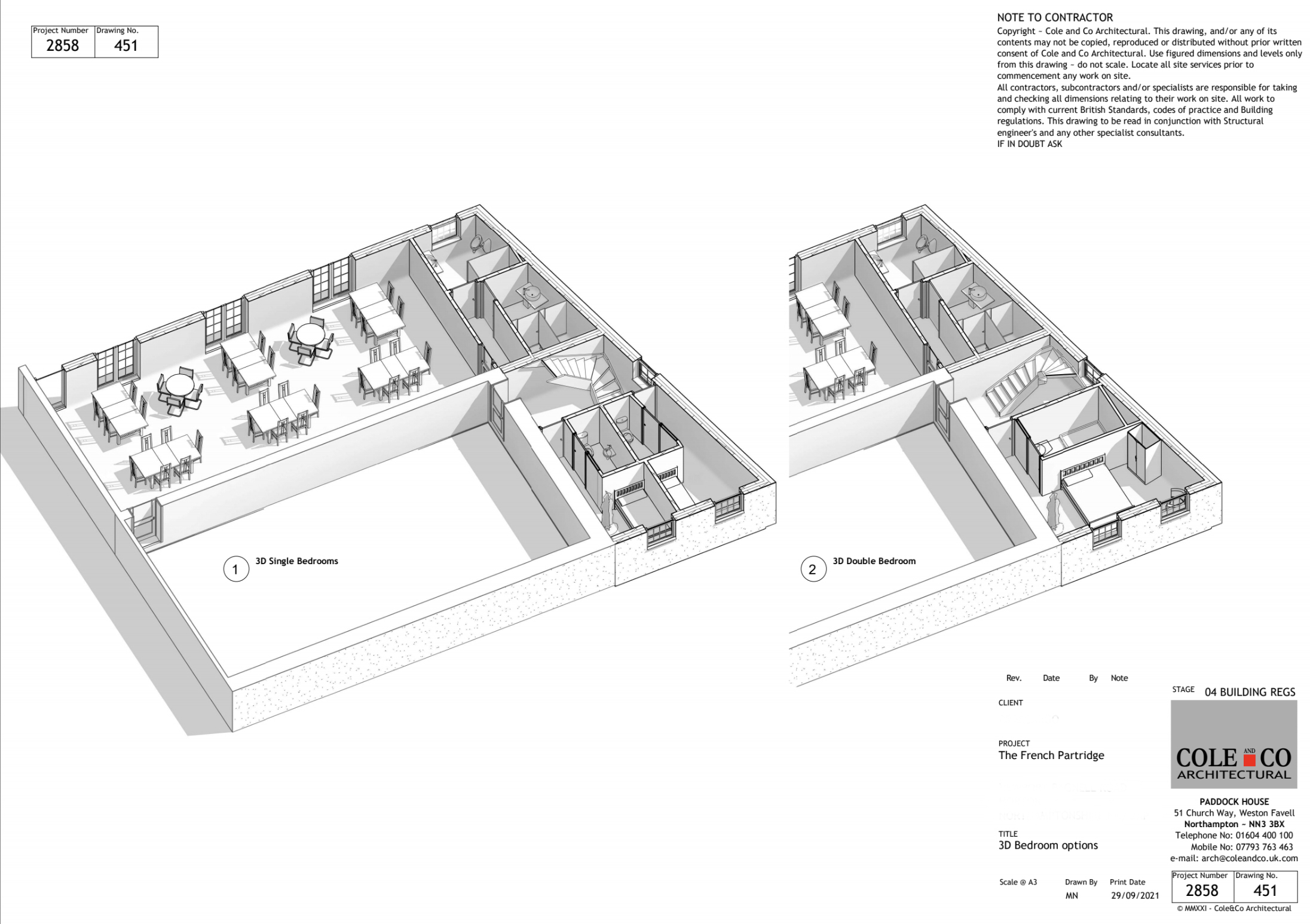

3D view of options

The model was then developed to provide the detail required for the Building Regulations submission.

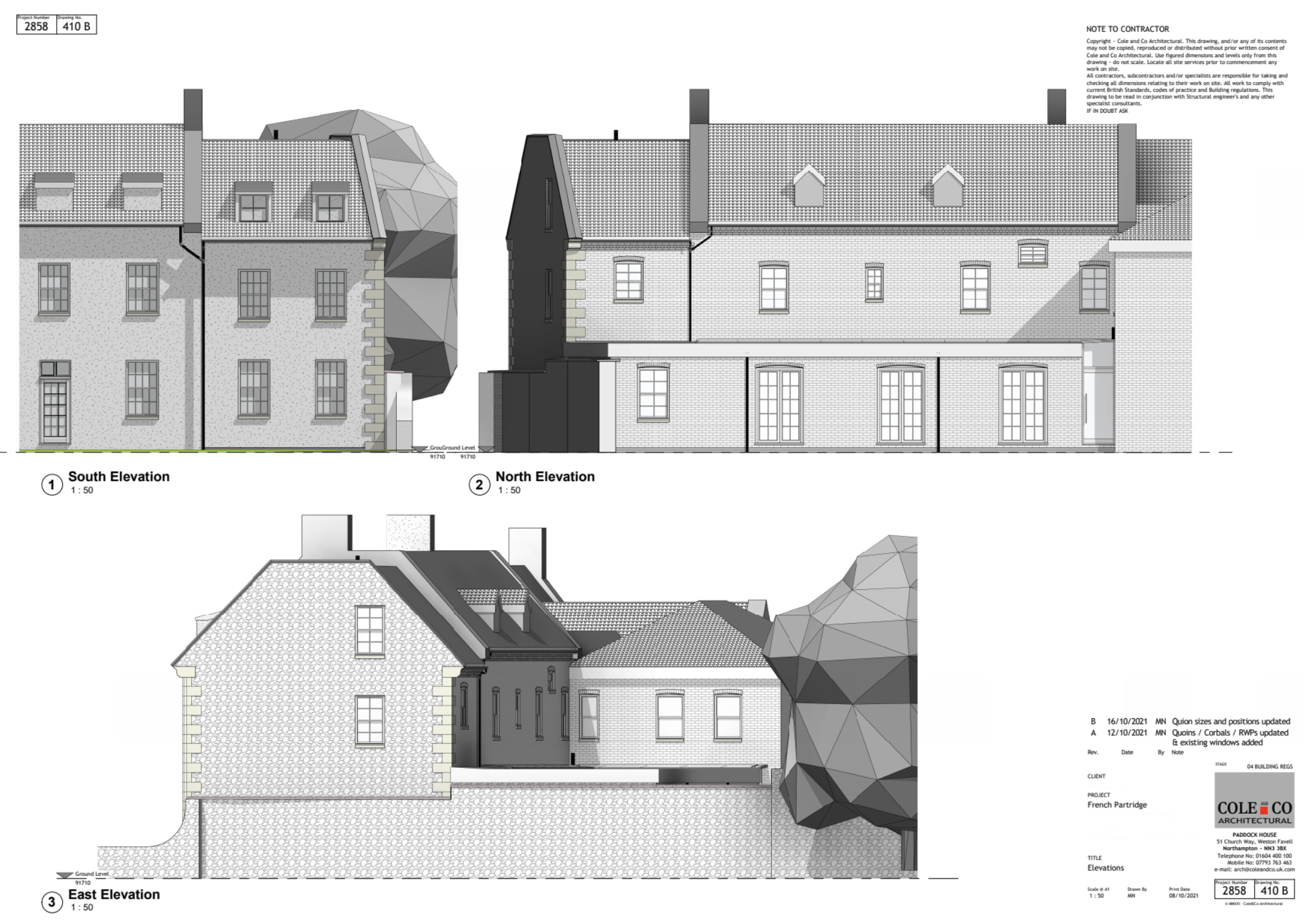

Elevations

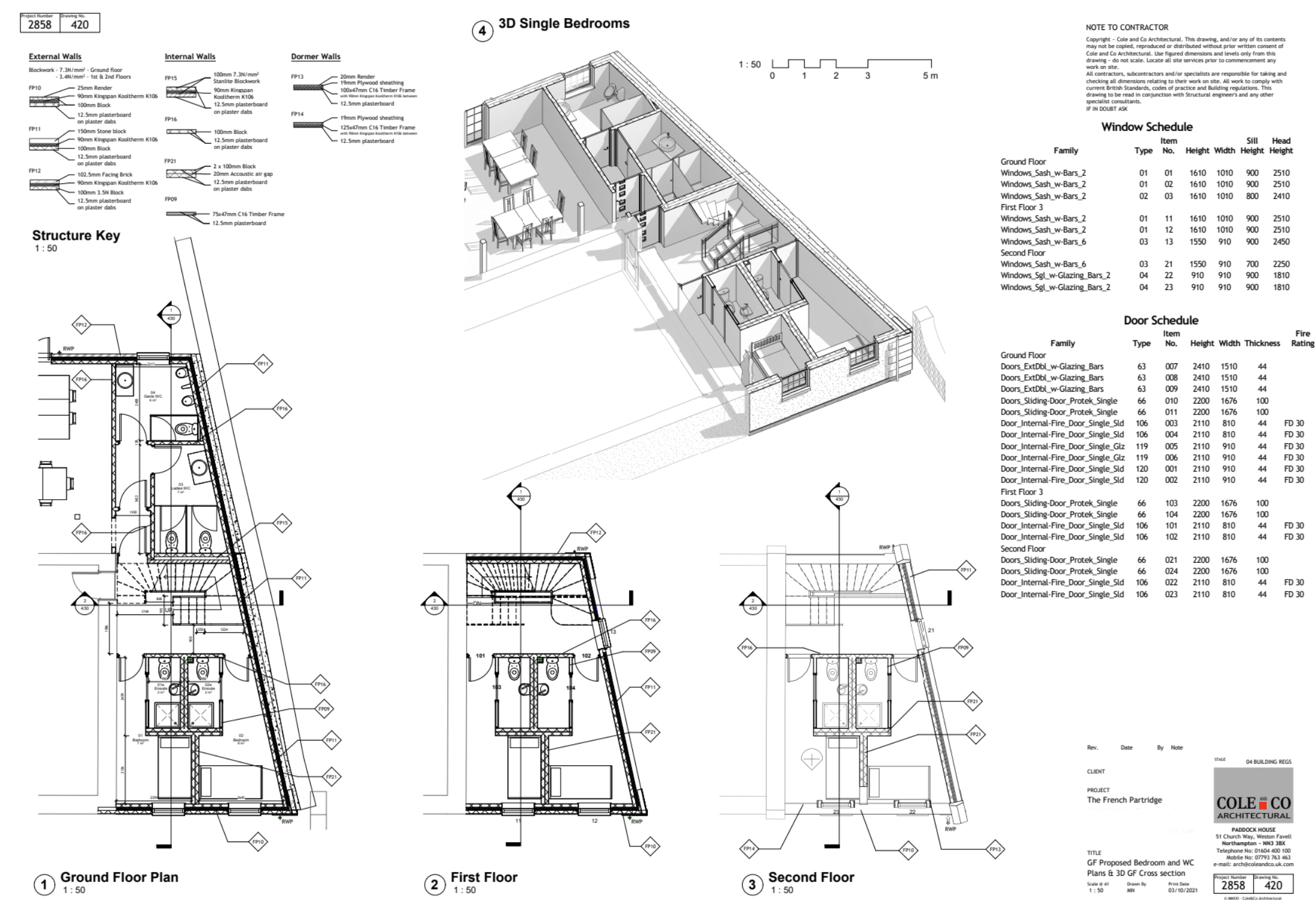

Bedroom Plans

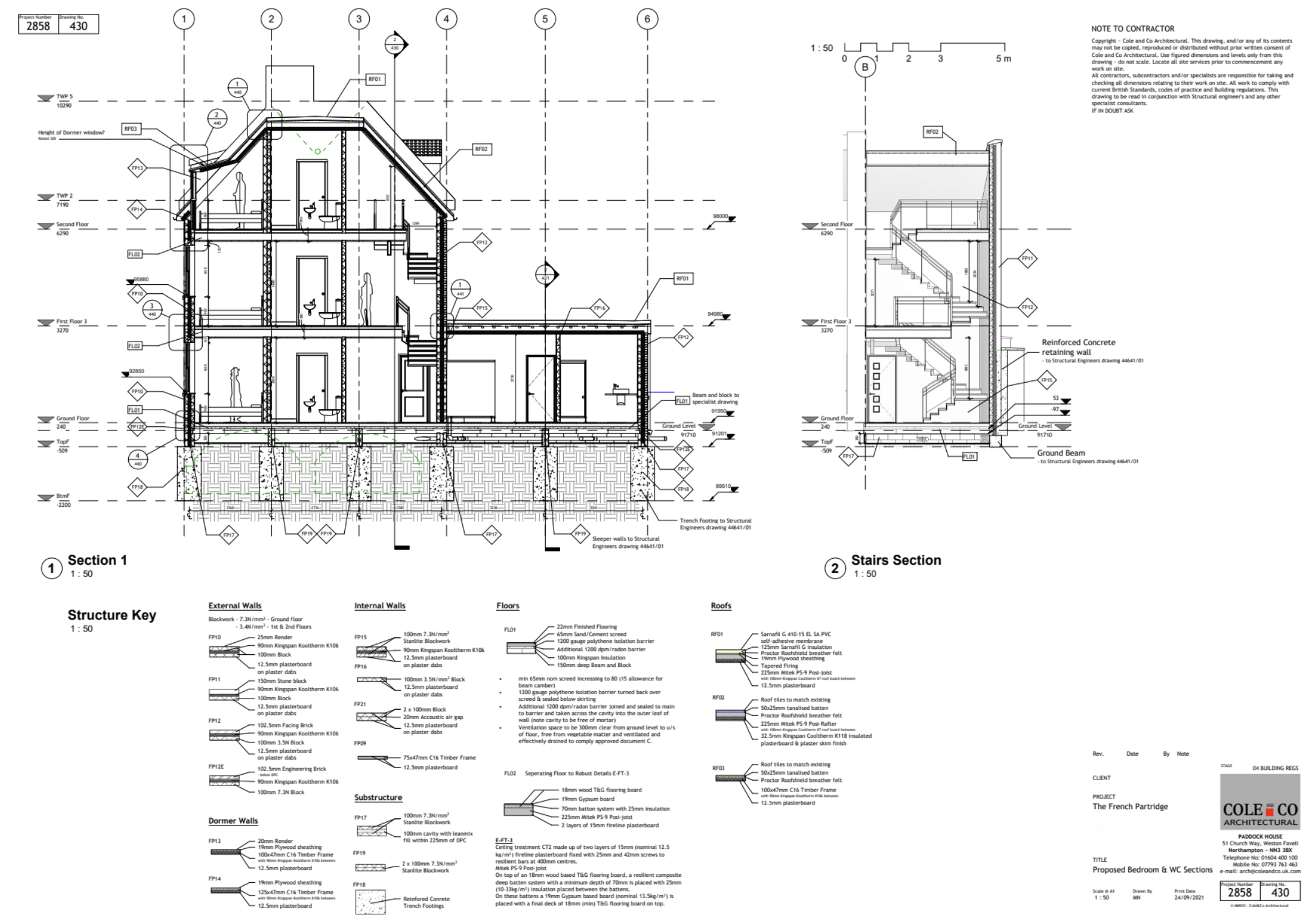

Bedroom Sections

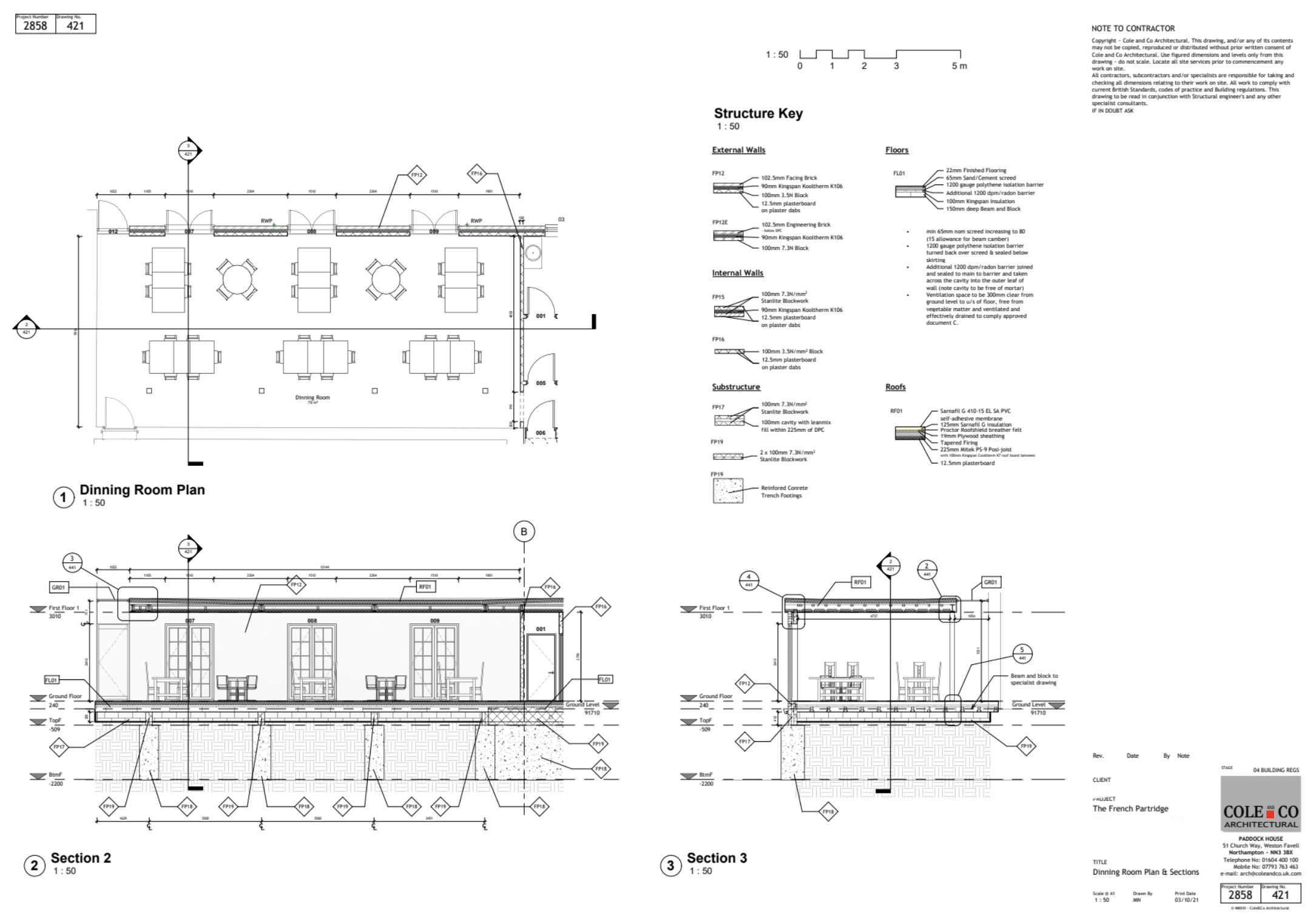

Dinning Room Plan & Sections

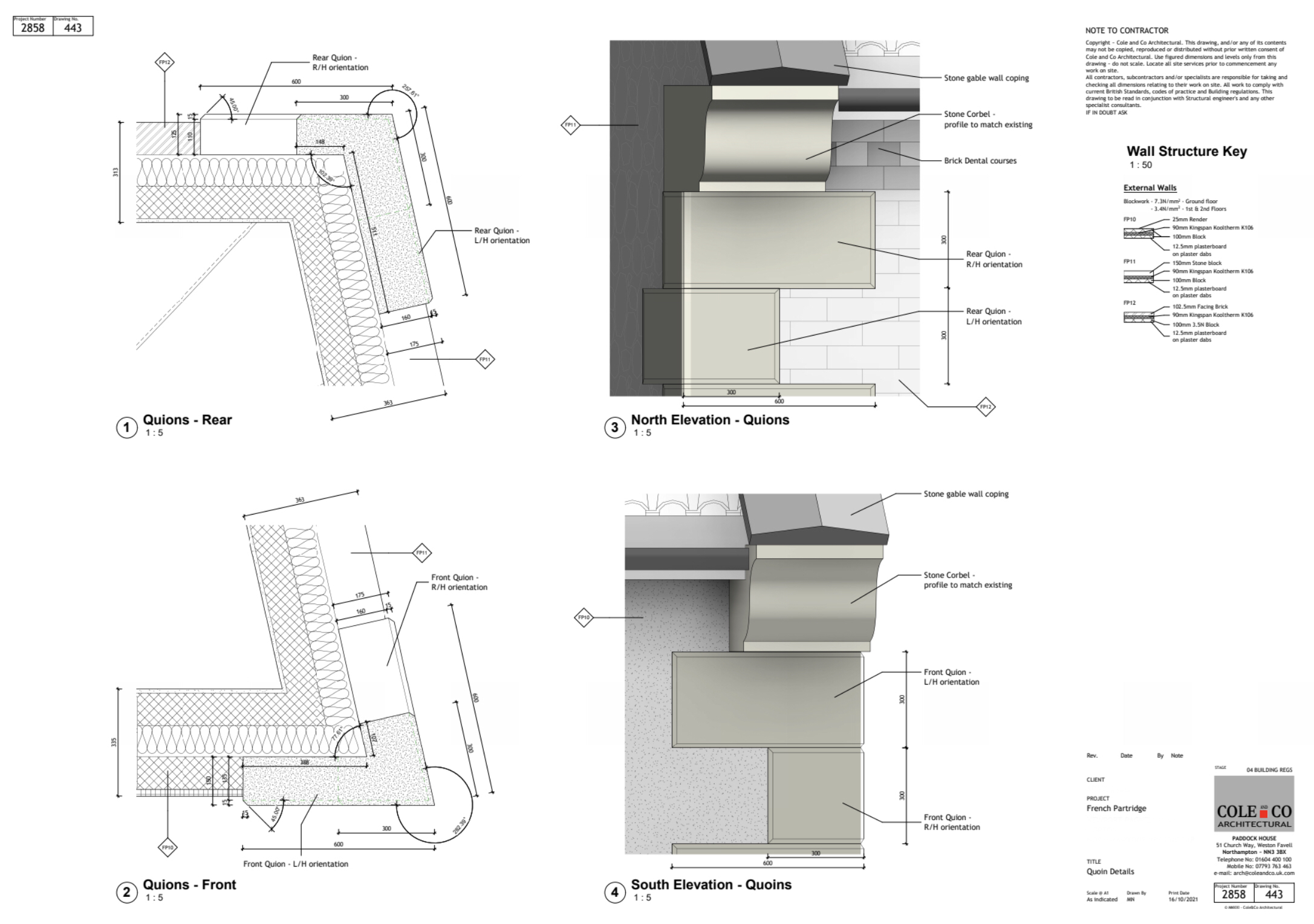

Quoins Details

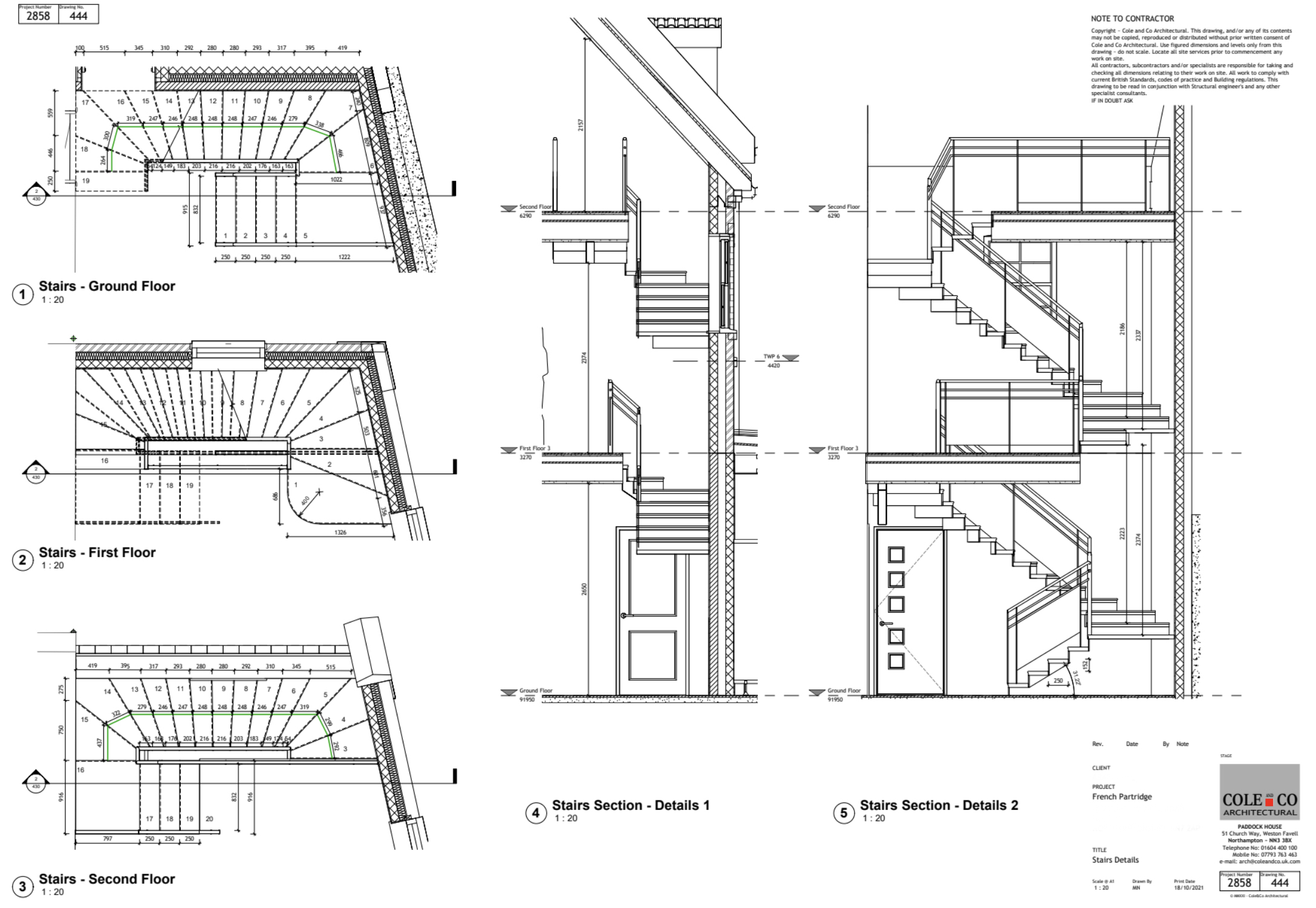

Stairs Detail

Brixworth

Scheme proposal to develop a garden outbuilding to provide a ground floor study with a first floor Garden Room that leads onto the raised upper garden. With the addition of a terraced patio / landscaped area to the side.

Proposed scheme

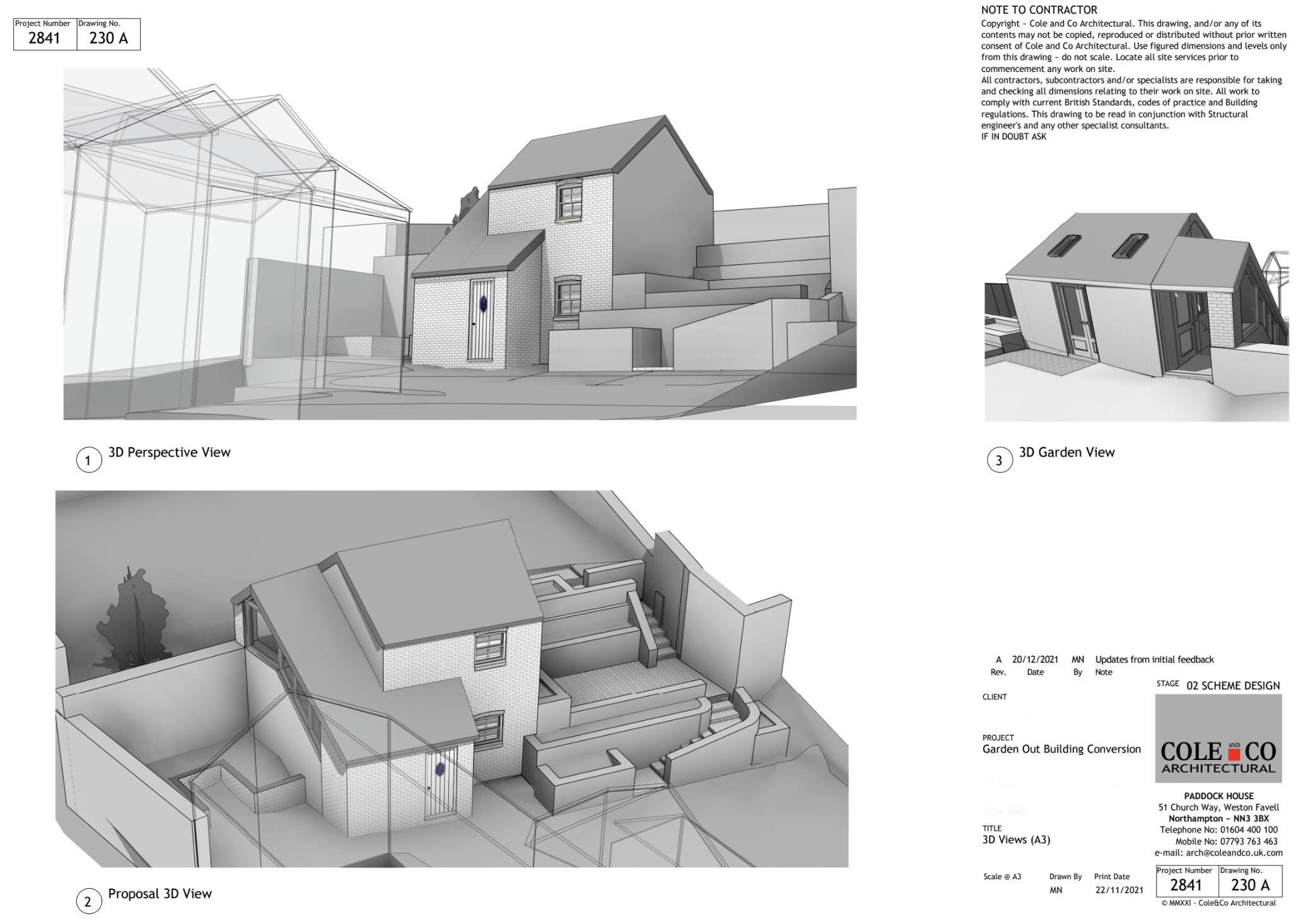

3D views

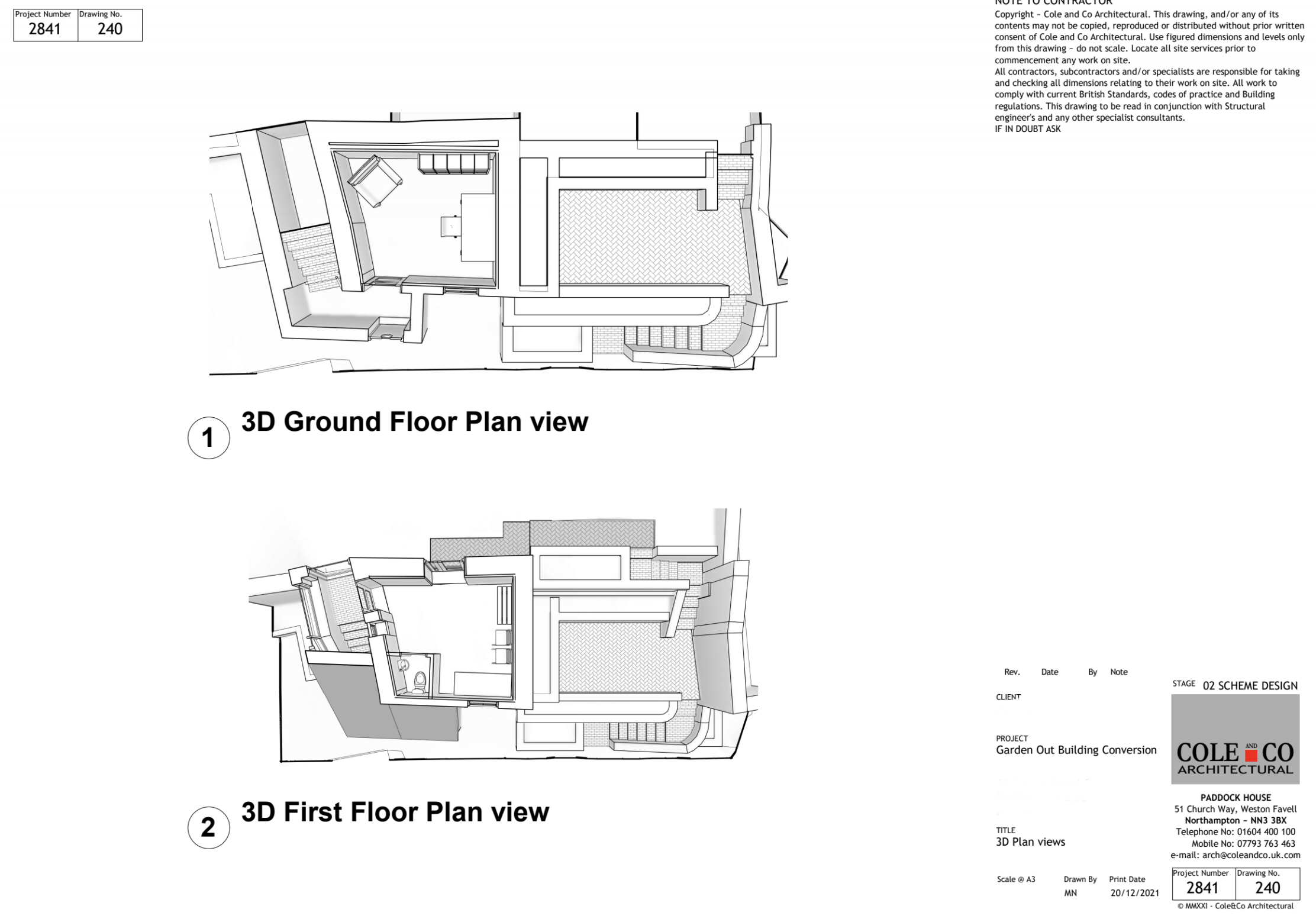

3D plan views

The drawings were then developed to create existing and proposed drawings for planning approval submission.

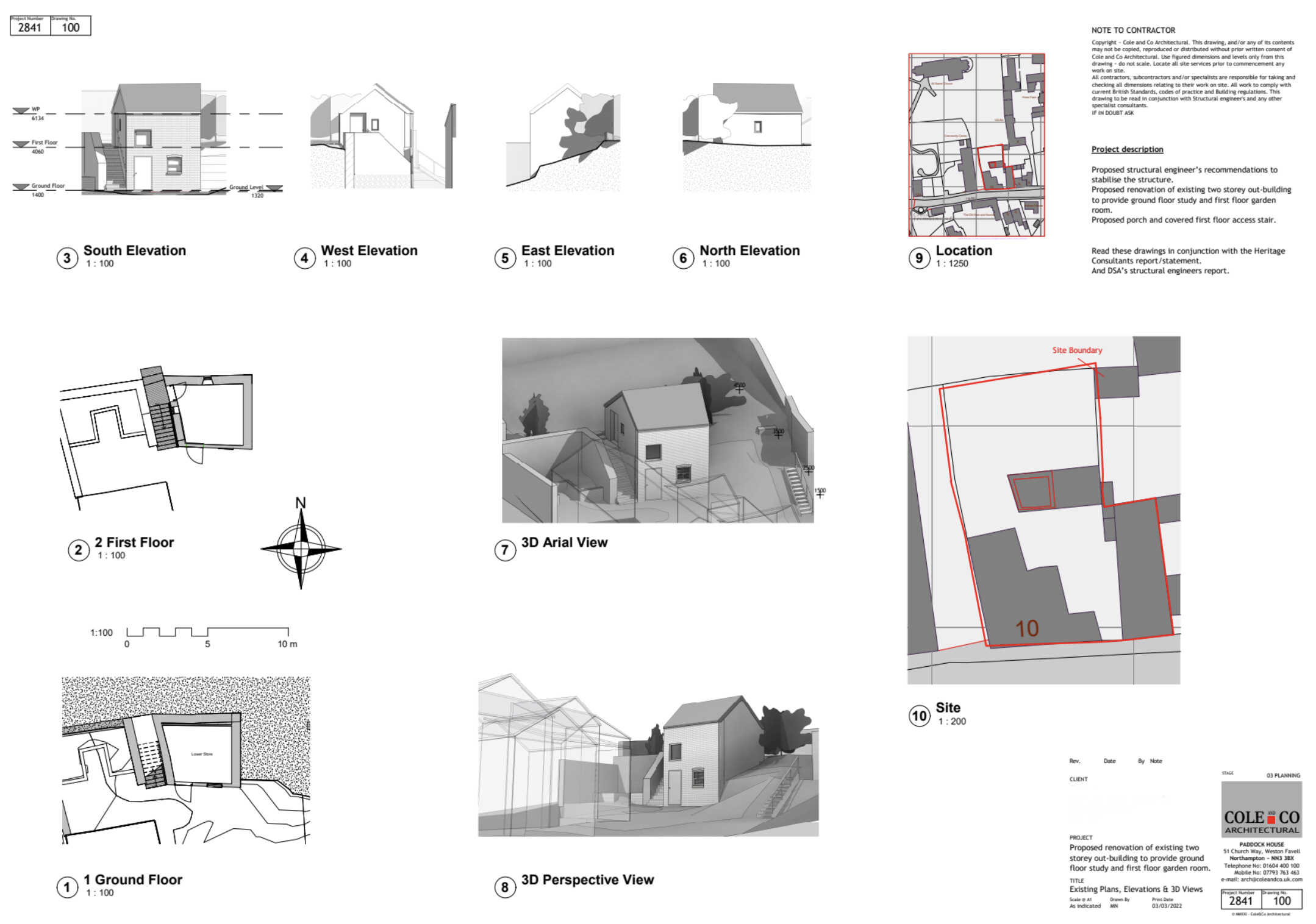

Existing Plans and Elevations

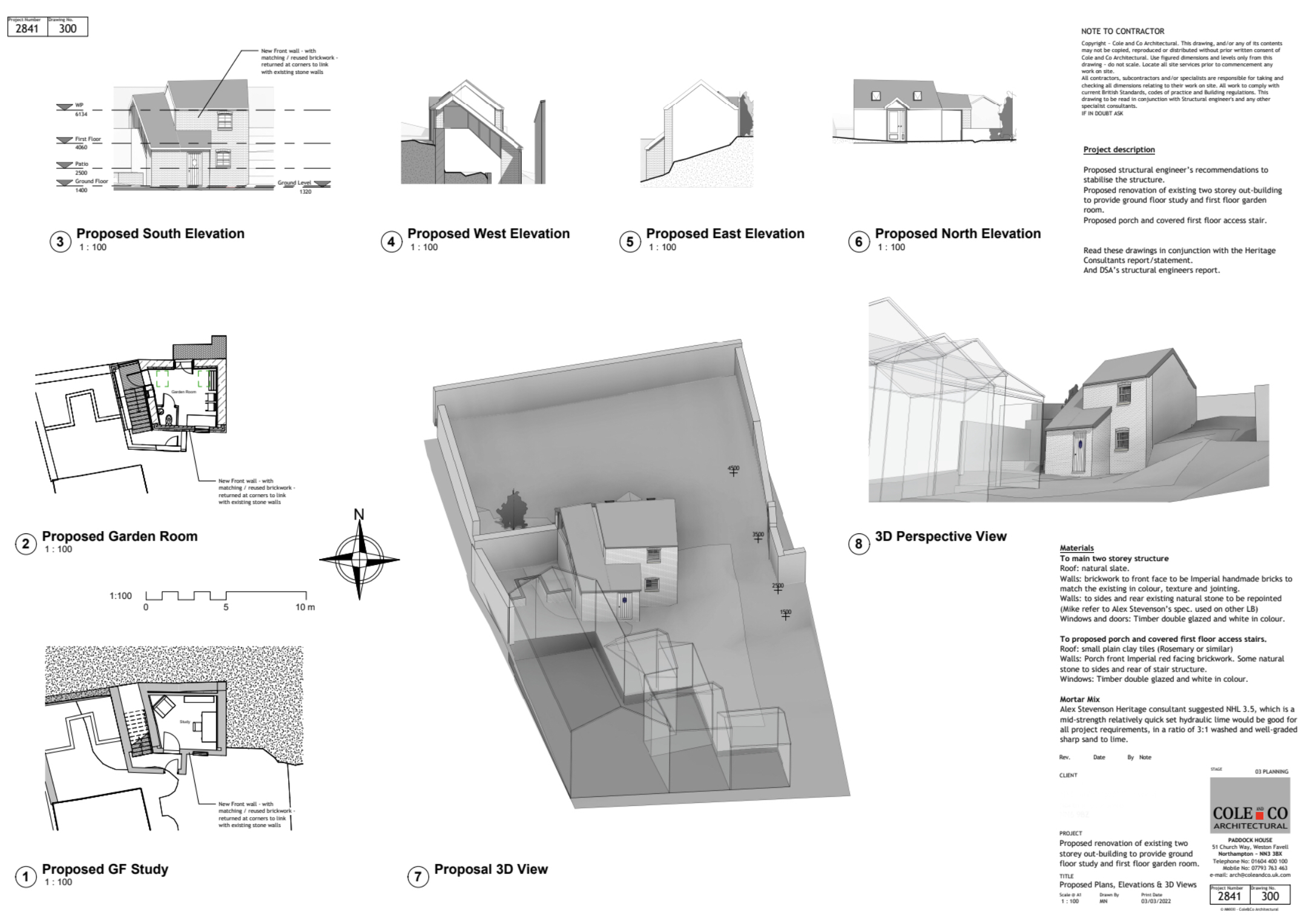

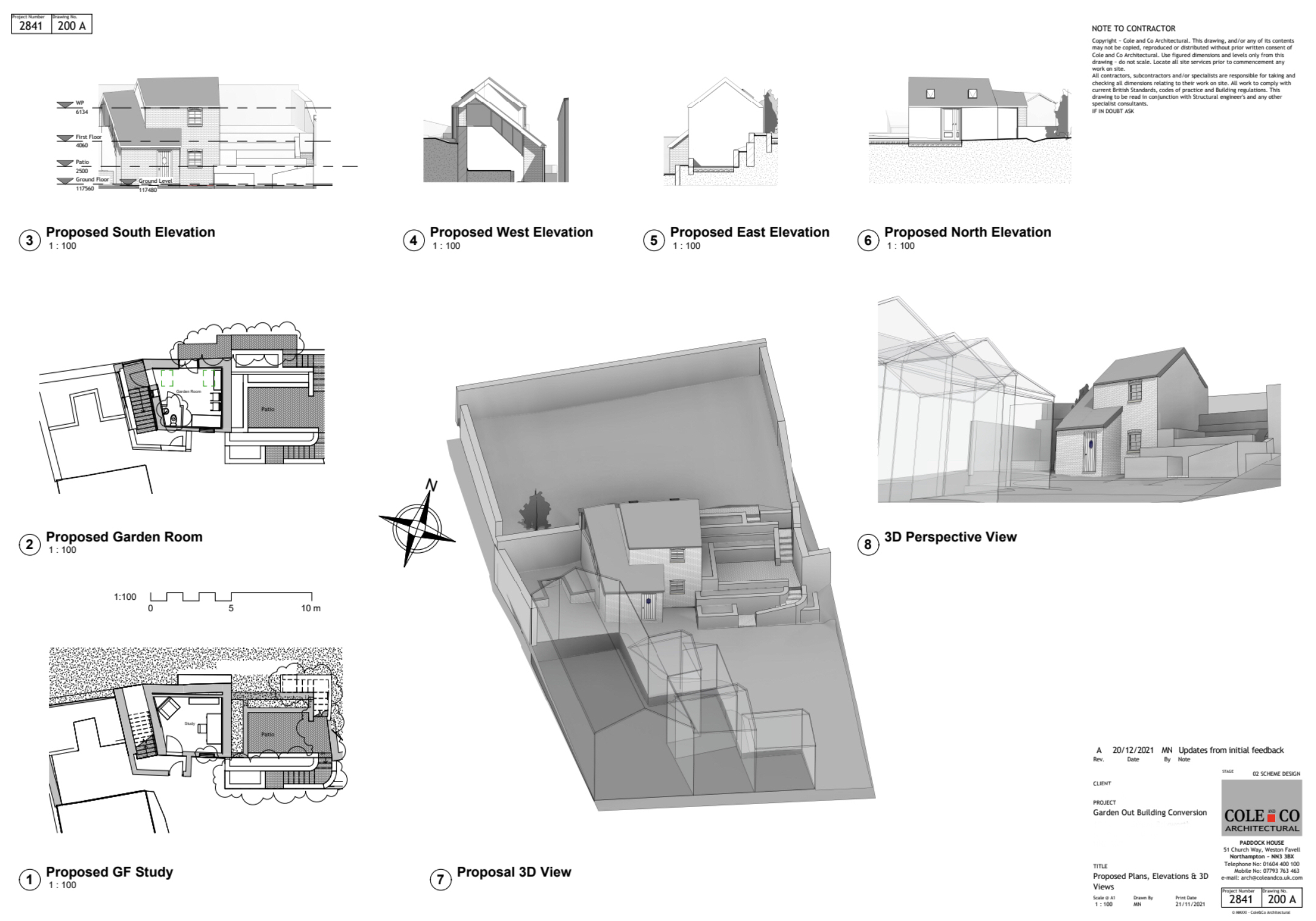

Proposed Plans and Elevations

Olney

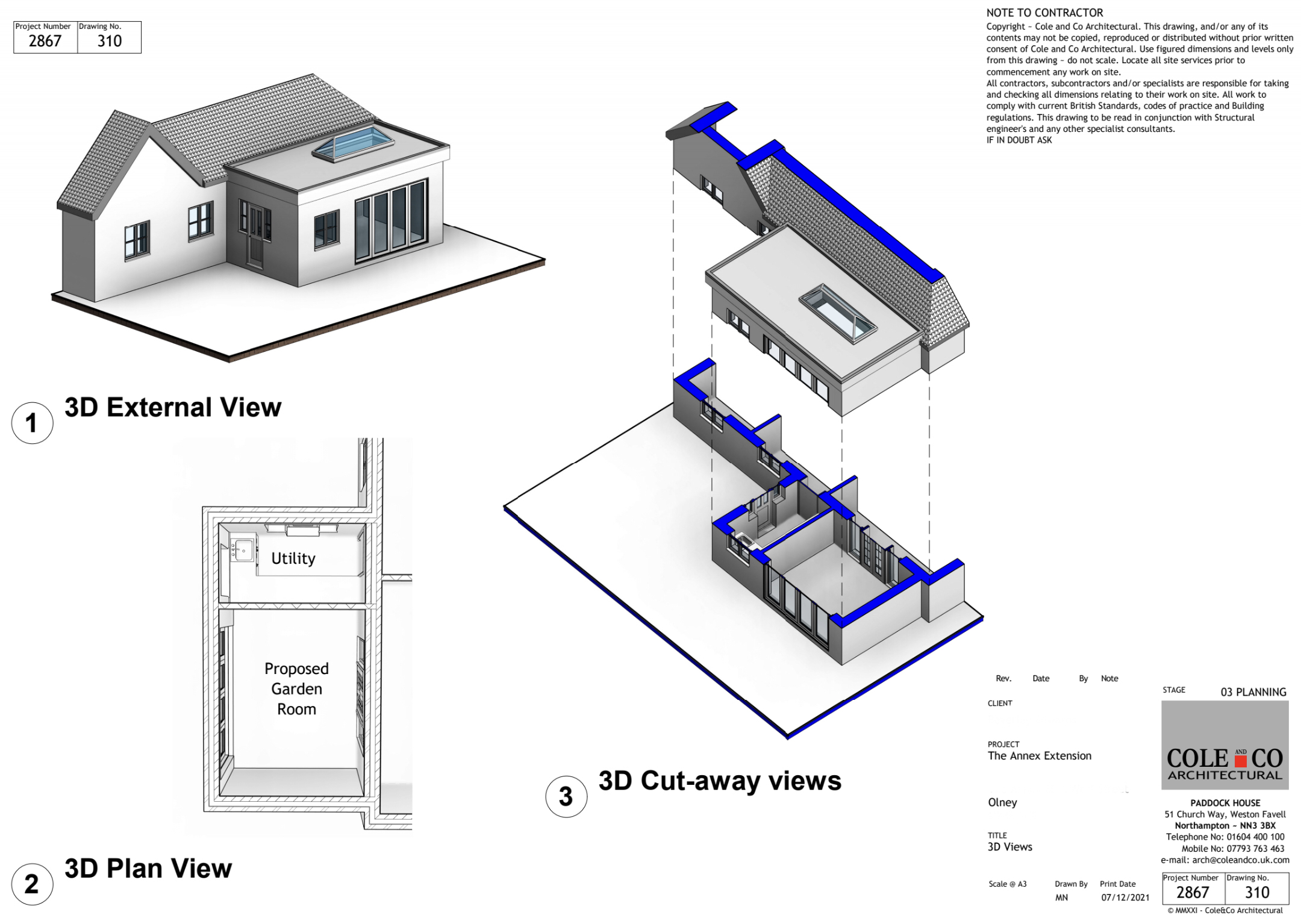

3D views of the Scheme proposal for Garden Room extension to replace an existing conservatory, developed from 2d plans created in preparation for planning approval.

3D views

Spratton

Based on 2d AutoCad files from a building survey, a plan and 3D views of a scheme proposal for ground floor internal alterations was prepared.

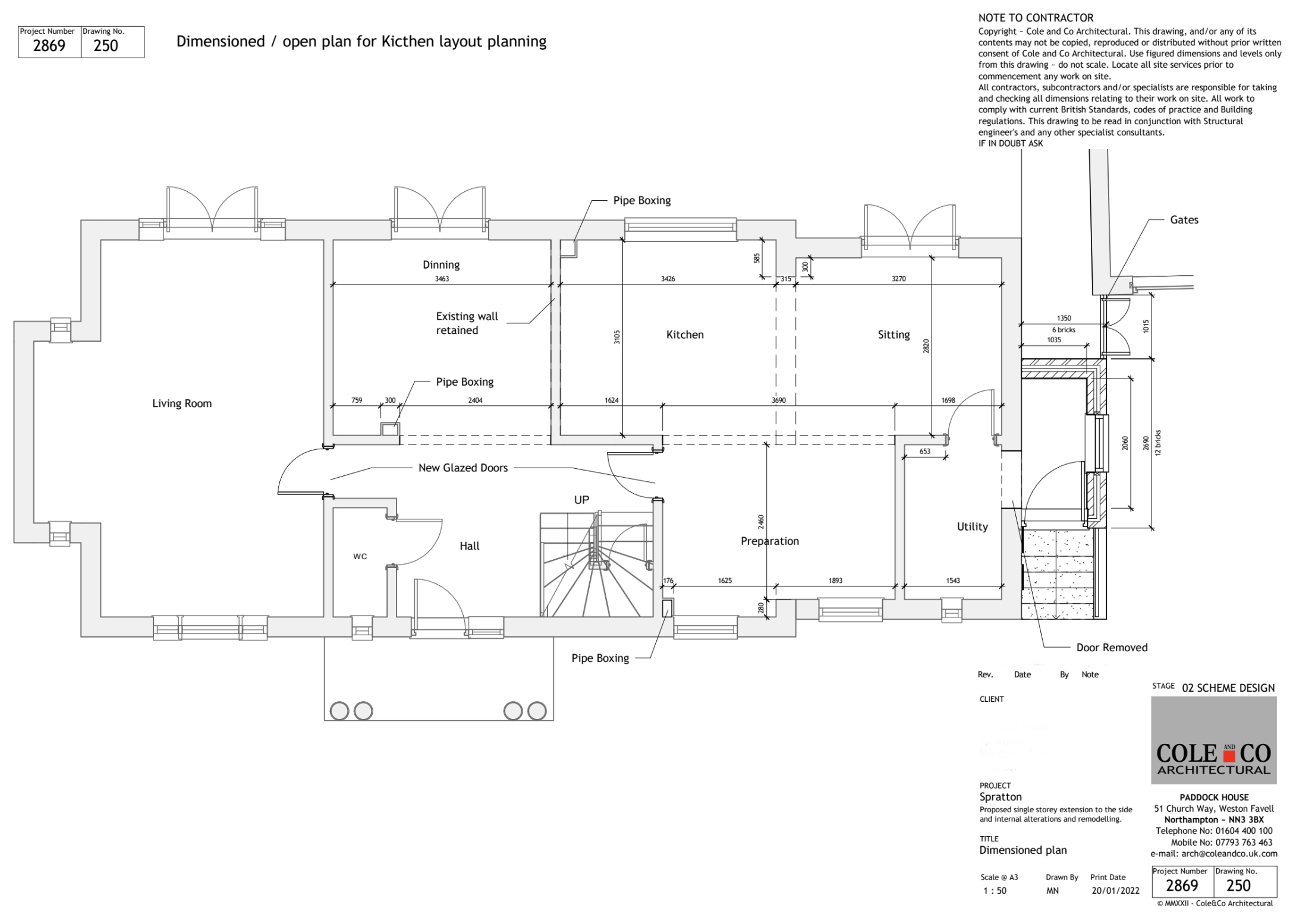

Proposed Plan

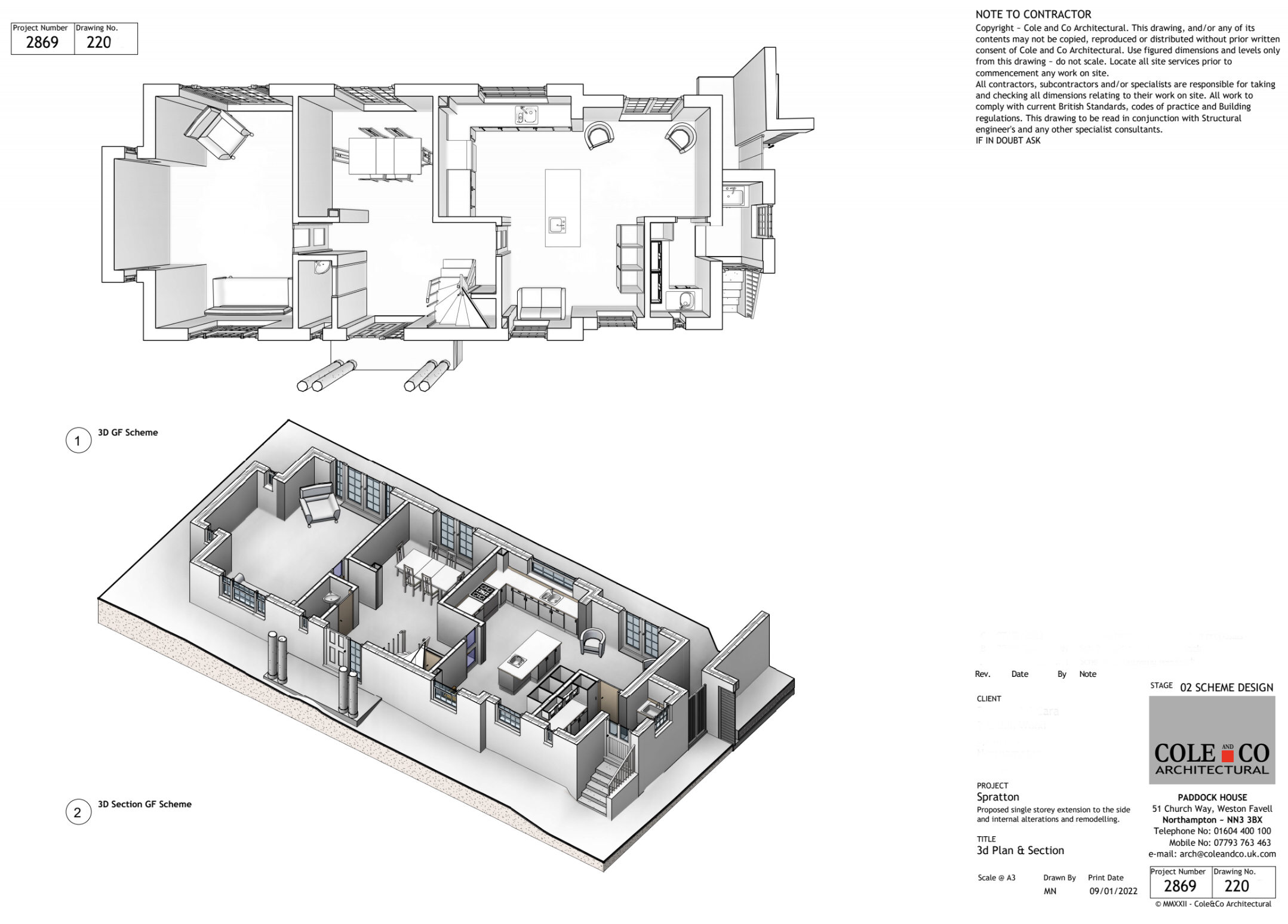

3D plan and section

Palm Cottage

Scheme proposal for a small Kitchen extension for an end of terrace property, was then developed, submitted for Planning Approval

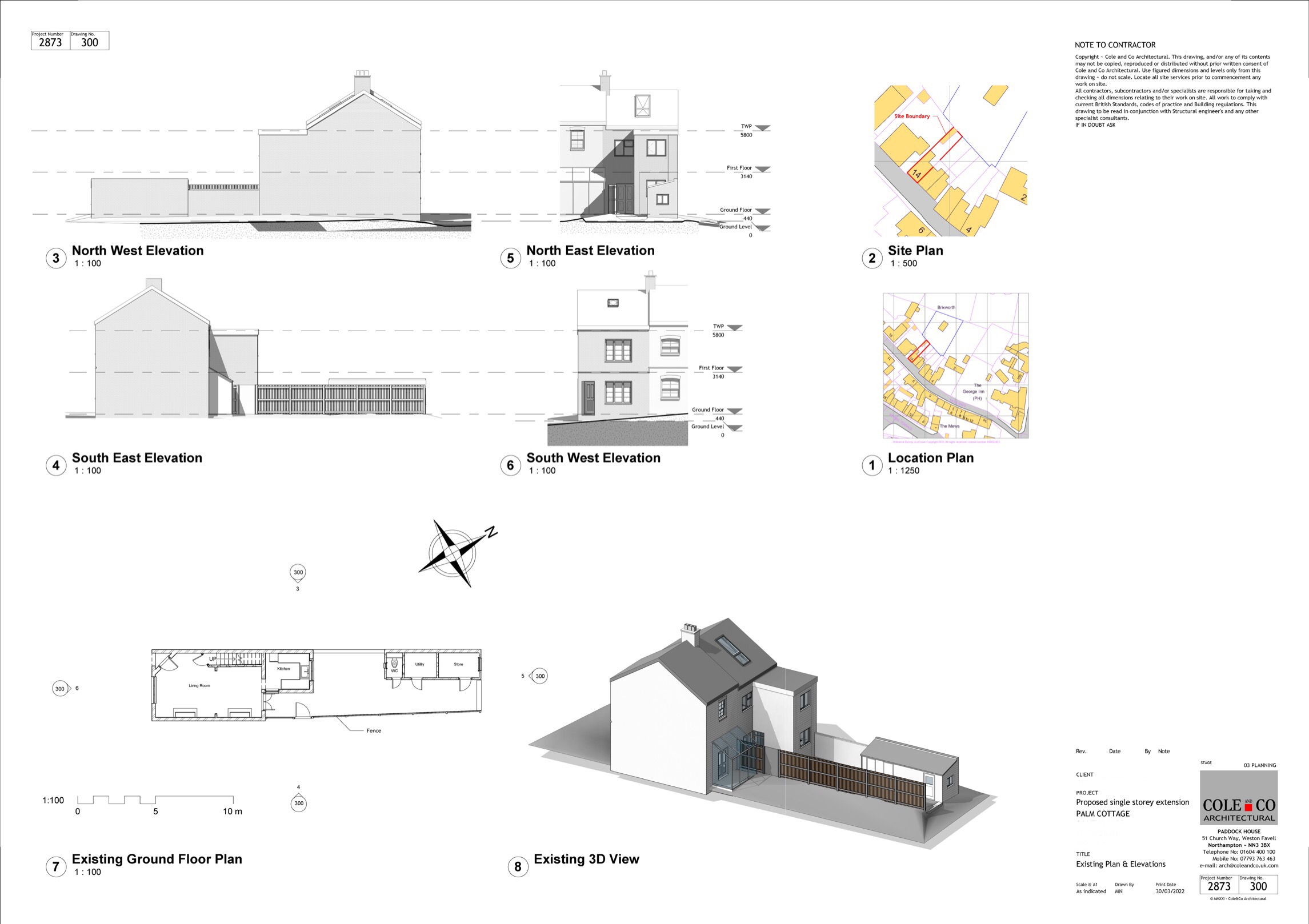

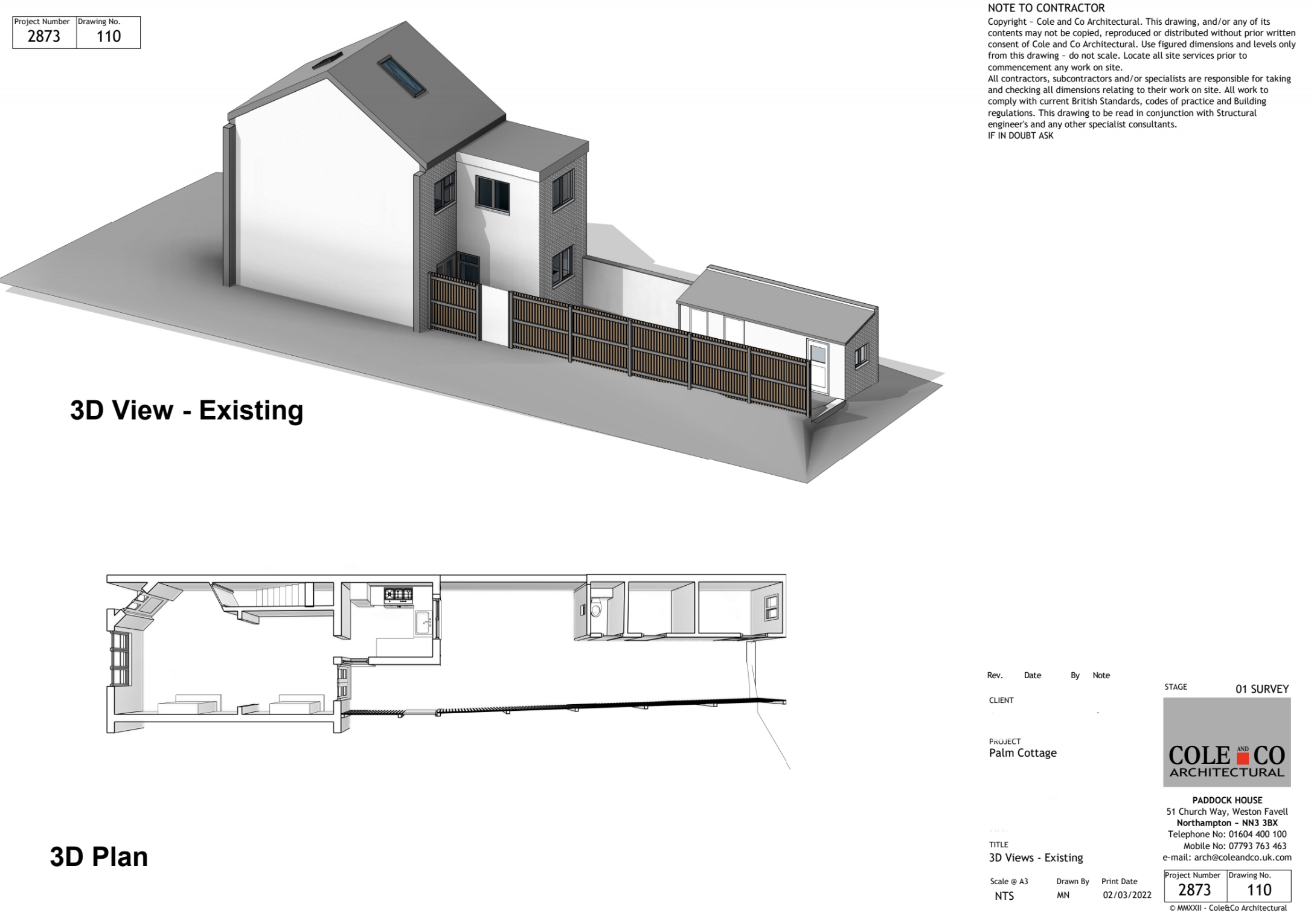

Existing 3D plan and exterior view

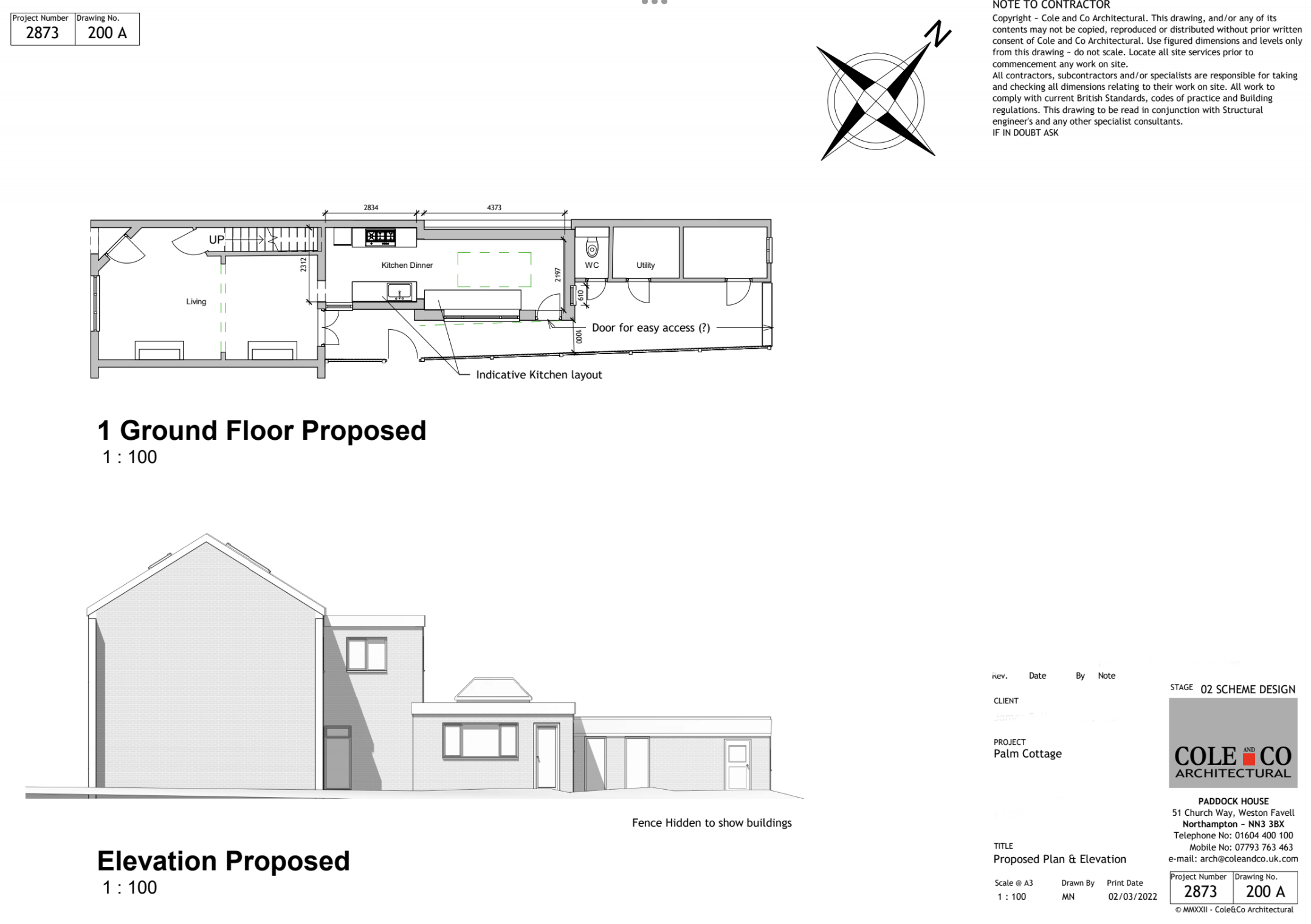

Proposed plan & elevation

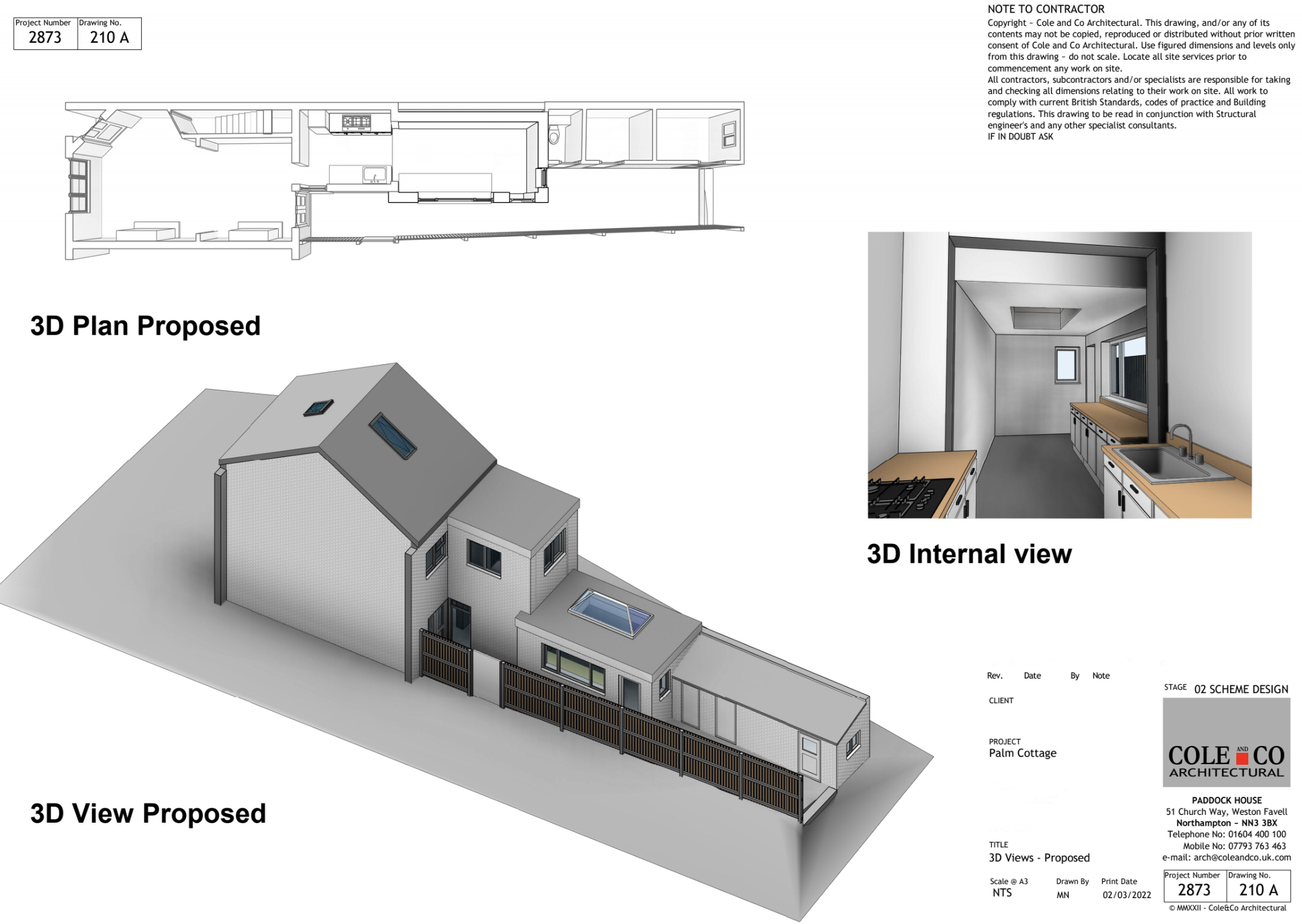

Proposed 3D plan and exterior view
Existing plan, elevations & 3d views for planning approval.

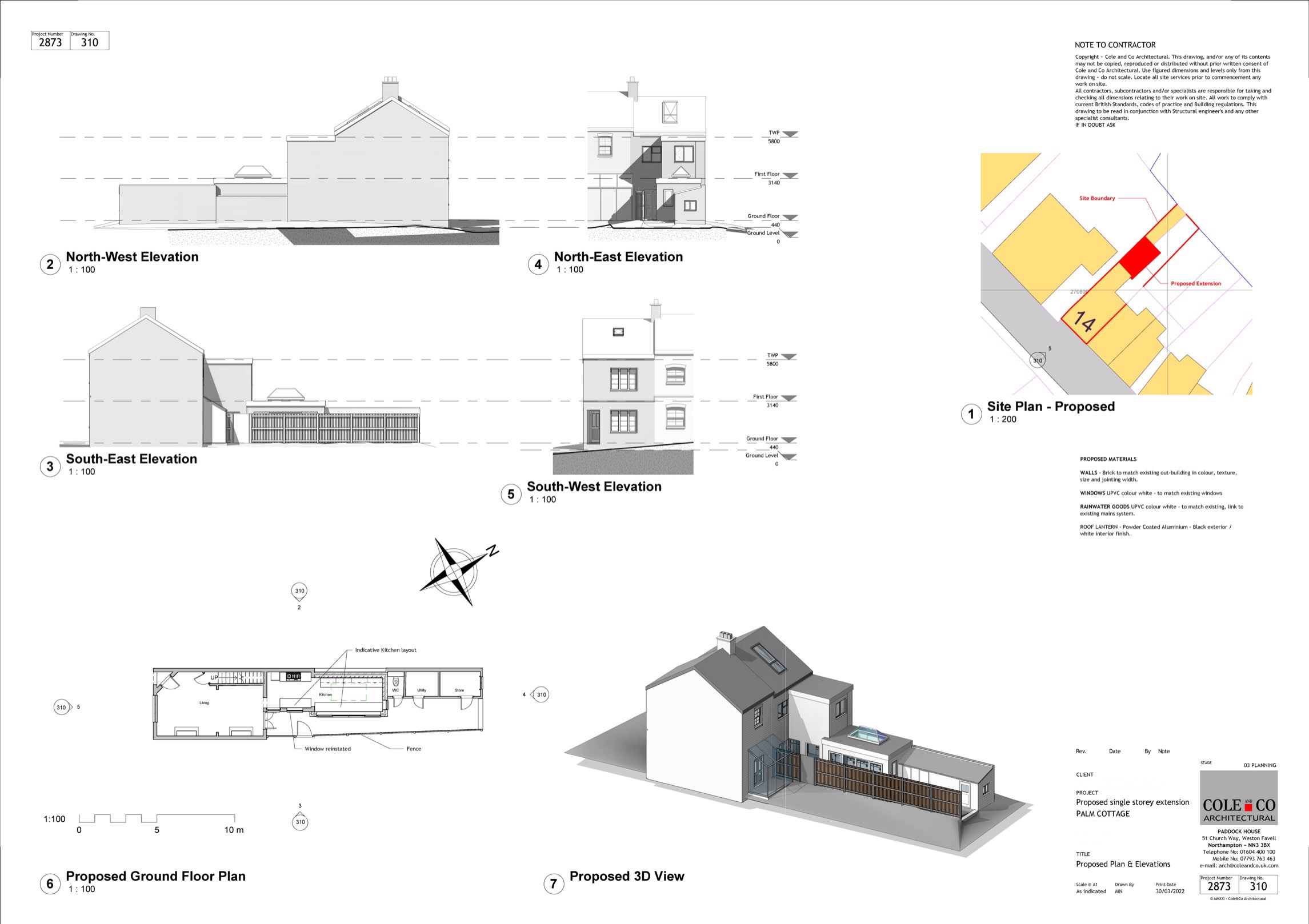

Proposed plan, elevations & 3d views for planning approval.

Penfold

Building Control submission for a rear single storey extension, based on approved plans.

Proposed plan
Proposed elevations

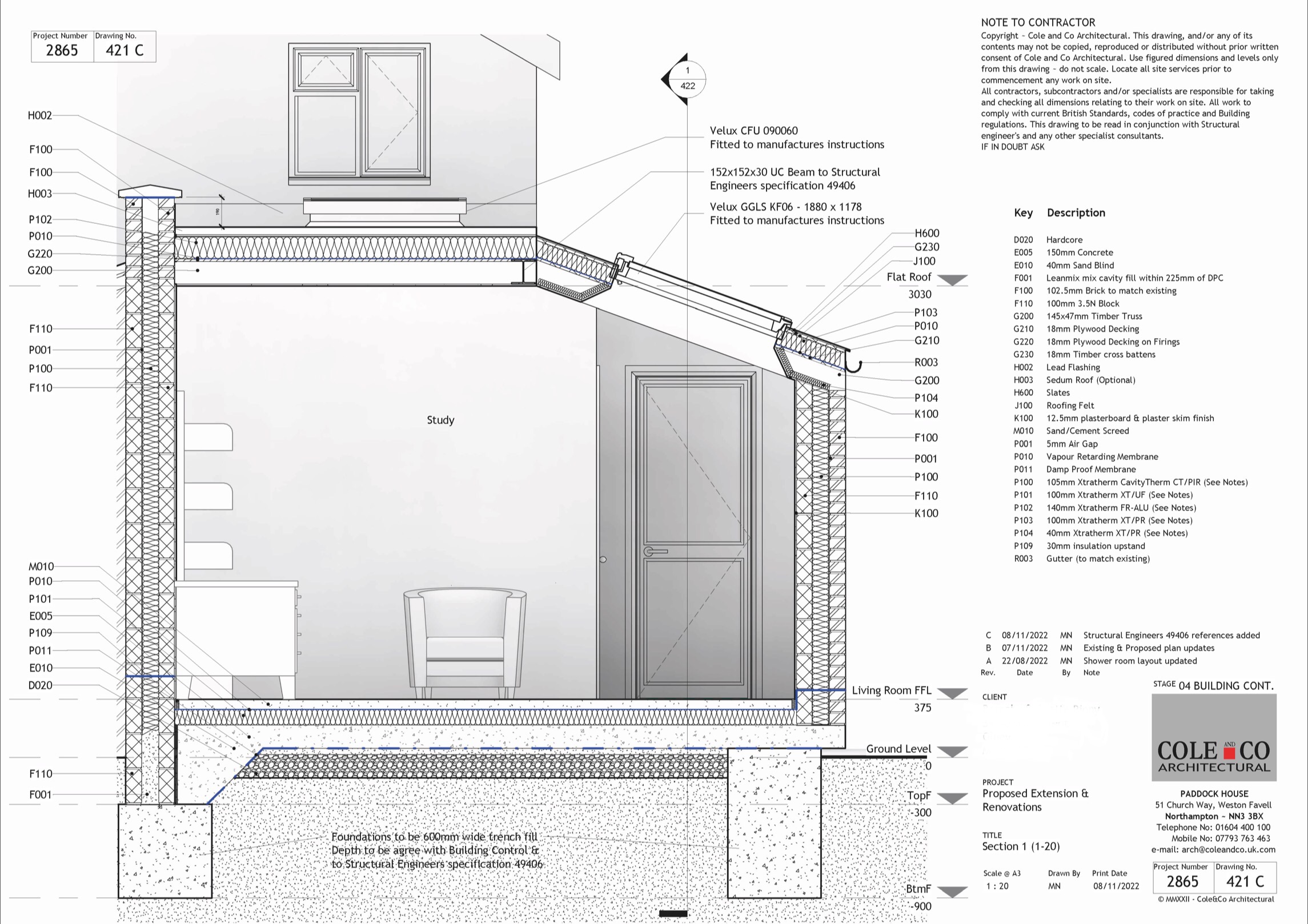

Section detail
Section detail
